2 . I n s t a l l a t i o n

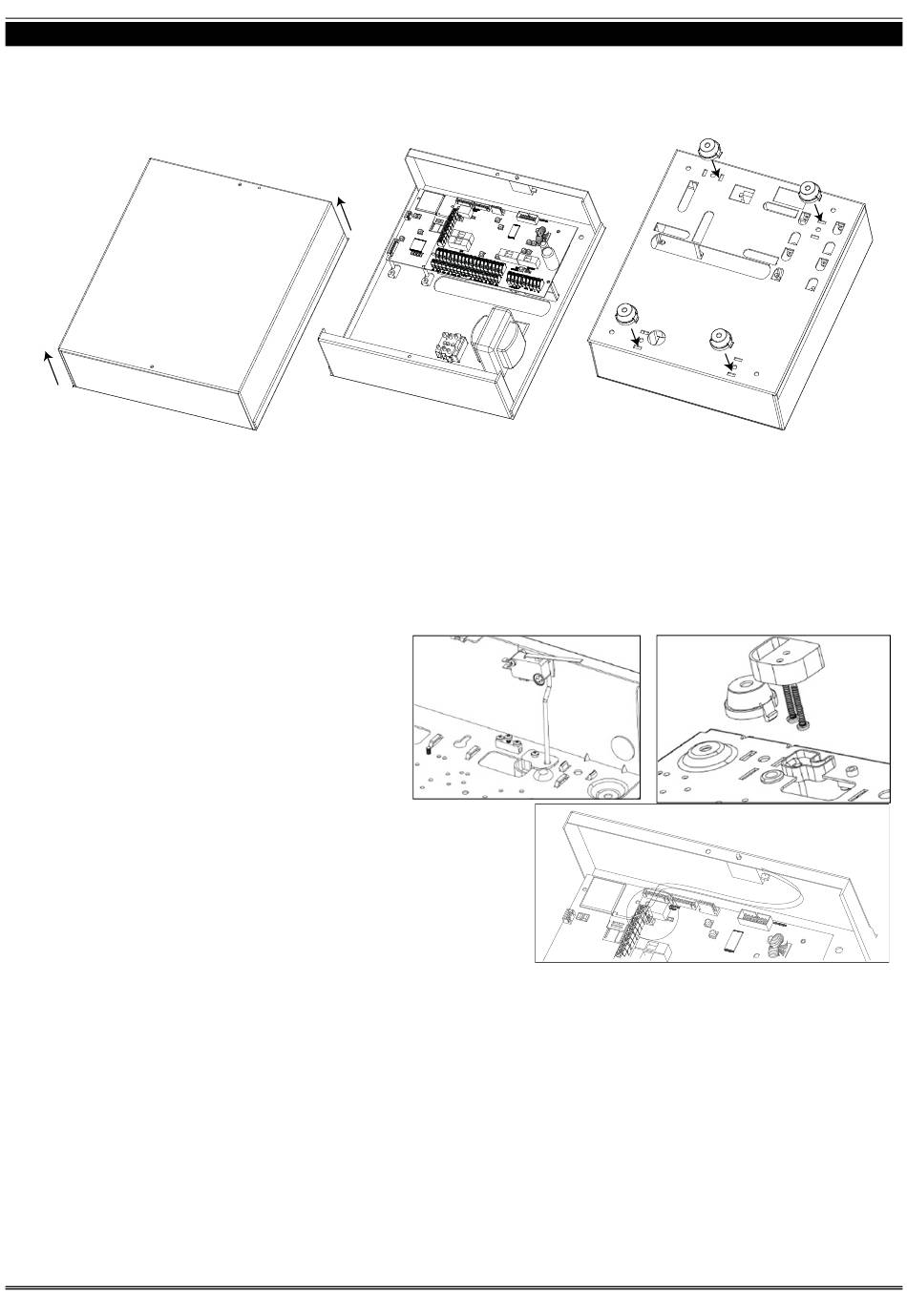

1. Unscrew and remove the cover of the EURO 46 (Figure 1).
2. Install the supplied stand offs if needed before you mount the metal case to the wall (Figure 3).
Figure 1.
3. If required, connect any other devices before powering up the system.
4. The modem is already connected. Wire the telephone line if the DIGI 1200 (PSTN modem) is
used. See page: 47.
5. Screw the back metal plate to the wall.
6. EURO 46 Large Box: The tamper mechanism comes already fitted and will operate properly
once the casing is fitted to the wall. If using the stand offs, the following will need to be used for
the rear tamper mechanism to work
correctly.
7. EURO 46 Small Box: The tamper mechanism
comes already fitted and will operate properly once
the casing is fitted to the wall. If using the stand
offs, the following will need to be used for the rear
tamper mechanism to work correctly.
8. Secure all the wires and close the enclosure making sure the tamper is operational
9. Turn on the power to the EURO 46.
