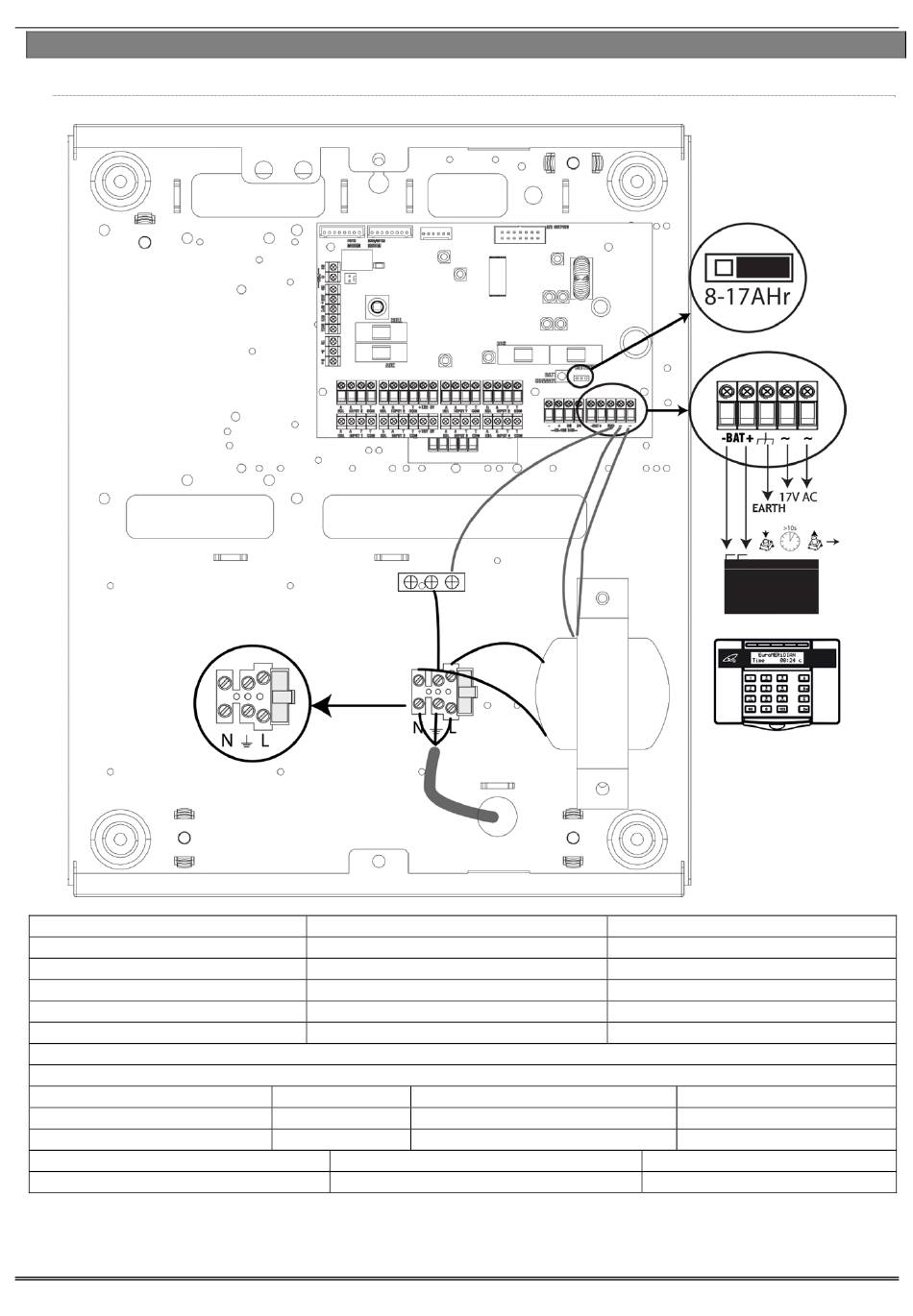

3.4 Power and Battery Connections

3.4.1 The EURO 46 Large (Grade 3)
Panel Power Supply Input
Mains Supply Voltage AC
Transformer Rating EURO 46L
Panel Power Supply Output
Output Voltage
Output Current EURO 46L
Power Supply Type A.
Battery Charging Specification
Float Voltage
Battery low voltage cut off
Recharge time
Fuses
230V Mains Fuse for mains terminals
NOTE: The battery connect button is only used if no mains is present and a battery power up is required.
EURO 46 Installation Manual
Nominal
230V AC at 50Hz
45VA
Nominal
13.7V DC
1.5A Continuous
13.8v DC Control Panel Type
10.5v Standby battery capacity current
<24 Hours Standby battery capacity current
Value
T500mA H anti-surge slow blow 250V
Page: 12
Range
-15% +10%
18.5V at 2.5A
Range
10-15V DC
2.0A peak, during battery charging
300mA (3A to 7A)
700mA (8A to 17A)
Type
Ceramic
