EURO 46 Installation Manual

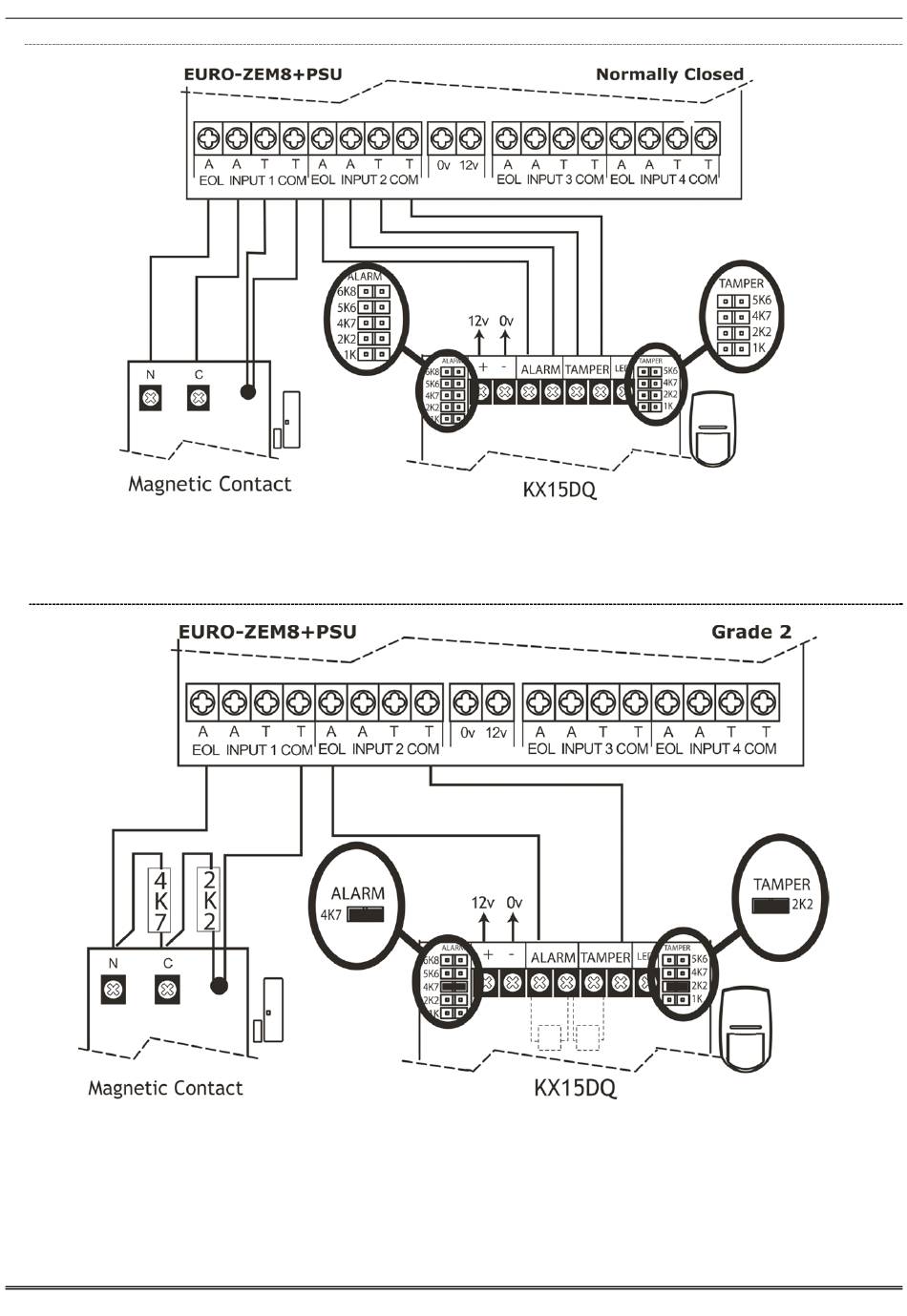

7.6.5 Wiring Inputs on the EURO-ZEM8+PSU (Normally Closed)
The above wiring example shows the normally closed connections for a KX15DQ PIR.
7.6.6 Wiring Inputs on the EURO-ZEM8+PSU (DEOL: Grade 2)
The above wiring example shows the connections for a Grade 2 KX15DQ PIR.
