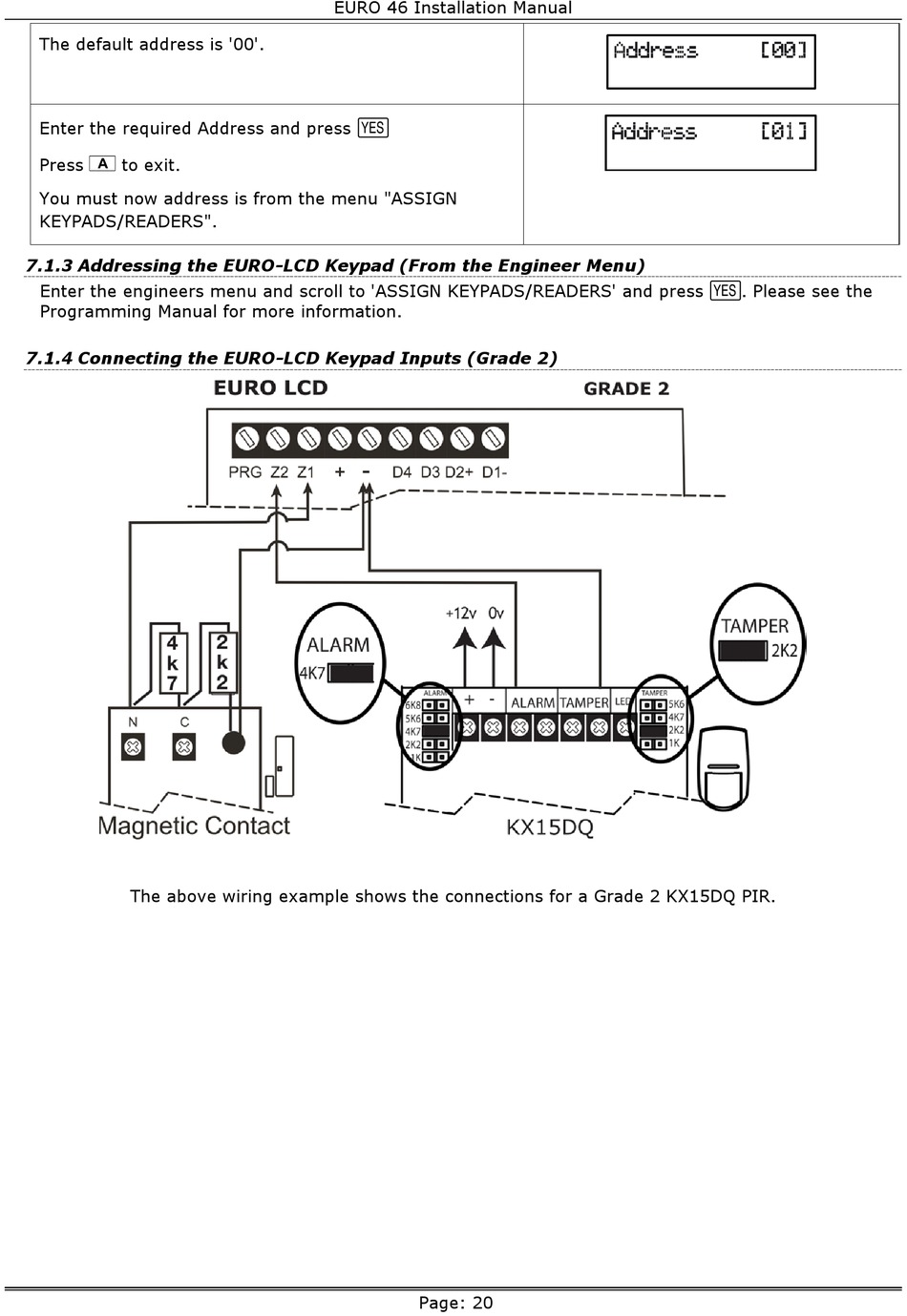

The default address is '00'.
Enter the required Address and press
Press a to exit.
You must now address is from the menu "ASSIGN
KEYPADS/READERS".
7.1.3 Addressing the EURO-LCD Keypad (From the Engineer Menu)
Enter the engineers menu and scroll to 'ASSIGN KEYPADS/READERS' and press . Please see the
Programming Manual for more information.
7.1.4 Connecting the EURO-LCD Keypad Inputs (Grade 2)
The above wiring example shows the connections for a Grade 2 KX15DQ PIR.
EURO 46 Installation Manual
Page: 20
