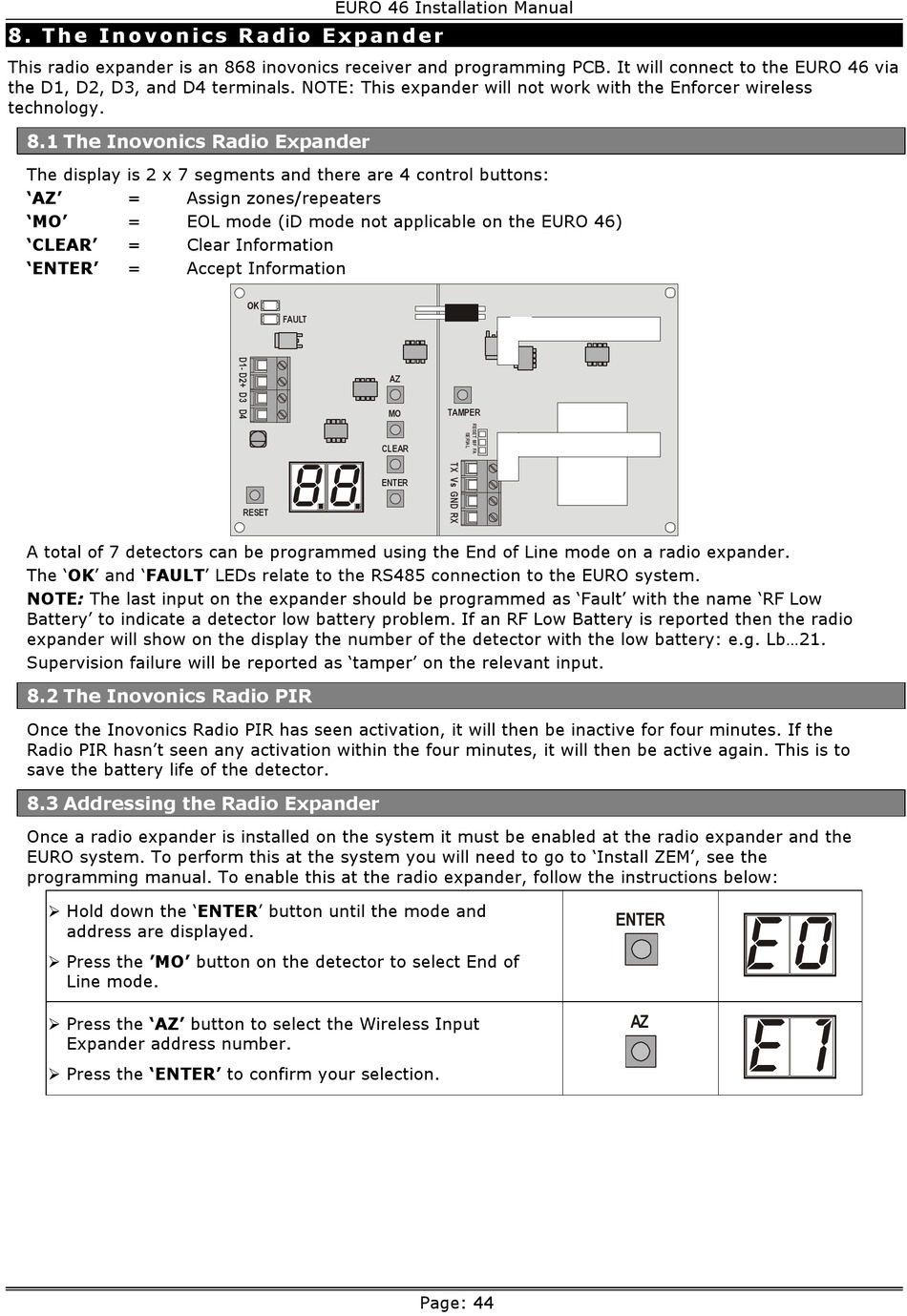

8 . T h e I n o v o n i c s R a d i o E x p a n d e r
This radio expander is an 868 inovonics receiver and programming PCB. It will connect to the EURO 46 via
the D1, D2, D3, and D4 terminals. NOTE: This expander will not work with the Enforcer wireless
technology.

8.1 The Inovonics Radio Expander

The display is 2 x 7 segments and there are 4 control buttons:
'AZ' =
'MO' =
'CLEAR' =
'ENTER' =
A total of 7 detectors can be programmed using the End of Line mode on a radio expander.
The 'OK' and 'FAULT' LEDs relate to the RS485 connection to the EURO system.
NOTE: The last input on the expander should be programmed as 'Fault' with the name 'RF Low
Battery' to indicate a detector low battery problem. If an RF Low Battery is reported then the radio
expander will show on the display the number of the detector with the low battery: e.g. Lb...21.
Supervision failure will be reported as 'tamper' on the relevant input.

8.2 The Inovonics Radio PIR

Once the Inovonics Radio PIR has seen activation, it will then be inactive for four minutes. If the
Radio PIR hasn't seen any activation within the four minutes, it will then be active again. This is to
save the battery life of the detector.

8.3 Addressing the Radio Expander

Once a radio expander is installed on the system it must be enabled at the radio expander and the
EURO system. To perform this at the system you will need to go to 'Install ZEM', see the
programming manual. To enable this at the radio expander, follow the instructions below:
 Hold down the 'ENTER' button until the mode and
address are displayed.
 Press the 'MO' button on the detector to select End of
Line mode.
 Press the 'AZ' button to select the Wireless Input
Expander address number.
 Press the 'ENTER' to confirm your selection.
EURO 46 Installation Manual
Assign zones/repeaters
EOL mode (iD mode not applicable on the EURO 46)
Clear Information
Accept Information
FAULT
8 8
RESET
AZ
TAMPER
MO
CLEAR
ENTER
Page: 44
E
ENTER
1 E
AZ
0
