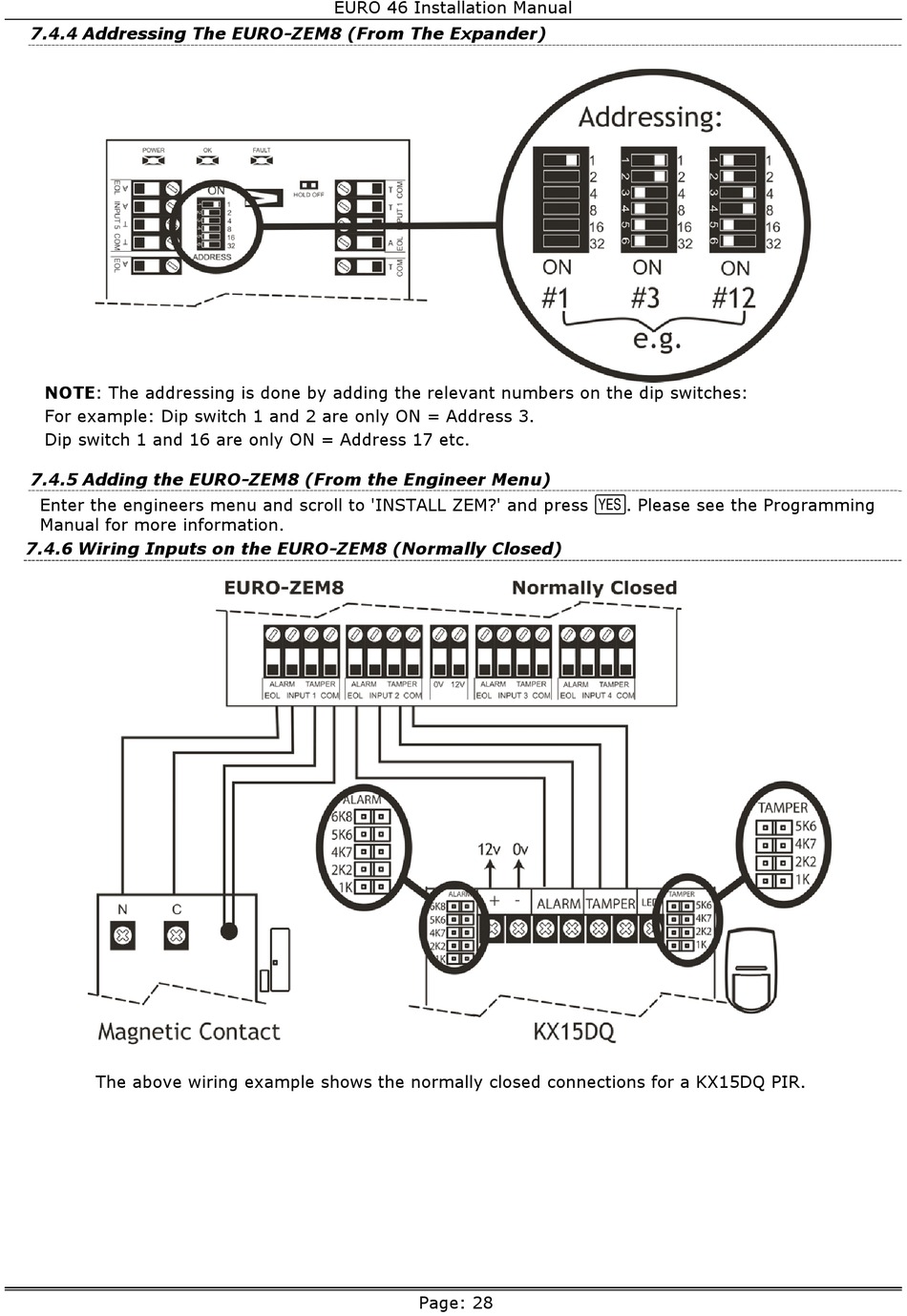

7.4.4 Addressing The EURO-ZEM8 (From The Expander)
NOTE: The addressing is done by adding the relevant numbers on the dip switches:
For example: Dip switch 1 and 2 are only ON = Address 3.
Dip switch 1 and 16 are only ON = Address 17 etc.
7.4.5 Adding the EURO-ZEM8 (From the Engineer Menu)
Enter the engineers menu and scroll to 'INSTALL ZEM?' and press . Please see the Programming
Manual for more information.
7.4.6 Wiring Inputs on the EURO-ZEM8 (Normally Closed)
The above wiring example shows the normally closed connections for a KX15DQ PIR.
