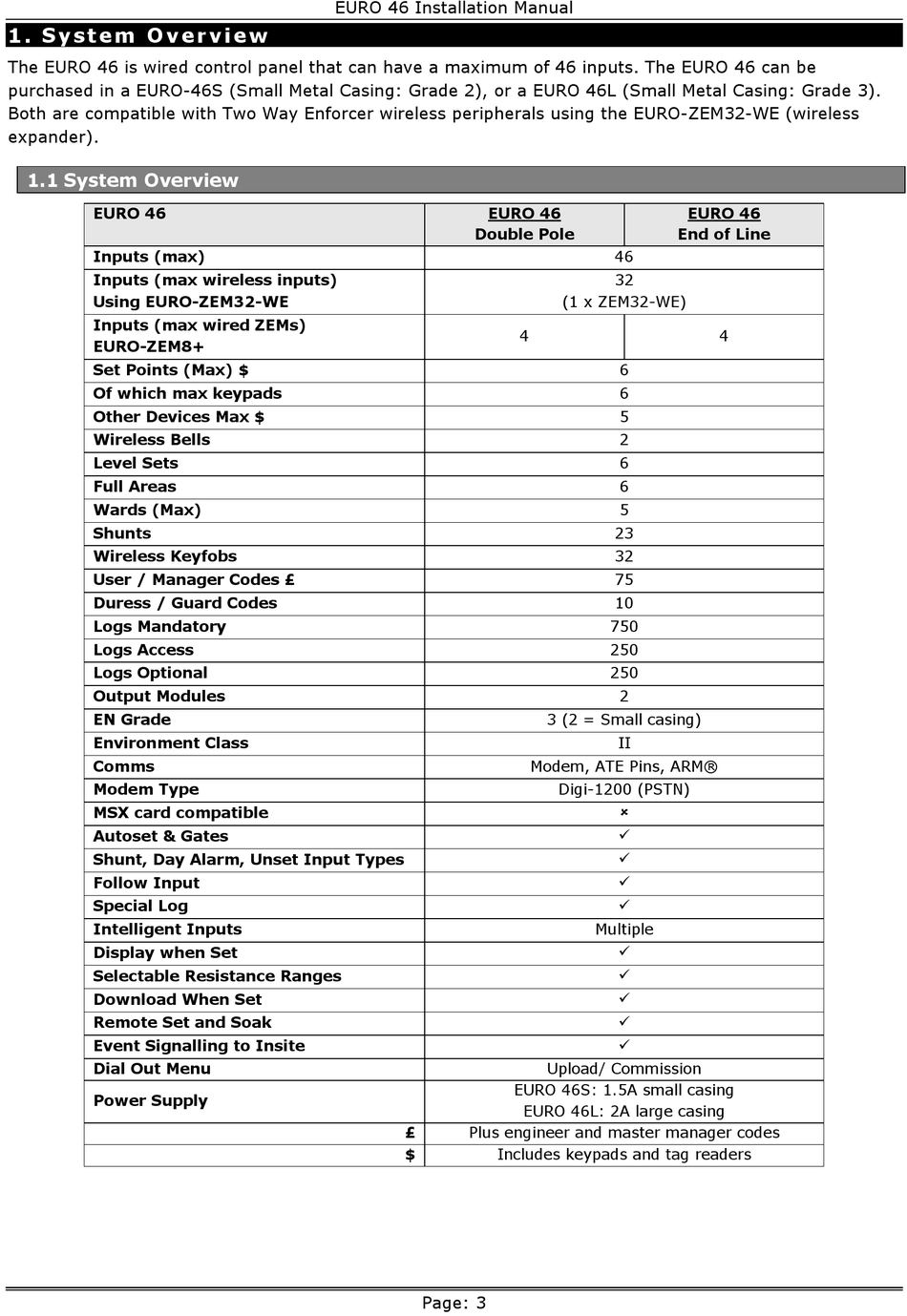

1 . S y s t e m O v e r v i e w
The EURO 46 is wired control panel that can have a maximum of 46 inputs. The EURO 46 can be
purchased in a EURO-46S (Small Metal Casing: Grade 2), or a EURO 46L (Small Metal Casing: Grade 3).
Both are compatible with Two Way Enforcer wireless peripherals using the EURO-ZEM32-WE (wireless
expander).

1.1 System Overview

EURO 46
Inputs (max)
Inputs (max wireless inputs)
Using EURO-ZEM32-WE
Inputs (max wired ZEMs)
EURO-ZEM8+
Set Points (Max) $
Of which max keypads
Other Devices Max $
Wireless Bells
Level Sets
Full Areas
Wards (Max)
Shunts
Wireless Keyfobs
User / Manager Codes £
Duress / Guard Codes
Logs Mandatory
Logs Access
Logs Optional
Output Modules
EN Grade
Environment Class
Comms
Modem Type
MSX card compatible
Autoset & Gates
Shunt, Day Alarm, Unset Input Types
Follow Input
Special Log
Intelligent Inputs
Display when Set
Selectable Resistance Ranges
Download When Set
Remote Set and Soak
Event Signalling to Insite
Dial Out Menu
Power Supply
EURO 46 Installation Manual
EURO 46
Double Pole
£ Plus engineer and master manager codes
$ Includes keypads and tag readers
Page: 3
End of Line
46
32
(1 x ZEM32-WE)
4
6
6
5
2
6
6
5
23
32
75
10
750
250
250
2
3 (2 = Small casing)
II
Modem, ATE Pins, ARM®
Digi-1200 (PSTN)





Multiple





Upload/ Commission
EURO 46S: 1.5A small casing
EURO 46L: 2A large casing
EURO 46
4
