Output (Pgm) Connections; Negative Applied Wiring; Xpgm Connections - Pyronix Castle EURO 46S Installation Reference

5 . O u t p u t ( P G M ) C o n n e c t i o n s

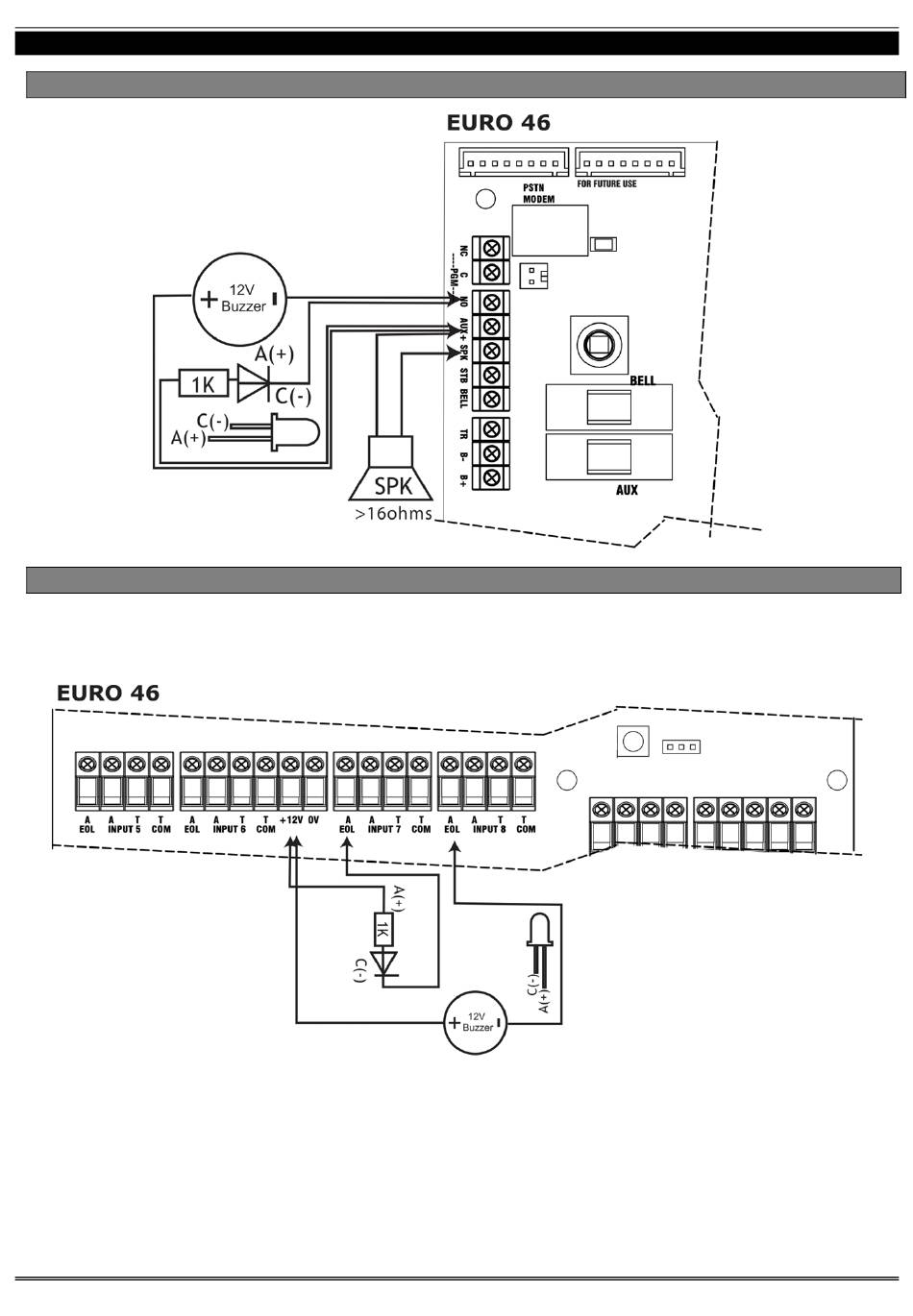

5.1 Negative Applied Wiring

Normal State: NC
Active State: 0V
Relay Rated at 2A

5.2 XPGM Connections

If Inputs 7 and 8 are programmed as 'unused', these inputs can be used as 2 further outputs (known
as XPGM1 and XPGM2 which can be programmed in the Engineer menu 'CHANGE OUTPUTS').
