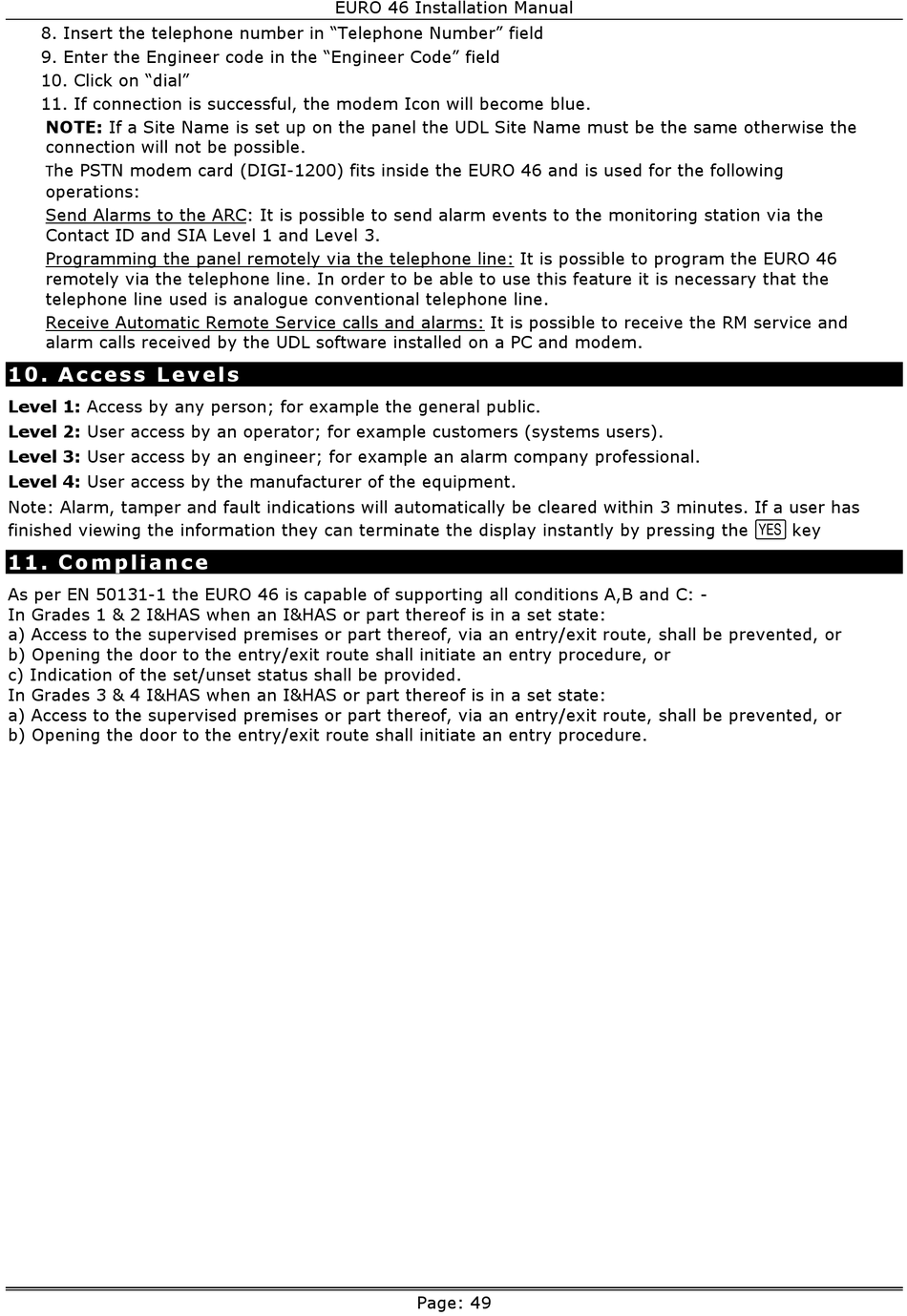

Access Levels; Compliance - Pyronix Castle EURO 46S Installation Reference

8. Insert the telephone number in "Telephone Number" field
9. Enter the Engineer code in the "Engineer Code" field
10. Click on "dial"
11. If connection is successful, the modem Icon will become blue.
NOTE: If a Site Name is set up on the panel the UDL Site Name must be the same otherwise the
connection will not be possible.
The PSTN modem card (DIGI-1200) fits inside the EURO 46 and is used for the following
operations:
Send Alarms to the ARC: It is possible to send alarm events to the monitoring station via the
Contact ID and SIA Level 1 and Level 3.
Programming the panel remotely via the telephone line: It is possible to program the EURO 46
remotely via the telephone line. In order to be able to use this feature it is necessary that the
telephone line used is analogue conventional telephone line.
Receive Automatic Remote Service calls and alarms: It is possible to receive the RM service and
alarm calls received by the UDL software installed on a PC and modem.
1 0 . A c c e s s L e v e l s
Level 1: Access by any person; for example the general public.
Level 2: User access by an operator; for example customers (systems users).
Level 3: User access by an engineer; for example an alarm company professional.
Level 4: User access by the manufacturer of the equipment.
Note: Alarm, tamper and fault indications will automatically be cleared within 3 minutes. If a user has
finished viewing the information they can terminate the display instantly by pressing the  key
1 1 . C o m p l i a n c e
As per EN 50131-1 the EURO 46 is capable of supporting all conditions A,B and C: -
In Grades 1 & 2 I&HAS when an I&HAS or part thereof is in a set state:
a) Access to the supervised premises or part thereof, via an entry/exit route, shall be prevented, or
b) Opening the door to the entry/exit route shall initiate an entry procedure, or
c) Indication of the set/unset status shall be provided.
In Grades 3 & 4 I&HAS when an I&HAS or part thereof is in a set state:
a) Access to the supervised premises or part thereof, via an entry/exit route, shall be prevented, or
b) Opening the door to the entry/exit route shall initiate an entry procedure.
EURO 46 Installation Manual
Page: 49
