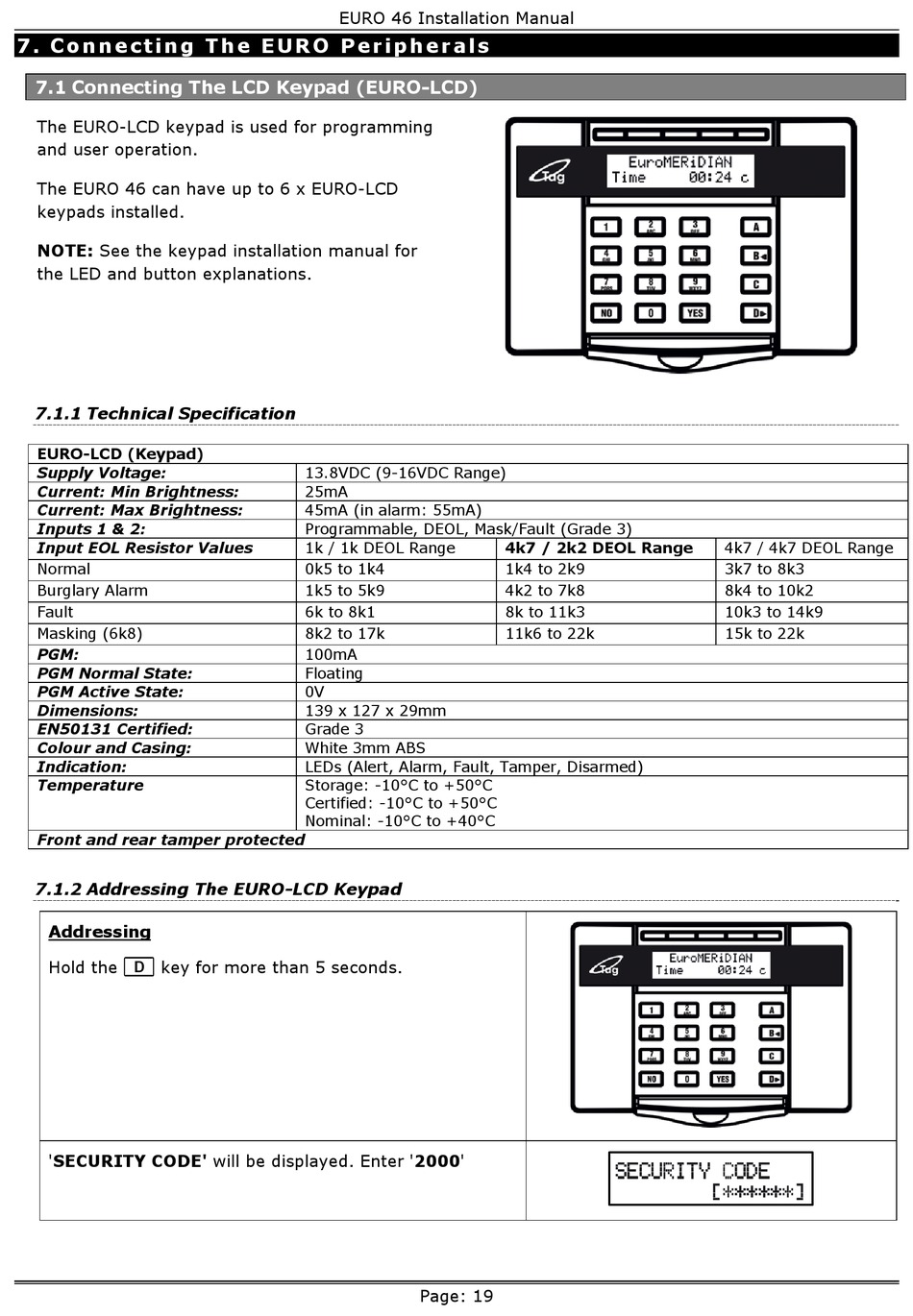

7 . C o n n e c t i n g T h e E U R O P e r i p h e r a l s

7.1 Connecting The LCD Keypad (EURO-LCD)

The EURO-LCD keypad is used for programming
and user operation.
The EURO 46 can have up to 6 x EURO-LCD
keypads installed.
NOTE: See the keypad installation manual for
the LED and button explanations.
7.1.1 Technical Specification
EURO-LCD (Keypad)
Supply Voltage:
Current: Min Brightness:
Current: Max Brightness:
Inputs 1 & 2:
Input EOL Resistor Values
Normal
Burglary Alarm
Fault
Masking (6k8)
PGM:
PGM Normal State:
PGM Active State:
Dimensions:
EN50131 Certified:
Colour and Casing:
Indication:
Temperature
Front and rear tamper protected
7.1.2 Addressing The EURO-LCD Keypad
Addressing
Hold the  key for more than 5 seconds.
'SECURITY CODE' will be displayed. Enter '2000'
EURO 46 Installation Manual
13.8VDC (9-16VDC Range)
25mA
45mA (in alarm: 55mA)
Programmable, DEOL, Mask/Fault (Grade 3)
1k / 1k DEOL Range
0k5 to 1k4
1k5 to 5k9
6k to 8k1
8k2 to 17k
100mA
Floating
0V
139 x 127 x 29mm
Grade 3
White 3mm ABS
LEDs (Alert, Alarm, Fault, Tamper, Disarmed)
Storage: -10°C to +50°C
Certified: -10°C to +50°C
Nominal: -10°C to +40°C
Page: 19
