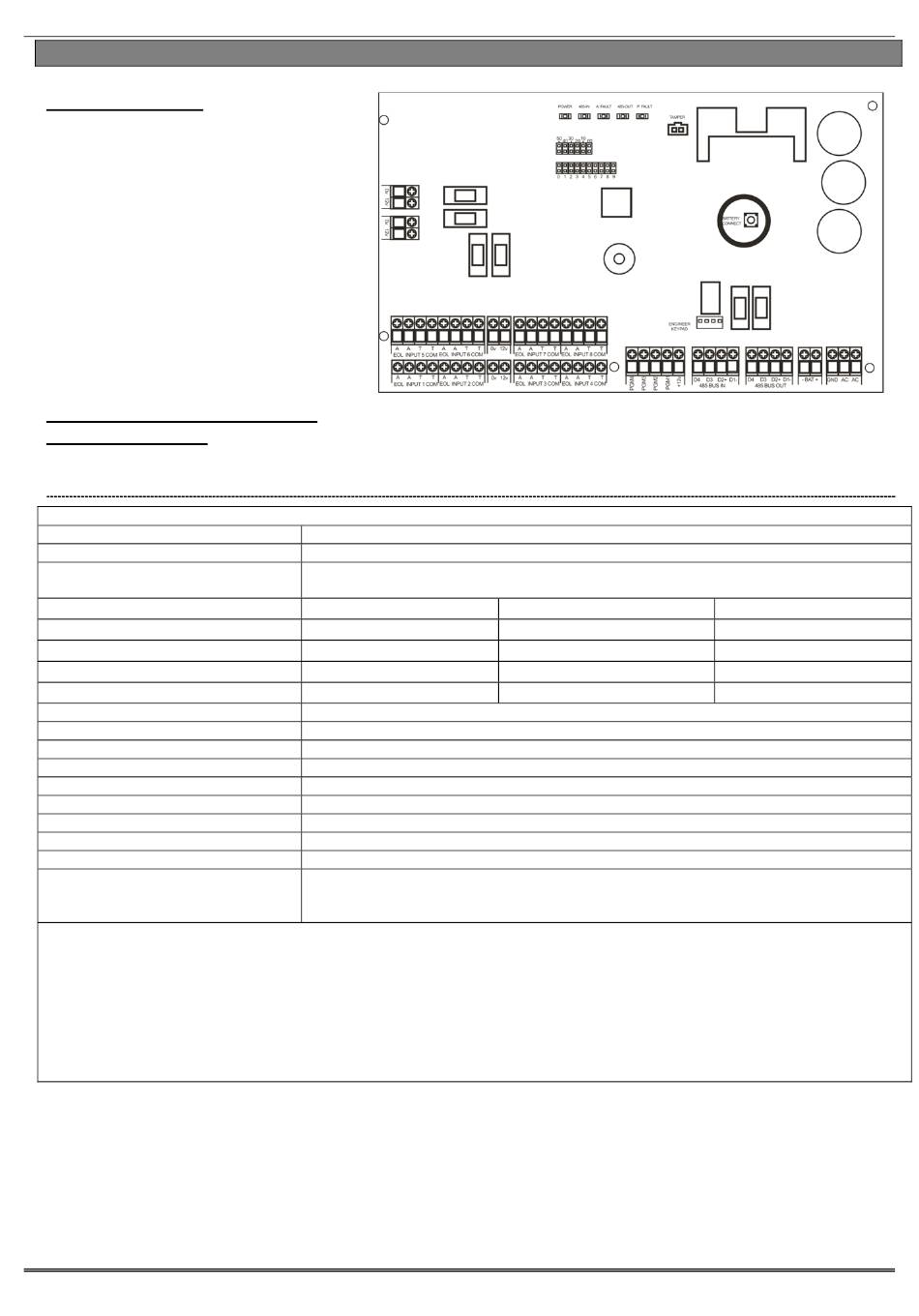

7.6 Connecting The Zone Expander Module with PSU (EURO-ZEM8+PSU)

EURO-ZEM8+PSU
The EURO-ZEM8+ is an input
expander that supports 8 inputs and
4 PGMs and has a built in 2.5 power
supply.
It also supports NC (normally
closed), DEOL input and Mask/Fault
(Grade 3) configurations.
The EURO 46 will support up to 4 x
Remote Inputs Expanders. Please
see page: 4.
NOTE: The D2+ terminal must
not be connected.
7.6.1 EURO-ZEM8+PSU Technical Specification
EURO-ZEM8+PSU (Input Expander with Power Supply)
Input Voltage
Current Consumption
Inputs
Input EOL Resistor Values
Normal
Burglary Alarm
Fault
Masking (6k8)
PGM1 - PGM4
PGM1 - PGM4
PGM1 - PGM4
Power Supply Rating
Transformer Rating
Dimensions (metal box)
Dimensions (PCB)
Colour and Casing
Indication
Temperature
EN50131 Certified Grade 3
Front and rear tamper protected with one tamper switch
PD6662:2010 Installations – Back up battery time = 12hrs providing that a mains fail signal is reported to the ARC.
A 17Ah battery will support a maximum load of 1350mA for a period of 12 hours.
EN50131-1:2006+A1:2009 Installations - Back up battery time = 30hrs providing that a mains fail signal is reported
to the ARC.
A 17Ah battery will support a maximum load of 497mA for a period of 30 hours. Installations which are not
supported by an ARC mains fail reported signal = 60 hours. A 17Ah battery will support a maximum load of 248mA
for a period of 60 hours.
EURO 46 Installation Manual
9-15V
65mA
Programmable
NC, DEOL, Mask/Fault (Grade 3)
1k / 1k DEOL Range
0k5 to 1k4
1k5 to 5k9
6k to 8k1
8k2 to 17k
100mA each
Normal state: 12V
Active state: 0V
2.0A continued and 2.5A in peak when charging battery
44VA
390 x 305 x 100mm
215 x 125 x 65mm
White metal casing
LEDs (Power, RS485 In, A-Fault, RS485 Out, P-Fault)
Storage: -20°C to +60°C
Certified: -10°C to +40°C
Nominal: -10°C to +50°C
Page: 34
4k7 / 2k2 DEOL Range
1k4 to 2k9
4k2 to 7k8
8k to 11k3
11k6 to 22k
4k7 / 4k7 DEOL Range
3k7 to 8k3
8k4 to 10k2
10k3 to 14k9
15k to 22k
