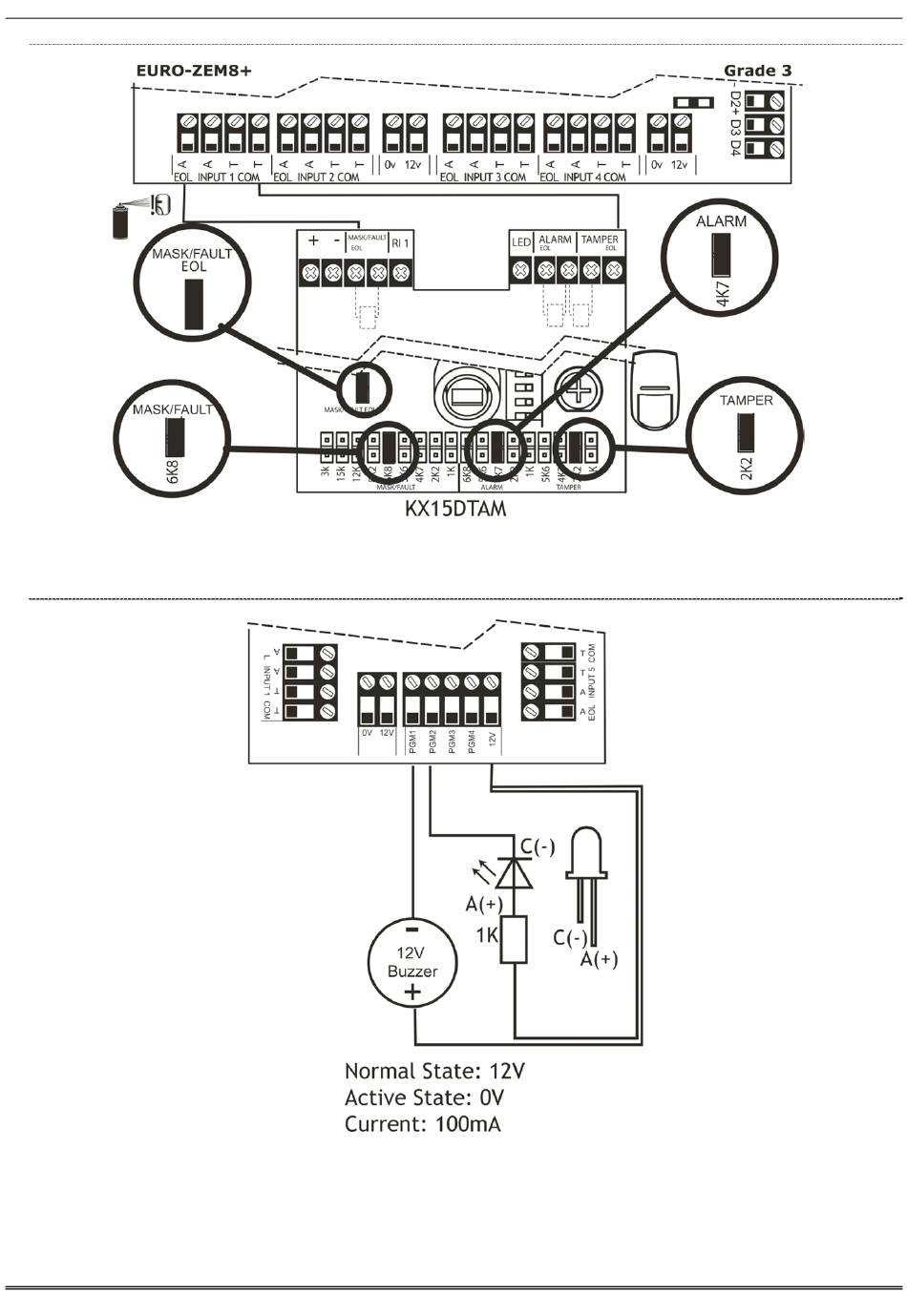

7.5.7 Wiring Inputs on the EURO-ZEM8+ (Mask/Fault - Grade 3)
The above wiring example shows the connections for a Grade 3 KX15DTAM PIR.
7.5.8 Output Wiring on the EURO-ZEM8+
EURO 46 Installation Manual
Page: 33
Normal State: 12V
Active State: 0V
Max Current: 100mA
