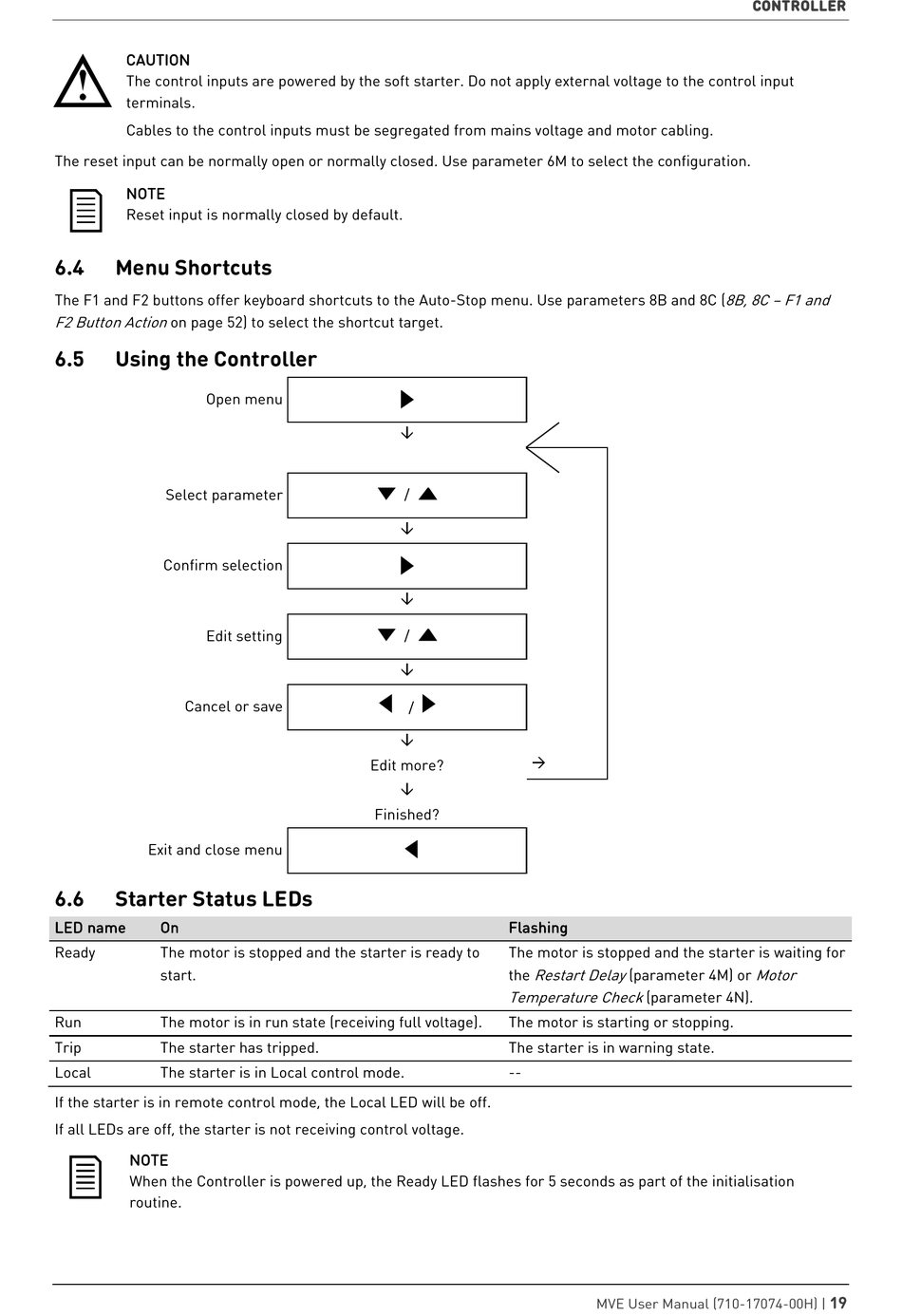

CAUTION
The control inputs are powered by the soft starter. Do not apply external voltage to the control input
terminals.
Cables to the control inputs must be segregated from mains voltage and motor cabling.
The reset input can be normally open or normally closed. Use parameter 6M to select the configuration.
NOTE
Reset input is normally closed by default.
6.4

Menu Shortcuts

The F1 and F2 buttons offer keyboard shortcuts to the Auto-Stop menu. Use parameters 8B and 8C (
F2 Button Action
on page 52) to select the shortcut target.
6.5

Using the Controller

Open menu
Select parameter
Confirm selection
Edit setting
Cancel or save
Exit and close menu
6.6

Starter Status LEDs

LED name On
Ready The motor is stopped and the starter is ready to
start.
Run The motor is in run state (receiving full voltage).
Trip The starter has tripped.
Local The starter is in Local control mode.
If the starter is in remote control mode, the Local LED will be off.
If all LEDs are off, the starter is not receiving control voltage.
NOTE
When the Controller is powered up, the Ready LED flashes for 5 seconds as part of the initialisation
routine.

/


/

/

Edit more? 

Finished?
Flashing
The motor is stopped and the starter is waiting for
Restart Delay
the
Temperature Check
The motor is starting or stopping.
The starter is in warning state.
--
CONTROLLER
8B, 8C – F1 and
Motor
(parameter 4M) or
(parameter 4N).
MVE User Manual (710-17074-00H) |
19
