USER MANUAL

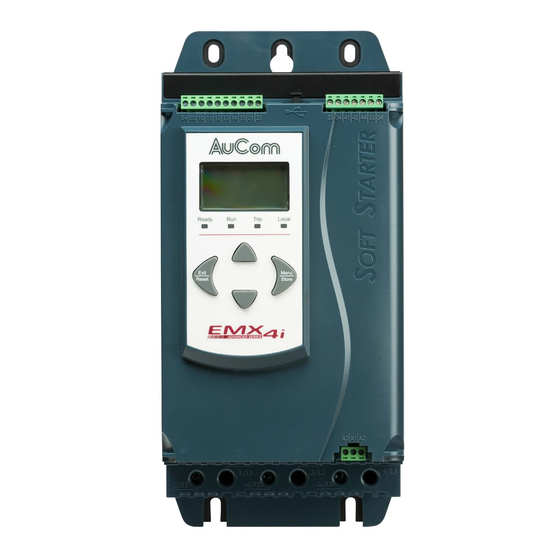

EMX4i Soft Starter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EMX4i and is the answer not in the manual?

Questions and answers

Related Manuals for AuCom EMX4i

Summary of Contents for AuCom EMX4i

  • Page 1 USER MANUAL EMX4i Soft Starter...

  • Page 2: Table Of Contents

    Set Date and Time ........34 Adjustment Lock ......... 61 Command Source ........34 Parameter List ..........62 Commissioning ........... 34 1 Motor Details ..........70 Run simulation ..........35 2 Motor Start/Stop ........71 Load/Save Settings ........36 710-14888-00C EMX4i User Manual...
  • Page 3 10.1 Smart Card - Pump Control and Protection ..........108 10.2 Smart Card - Level Controlled Pump Activation ........... 110 11. Troubleshooting ........112 11.1 Protection Responses ......112 11.2 Trip Messages ........... 112 11.3 General Faults .......... 121 EMX4i User Manual 710-14888-00C...

  • Page 4: About This Manual

    © 2018 AuCom Electronics Ltd. All Rights Reserved. As AuCom is continuously improving its products it reserves the right to modify or change the specification of its products at any time without notice. The text, diagrams, images and any other literary or artistic works appearing in this document are protected by copyright.

  • Page 5: Caution Statements

    NOTE The EMX4i is not user serviceable. The unit should only be serviced by authorised service personnel. Unauthorised tampering with the unit will void the product warranty.

  • Page 6: Unexpected Operation

    CAUTION STATEMENTS GROUNDING AND BRANCH CIRCUIT PROTECTION It is the responsibility of the user or person installing the EMX4i to provide proper grounding and branch circuit protection according to local electrical safety codes. 2.2 Unexpected Operation WARNING – ACCIDENTAL STARTS In some installations, accidental starts may pose an increased risk to safety of personnel or damage to the machines being driven.

  • Page 7: Avertissements À L'attention Des Clients Canadiens

    Dans de tels cas, il est recommandé de doter l'alimentation du démarreur progressif d'un interrupteur d'isolement et d'un coupe-circuit (par exemple, un disjoncteur) contrôlable à partir d'un système de sécurité externe (par exemple, un arrêt d'urgence, un détecteur de défaut). EMX4i User Manual 710-14888-00C...
  • Page 8 AVERTISSEMENT Toujours appliquer la tension de commande avant (ou en même temps que) la tension secteur. AVERTISSEMENT Lors du raccordement de l’EMX4i en connexion 6 fils, toujours installer un contacteur principal ou un disjoncteur magnéto-thermique à bobine de déclenchement. AVERTISSEMENT Si l'entrée de démarrage est fermée lorsque la tension de commande est...

  • Page 9: System Design

    • Remote control inputs applications (2 x fixed, 2 x programmable) • Smart cards • Relay outputs • Communication options: (1 x fixed, 2 x programmable) DeviceNet, Ethernet/IP, Modbus • Analog output RTU, Modbus TCP, Profibus, Profinet EMX4i User Manual 710-14888-00C...

  • Page 10: Model Code

    The soft starter's current rating is only valid when used in the conditions specified in the AC53b code - the soft starter may have a higher or lower current rating in different operating conditions. 710-14888-00C EMX4i User Manual...

  • Page 11: Current Ratings

    SYSTEM DESIGN 3.4 Current Ratings For operating conditions not covered by these ratings charts, download AuCom's free WinStart selection application, or contact your local supplier. IEC ratings • AC53b format 80 A : AC-53b 3.5 - 15 : 345 Off time (seconds)
  • Page 12 SYSTEM DESIGN  Inside delta installation 3.0-10:350 3.5-15:345 4.0-10:350 4.0-20:340 5.0-5:355 EMX4i-0024B EMX4i-0042B EMX4i-0052B 3.0-10:590 3.5-15:585 4.0-10:590 4.0-20:580 5.0-5:595 EMX4i-0064B EMX4i-0069B EMX4i-0105B EMX4i-0115B EMX4i-0135B EMX4i-0184B EMX4i-0200B EMX4i-0229B EMX4i-0250B EMX4i-0352B EMX4i-0397B EMX4i-0410B EMX4i-0550B EMX4i-0580B 710-14888-00C EMX4i User Manual...
  • Page 13 EMX4i-0397B 389 150 300 400 261 100 200 250 203 150 200 EMX4i-0410B 410 150 300 450 377 150 300 350 302 100 250 300 EMX4i-0550B 550 200 450 500 414 150 350 450 321 125 250 300 EMX4i-0580B 580 200 500 500 477 200 400 500 361 150 300 350...

  • Page 14: Dimensions And Weights

    EMX4i-0042B (10.7) EMX4i-0052B EMX4i-0064B (10.9) EMX4i-0069B (6.0) (3.6) (13.2) (12.1) (9.1) EMX4i-0105B EMX4i-0115B (12.1) EMX4i-0135B EMX4i-0184B EMX4i-0200B 12.7 EMX4i-0229B (19.5) (28.0) EMX4i-0250B (8.5) (7.1) (17.7) (9.6) EMX4i-0352B 15.5 EMX4i-0397B (34.2) EMX4i-0410B (20.6) EMX4i-0550B 19.0 EMX4i-0580B (41.9) 710-14888-00C EMX4i User Manual...

  • Page 15: Physical Installation

    > 100 mm (3.9 inch) > 10 mm (0.4 inch) > 100 mm (3.9 inch) > 10 mm (0.4 inch) 3.7 Accessories Expansion Cards The EMX4i offers expansion cards for users requiring additional inputs and outputs or advanced functionality. Each EMX4i can support a maximum of one expansion card.

  • Page 16: Main Contactor

    Use the main contactor output (33, 34) to control the contactor. WARNING When connecting the EMX4i in inside delta configuration, always install a main contactor or shunt trip circuit breaker. 3.9 Circuit Breaker A shunt trip circuit breaker may be used instead of a main contactor to isolate the motor circuit in the event of a soft starter trip.

  • Page 17: Power Factor Correction

    If power factor correction is used, a dedicated contactor should be used to switch in the capacitors. To use the EMX4i to control power factor correction, connect the PFC contactor to a programmable relay set to Run. When the motor reaches full speed, the relay will close and power factor correction will be switched in.

  • Page 18: Iec Coordination With Short Circuit Protection Devices

    15000 100NHG000B 170M3014 EMX4i-0069B EMX4i-0105B 80000 170M3015 EMX4i-0115B 160NHG00B EMX4i-0135B 125000 170M3016 EMX4i-0184B 250NHG2B EMX4i-0200B 320000 170M3020 EMX4i-0229B 315NHG2B EMX4i-0250B 170M3021 EMX4i-0352B 202000 355NHG2B 170M6009 EMX4i-0397B 400NHG2B EMX4i-0410B 320000 425NHG2B 170M6010 EMX4i-0550B 781000 630NHG3B 170M6012 EMX4i-0580B 710-14888-00C EMX4i User Manual...

  • Page 19: Ul Coordination With Short Circuit Protection Devices

    18 kA EMX4i-0250B EMX4i-0352B EMX4i-0397B EMX4i-0410B EMX4i-0550B 30 kA EMX4i-0580B † Suitable for use in a circuit with the prospective current noted, when protected by any Listed fuses or Listed circuit breakers sized according to the NEC. EMX4i User Manual 710-14888-00C...
  • Page 20 EMX4i-0024B EMX4i-0042B EMX4i-0052B (J, T, K-1, RK1, RK5) EMX4i-0064B EMX4i-0069B EMX4i-0105B EMX4i-0115B 65 kA J, T, K-1, RK1 EMX4i-0135B EMX4i-0184B EMX4i-0200B J, T EMX4i-0229B EMX4i-0250B EMX4i-0352B EMX4i-0397B EMX4i-0410B (J, T, K-1, RK1, RK5) EMX4i-0550B EMX4i-0580B 710-14888-00C EMX4i User Manual...
  • Page 21 (400 A) (300 A) EMX4i-0352B UTS150H-xxU-400 HFD3400 (400 A) (400 A) EMX4i-0397B UTS150H-xxU-600 EMX4i-0410B SELA36AT0600 (600 A) (600 A) HFD3600 (600 A) UTS150H-xxU-800 EMX4i-0550B (800 A) EMX4i-0580B UTS150H-NG0-800 For LS breakers, xx represents FM, FT or AT. EMX4i User Manual 710-14888-00C...

  • Page 22: Fuse Selection For Type 2 Coordination

    I t less than the I t of the soft starter SCRs. When selecting semiconductor fuses for EMX4i, use the I t values in the table. For further information on selecting semiconductor fuses, contact your local distributor.

  • Page 23: Specifications

    ............Normally Open Relay output A (41, 42, 44) ............Changeover Relay output B (53, 54) ............Normally Open Analog output (21, 22) Maximum load ........... 600 Ω (12 VDC @ 20 mA) Accuracy ....................± 5% EMX4i User Manual 710-14888-00C...

  • Page 24: Disposal Instructions

    100 000 operations 3.16 Disposal Instructions Equipment containing electrical components may not be disposed of together with domestic waste. It must be collected separately as electrical and electronic waste according to local and currently valid legislation. 710-14888-00C EMX4i User Manual...

  • Page 25: Installation

    WARNING Always apply control voltage before (or with) mains voltage. 4.1 Command Source The EMX4i can be started and stopped via the digital inputs, remote keypad, communication network, smart card or scheduled auto-start/stop. The command Command Source source can be set via the Setup Tools, or using parameter 1A 4.2 Setup Procedure Overview...

  • Page 26: Inputs

    (default = Input Trip (N/O)) USB port Motor Thermistor Motor thermistors can be connected directly to the EMX4i. The soft starter will trip when the resistance of the thermistor circuit exceeds approximately 3.6 kΩ or falls below 20 Ω. 710-14888-00C EMX4i User Manual...
  • Page 27 Setup Tools. Reset/Starter Disable The reset input (10, 11) is normally closed by default. The EMX4i will not perform a start if the reset input is open. The display will show "Not Ready". If the reset input opens while the EMX4i is running, the starter will remove power and allow the motor to coast to stop.

  • Page 28: Outputs

    53, 54 Relay output B (default = Run) Analog Output The EMX4i has an analog output, which can be connected to associated equipment to monitor motor performance. The operation of the analog output is controlled by parameters 9A~9D. Main Contactor Output...

  • Page 29: Control Voltage

    • EMX4i-xxxxB-xx-C2 (24 VAC/VDC): A1, A2 UL Compliant Installation For models EMX4i-0184B to EMX4i-0580B to be UL compliant, supplementary or branch overcurrent protection must be used on the control circuit supply (A1, A2, A3), in accordance with the electrical code applicable at the installation location.
  • Page 30 If the installation requires large diameter cables, it is possible to complete each termination with two smaller cables, one on each side of the busbar. UL Compliant Installation For models EMX4i-0184B to EMX4i-0580B to be UL compliant, you must use the recommended pressure terminal/connector. Model Recommended lugs part No.
  • Page 31 INSTALLATION Motor Connection The EMX4i can be connected to the motor in-line or inside delta (also called three-wire and six-wire connection). When connecting in inside delta, enter the motor full load current (FLC) for parameter 1B. The EMX4i will automatically detect whether the motor is connected in-line or inside delta and will calculate the correct inside delta current level.

  • Page 32: Typical Installation

    INSTALLATION 4.7 Typical Installation The EMX4i is installed with a main contactor (AC3 rated). Control voltage must be supplied from the input side of the contactor. The main contactor is controlled by the main contactor output (33, 34). 1/L1 2/T1...
  • Page 33 Control voltage (external 33, 34 Main contactor output equipment) Pilot lamps 41, 42, 44 Relay output A (default = Run) Communications / Smart 53, 54 Relay output B (default = Run) card expansion port 21, 22 Analog output EMX4i User Manual 710-14888-00C...

  • Page 34: Quick Setup

    INSTALLATION 4.8 Quick Setup The Quick Setup Menu makes it easy to configure the EMX4i for common applications. The EMX4i guides you through the most common installation parameters, and suggests a typical setting for the application. You can adjust each parameter to suit your exact requirements.

  • Page 35: Setup Tools

    5.2 Command Source The EMX4i can be started and stopped via the digital inputs, remote keypad, communication network, smart card or scheduled auto-start/stop. The command Command Source...

  • Page 36: Run Simulation

    ATTENTION! If mains voltage is connected, an error Remove Mains Volts message is shown. MENU to Continue 4. Press . The EMX4i simulates starting. The Run Run Simulation LED flashes. Starting X:XXs MENU to Continue 5. Press . The EMX4i simulates running.

  • Page 37: Load/Save Settings

    SETUP TOOLS 5.5 Load/Save Settings Load/Save Settings allows users to: • Reset the EMX4i's parameters to default values • Load parameter settings from an internal file • Save the current parameter settings to an internal file The internal file contains default values until a user file is saved.
  • Page 38 File Locations and Formats Save Parameters and Logs: The EMX4i will create a directory at the top level of the USB drive, named with the soft starter's serial number. The event log and parameter settings are saved as individual CSV files, and the soft starter's software and system information are saved to a text file.

  • Page 39: Auto-Start/Stop

    SETUP TOOLS 5.7 Auto-Start/Stop The EMX4i can be configured to automatically start and/or stop the motor at a particular time, or run it in cycles of a specified duration. The Auto-Start/Stop option in Setup Tools gives quick access to the auto-start/stop parameters.

  • Page 40: Digital I/O State

    SETUP TOOLS NOTE The network address can also be set using parameters 12H~12S. NOTE To configure the EMX4i for use with other communication protocols, use parameters 12A~12G. 5.9 Digital I/O State The top line of the screen shows the start/stop, reset Digital I/O State and programmable inputs.

  • Page 41: Software Versions

    5.13 Thermistor Reset The thermistor input is disabled by default, but activates automatically when a thermistor is detected. If thermistors have previously been connected to the EMX4i but are no longer required, use the Thermistor Reset function to disable the thermistor.

  • Page 42: Logs

    To close the counter and return to the Logs, press 6.3 QR Code The EMX4i can generate a QR code which allows a smartphone to display key information about the starter, including serial number, firmware versions and installed options, plus details of the starter’s three most recent trips. This information can be useful when requesting assistance from your local supplier.

  • Page 43: Keypad And Feedback

    Soft starter local control buttons Shortcut buttons for quick access to common tasks. LOGS: Open the Logs Menu. ALT: Select which graph to view, or pause/restart the graph (hold longer than 0.5 seconds) TOOLS: Open the Setup Tools. EMX4i User Manual 710-14888-00C...

  • Page 44: Remote Keypad

    The backlight on the display can be adjusted: • to lighten the display, hold down the button and press the • to darken the display, hold down the button and press the NOTE The local and remote keypads can be adjusted independently. 710-14888-00C EMX4i User Manual...

  • Page 45: Starter Status Leds

    (remote keypad software version is only displayed when a remote keypad is connected) Starter status screen 69.0 A motor running current Starter status Running User Parameter 1 User Parameter 2 Parameters 10H and 10I 69.0 A 415 V EMX4i User Manual 710-14888-00C...
  • Page 46 If a remote keypad is connected, press ALT to change the graph data. The graph can show: • motor current • motor temperature • motor pf • analog input data from the smart card (if installed) 710-14888-00C EMX4i User Manual...

  • Page 47: Operation

    'Clock' • the reset input must be closed • the start input (11, 12) must be active. This allows the EMX4i to be stopped via the digital inputs in an emergency. Clock mode operation is controlled by parameters 4D ~ 4X.

  • Page 48: Powerthrough

    Timer mode operation is controlled by parameters 4B ~ 4C. 8.4 PowerThrough PowerThrough allows the soft starter to control the motor even if the soft starter is damaged on one phase. The EMX4i will use two-phase control techniques to soft start and soft stop the motor. NOTE The starter will trip on Lx-Tx Shorted on the first start attempt after control power is applied.

  • Page 49: Emergency Mode

    'Emergency Mode'. A closed circuit across 13, 14 activates emergency mode. When the EMX4i receives a start command, it will continue to run until a stop command is received, ignoring all trips and warnings. Emergency mode can be used in conjunction with any command source.

  • Page 50: Typical Control Methods

    Pump - bore (Early accel.) (Late decel.) Adaptive Control Adaptive Control Pump - centrifugal (Early accel.) (Late decel.) Pump - Hydraulic Constant Current Coast To Stop Pump - positive Adaptive Control Adaptive Control displacement (Const. accel.) (Const. decel.) 710-14888-00C EMX4i User Manual...

  • Page 51: Soft Start Methods

    • the electricity supply is limited (for example a generator set), and a slower application of load will allow greater time for the supply to respond. EMX4i User Manual 710-14888-00C...
  • Page 52 • Add the FLC value of all the connected motors. Use this combined value Motor Full Load Current to set parameter 1B . (Note that the combined value must not exceed the starter rating.) 710-14888-00C EMX4i User Manual...
  • Page 53 6: Motor 2 current Time Adaptive Control for Starting In an adaptive control soft start, the EMX4i adjusts the current in order to start the motor within a specified time and using a selected acceleration profile. NOTE The EMX4i will apply the current limit on all soft starts, including adaptive control.

  • Page 54: Stop Methods

    Time Adaptive Control for Stopping In an adaptive control soft stop, the EMX4i controls the current in order to stop the motor within a specified time and using a selected deceleration profile. Adaptive Control can be useful in extending the stopping time of low inertia loads.
  • Page 55 A high brake torque setting can result in peak currents up to motor DOL being drawn while the motor is stopping. Ensure protection fuses installed in the motor branch circuit are selected appropriately. EMX4i User Manual 710-14888-00C...
  • Page 56 Configure DC brake for the longest braking time required, and also set parameter Input A Function to 'Zero Speed Sensor'. When the motor reaches a standstill, the zero speed sensor opens the circuit across 13, 14 and the soft starter terminates the stop. 710-14888-00C EMX4i User Manual...
  • Page 57 For applications with high inertia and/or a variable load requiring the maximum possible braking torque, the EMX4i can be configured for soft braking. The EMX4i uses a changeover relay to control forward run and braking contactors. While braking, the EMX4i reverses the phase sequence to the motor and supplies reduced current, gently slowing the load.

  • Page 58: Pump Clean

    NOTE The first start after the direction is changed will be constant current. NOTE If phase sequence protection is required, install the reversing contactor on the output (motor) side of the soft starter. 710-14888-00C EMX4i User Manual...

  • Page 59: Jog Operation

    Slow speed running is not intended for continuous operation due to reduced motor cooling. Jog operation causes the motor to heat faster than the rate calculated by the motor thermal model. If you are using jog, install a motor thermistor or allow sufficient restart delay (parameter 5P). EMX4i User Manual 710-14888-00C...

  • Page 60: Inside Delta Operation

    PowerThrough The starter trips with the error message Lx-Tx Shorted. NOTE When connected in inside delta, the EMX4i will not detect phase loss on T2 during run. NOTE If the starter is not correctly detecting the motor connection, use parameter...

  • Page 61: Secondary Motor Set

    OPERATION 8.14 Secondary Motor Set The EMX4i can be programmed with two separate starting and stopping profiles. This allows the soft starter to control the motor in two different starting and stopping configurations. The secondary motor set is ideal for dual winding (Dahlander) motors, multi-motor applications, or situations where the motor may start in two different conditions (such as loaded and unloaded conveyors).

  • Page 62: Programmable Parameters

    9. Programmable Parameters 9.1 Main Menu The main menu lets you view and change programmable parameters that control how the EMX4i operates. To open the main menu, press the MENU button then scroll to Main Menu and press MENU again.

  • Page 63: Parameter List

    DC Brake Time 00:01 (mm:ss) Brake Current Limit 250% Soft Brake Delay 400 ms Motor Start/Stop 2 Motor Full Load Current-2 Model dependent Motor kW-2 0 kW Start Mode-2 Constant Current Start Ramp Time-2 00:10 (mm:ss) EMX4i User Manual 710-14888-00C...
  • Page 64 Tuesday Mode Start/Stop Disable Tuesday Start Time 00:00 (hh:mm) Tuesday Stop Time 00:00 (hh:mm) Wednesday Mode Start/Stop Disable Wednesday Start Time 00:00 (hh:mm) Wednesday Stop Time 00:00 (hh:mm) Thursday Mode Start/Stop Disable Thursday Start Time 00:00 (hh:mm) 710-14888-00C EMX4i User Manual...
  • Page 65 Any Sequence Protection Actions Auto-Reset Count Auto-Reset Delay 00:05 (mm:ss) Current Imbalance Soft Trip and Log Undercurrent Soft Trip and Log Overcurrent Soft Trip and Log Undervoltage Soft Trip and Log Overvoltage Soft Trip and Log EMX4i User Manual 710-14888-00C...
  • Page 66 Relay A Function Relay A On Delay 00:00 (mm:ss) Relay A Off Delay 00:00 (mm:ss) Relay B Function Relay B On Delay 00:00 (mm:ss) Relay B Off Delay 00:00 (mm:ss) Low Current Flag High Current Flag 100% 710-14888-00C EMX4i User Manual...
  • Page 67 00:10 (mm:ss) Forward Current Limit 100% Forward Time 00:10 (mm:ss) Pump Stop Mode Coast To Stop Pump Stop Time 00:10 (mm:ss) Pump Clean Cycles Communications Card Modbus Address Modbus Baud Rate 9600 Modbus Parity None Modbus Timeout EMX4i User Manual 710-14888-00C...
  • Page 68 Pump Input Configuration Pressure Sensor Type None Pressure Units Pressure at 4 mA Pressure at 20 mA Flow Sensor Type None Flow Units litres/second Flow at 4 mA Flow at 20 mA Units per Minute at Max Flow 710-14888-00C EMX4i User Manual...
  • Page 69 00:00:50 (mm:ss:ms) Stop Pressure Level Stop Response Delay 00:00:50 (mm:ss:ms) Depth Protection Depth Trip Level Depth Reset Level Depth Start Delay 00:00:50 (mm:ss:ms) Depth Response Delay 00:00:50 (mm:ss:ms) Thermal Protection Temperature Sensor Type None Temperature Trip Level EMX4i User Manual 710-14888-00C...
  • Page 70 Low Pressure Soft Trip and Log High Flow Soft Trip and Log Low Flow Soft Trip and Log Flow Switch Soft Trip and Log Well Depth Soft Trip and Log RTD/PT100 B Soft Trip and Log 710-14888-00C EMX4i User Manual...

  • Page 71: Motor Details

    Network The EMX4i will accept start and stop commands from the communication expansion card. Remote Keypad The EMX4i will accept start and stop commands from the Remote Keypad. Clock The EMX4i will start and stop as scheduled in parameters 4D to 4X.

  • Page 72: Motor Start/Stop

    Selects the soft start mode. NOTE The EMX4i will apply the current limit on all soft starts, including adaptive control. If the current limit is too low or the start ramp time (parameter 2B) is too short, the motor may not start successfully.
  • Page 73 Jog Torque 2H – The EMX4i can jog the motor at a reduced speed, which allows precise positioning of belts and flywheels. Jog can be used for either forward or reverse operation. Range: 20% - 100%...
  • Page 74 (33, 34) to control the main contactor. Adaptive Stop Profile 2K – Options: Early Deceleration Constant Deceleration (default) Late Deceleration Description: Selects which profile the EMX4i will use for an Adaptive Control soft stop. Adaptive Control Gain 2L – Range: 1% - 200% Default: Description: Adjusts the performance of Adaptive Control.

  • Page 75: Motor Start/Stop-2

    PROGRAMMABLE PARAMETERS DC Brake Torque 2O – Range: 20% - 100% Default: Description: Sets the amount of brake torque the EMX4i will use to slow the motor. DC Brake Time 2P – Range: 0:01 - 0:30 (minutes:seconds) Default: 1 second Description: Sets the duration for DC injection during a braking stop.

  • Page 76: Initial Current-2

    NOTE The EMX4i will apply the current limit on all soft starts, including adaptive control. lf the current limit is too low or the start ramp time (parameter 2B) is too short, the motor may not start successfully.

  • Page 77: Stop Time-2

    DC Brake Torque-2 3Q – Range: 20% - 100% Default: Description: Sets the amount of brake torque the EMX4i will use to slow the motor. DC Brake Time-2 3R – Range: 0:01 - 0:30 (minutes:seconds) Default: 1 second Description: Sets the duration for DC injection during a braking stop.

  • Page 78: Auto-Start/Stop

    Set to allow time for K1 and K2 to switch. 9.8 4 Auto-Start/Stop The EMX4i can be configured to automatically start and/or stop the motor at a particular time, or run it in cycles of a specified duration. Auto-Start/Stop Mode 4A –...

  • Page 79: Sunday Start Time

    Stop Only Enable Start Only Enable Start/Stop Enable Description: Enables or disables auto-start/stop for Wednesday. Wednesday Start Time 4N – Range: 00:00 - 23:59 Default: 00:00 Description: Sets the auto-start time for Wednesday (24 hour format). EMX4i User Manual 710-14888-00C...

  • Page 80: Wednesday Stop Time

    00:00 - 23:59 Default: 00:00 Description: Sets the auto-start time for Saturday (24 hour format). Saturday Stop Time 4X – Range: 00:00 - 23:59 Default: 00:00 Description: Sets the auto-stop time for Saturday (24 hour format). 710-14888-00C EMX4i User Manual...

  • Page 81: Protection Levels

    Overcurrent Delay 5F – Range: 0:00 - 1:00 (minutes:seconds) Default: 0 second Description: Slows the EMX4i's response to overcurrent, avoiding trips due to momentary overcurrent events. Undervoltage 5G – Range: 100 - 1000 V Default: Description: Sets the trip point for undervoltage protection.
  • Page 82 Default: 20 seconds Description: Excess start time is the maximum time the EMX4i will attempt to start the motor. If the motor does not transition to Run mode within the programmed limit, the starter will trip. Set for a period slightly longer than required for a normal healthy start. A setting of 0 disables excess start time protection.

  • Page 83: Protection Action

    00:01 - 60:00 (minutes:seconds) Default: 10 seconds Description: The EMX4i can be configured to force a delay between the end of a stop and the beginning of the next start. During the restart delay period, the display shows the time remaining before another start can be attempted.
  • Page 84 Trip Starter The soft starter will remove power and the motor will coast to stop. The trip must be reset before the EMX4i can restart. Trip and Reset The soft starter will remove power and the motor will coast to stop. The trip will reset...
  • Page 85 Log Only Description: Selects the soft starter's response to the protection event. Network Communications 6M – Options: Soft Trip and Log (default) Warn and Log Soft Trip and Reset Log Only Trip Starter Stop Trip and Reset EMX4i User Manual 710-14888-00C...
  • Page 86 PROGRAMMABLE PARAMETERS Description: Selects the soft starter's response to the protection event. If set to Stop, the EMX4i will perform a soft stop, then can be restarted without a reset. Remote Keypad Fault 6N – Options: Soft Trip and Log (default)

  • Page 87: Inputs

    Input Trip (N/C) An open circuit across 13, 14 trips the soft starter. Emergency A closed circuit across 13, 14 activates Mode emergency mode. When the EMX4i receives a start command, it will continue to run until a stop command is received, ignoring all trips and warnings. Jog Forward Activates jog operation in a forward direction.
  • Page 88 Run Only Description: Selects when an input trip can occur. Input B Trip Delay 7G – Range: 0:00 - 4:00 (minutes:seconds) Default: 0 second Description: Sets a delay between the input activating and the soft starter tripping. 710-14888-00C EMX4i User Manual...
  • Page 89 Pump Fault Field Trip Low Level Interlock Trip High Level Motor Temperature No Flow Motor Protection Starter Disable Feeder Protection Custom Message Description: Selects a message for the keypad to display when Input B is active. EMX4i User Manual 710-14888-00C...

  • Page 90: Relay Outputs

    Selects the function of Relay A. Relay A is a changeover relay. Relay A On Delay 8B – Range: 0:00 - 5:00 (minutes:seconds) Default: 0 second Description: Sets the delay for changing the state of Relay A. 710-14888-00C EMX4i User Manual...
  • Page 91 Low Current Flag 8G – The EMX4i has low and high current flags to give early warning of abnormal operation. The current flags can be configured to indicate an abnormal current level during operation, between the normal operating level and the undercurrent or instantaneous overcurrent trip levels.

  • Page 92: Analog Output

    Motor Temperature Flag 8I – The EMX4i has a motor temperature flag to give early warning of abnormal operation. The flag can indicate that the motor is operating above its normal operating temperature but lower than the overload limit. The flag can signal the situation to external equipment via one of the programmable outputs.

  • Page 93: Display

    Selects which language the keypad will use to display messages and feedback. Temperature Scale 10B – Options: Celsius (default) Fahrenheit Description: Selects whether the EMX4i will display temperatures in degrees Celsius or Fahrenheit. Graph Timebase 10C – Options: 30 seconds (default) 1 minute 30 minutes...
  • Page 94 Temperature (%) thermal model. Hours Run The number of hours the motor has run via the soft starter. Number of Starts The number of starts the EMX4i has completed since the start counter was last reset. 710-14888-00C EMX4i User Manual...
  • Page 95 10J – User Parameter 1 Options: Refer to parameter 10H for details. Default: Mains Frequency Description: Selects which information will be displayed on the programmable monitoring screen. Refer to parameter 10H User Parameter 1 for details. EMX4i User Manual 710-14888-00C...

  • Page 96: Pump Clean

    Sets the current limit for forward start operation during pump clean. Forward Time 11D – Range: 0:00 - 1:00 (minutes:seconds) Default: 10 seconds Description: Sets the time for the starter to run the motor after a forward start, during a pump clean cycle. 710-14888-00C EMX4i User Manual...

  • Page 97: Communications Card

    12C – Options: None (default) Even 10-bit Description: Selects the parity for Modbus RTU communications. Modbus Timeout 12D – Options: Off (default) 10 seconds 60 seconds 100 seconds Description: Selects the timeout for Modbus RTU communications. EMX4i User Manual 710-14888-00C...
  • Page 98 IP Address 12L – Range: 0 - 255 Default: Description: Sets the first component of the soft starter's IP address, for Ethernet communications. The IP address is set using parameters 12L~12O and the default address is 192.168.0.2. 710-14888-00C EMX4i User Manual...
  • Page 99 Sets the fourth component of the network subnet mask, for Ethernet communications. NOTE The network address can also be set via the Network Address options in the Network Address Setup Tools. Refer to on page 38 for details. EMX4i User Manual 710-14888-00C...

  • Page 100: Advanced

    The soft starter’s internal model reference, as shown on the silver label on the side of the unit ( RoHS M/R: 0085 Made in New Zealand NOTE This parameter can only be adjusted by authorised servicing agents. 710-14888-00C EMX4i User Manual...

  • Page 101: Pump Input Configuration

    Calibrates the soft starter to the 4 mA (0%) level of the pressure sensor input. Pressure at 20 mA 30D – Range: 0 – 5000 Default: Description: Calibrates the soft starter to the 20 mA (100%) level of the pressure sensor input. EMX4i User Manual 710-14888-00C...
  • Page 102 Calibrates the soft starter to the maximum flow volume of the flow sensor. Units per Pulse 30K – Range: 0 – 1000 Default: Description: Set to match how many units the flow sensor will measure for each pulse. 710-14888-00C EMX4i User Manual...

  • Page 103: Flow Protection

    00:00:500 ms Description: Sets a delay before a flow protection trip can occur. The delay is counted from the time a start signal is received. The flow level is ignored until the start delay has elapsed. EMX4i User Manual 710-14888-00C...

  • Page 104: Pressure Protection

    Low Pressure Response Delay 32F – Range: 00:00:10 – 30:00:00 mm:ss:ms Default: 00:00:500 ms Description: Sets a delay between the pressure passing the low pressure trip level, and the soft starter tripping. 710-14888-00C EMX4i User Manual...

  • Page 105: Pressure Control

    Sets the pressure level to trigger the soft starter to stop the motor. Stop Response Delay 33E – Range: 00:00:10 – 30:00:00 mm:ss:ms Default: 00:00:500 ms Description: Sets a delay between the pressure passing the pressure control stop level, and the soft starter stopping the motor. EMX4i User Manual 710-14888-00C...

  • Page 106: Depth Protection

    Selects which type of sensor is associated with the temperature sensor input on the smart card. Temperature Trip Level 35B – Range: 0° – 240° Default: 40° Description: Sets the trip point for temperature protection. Use parameter Temperature Scale to configure the temperature scale. 710-14888-00C EMX4i User Manual...

  • Page 107: Pump Trip Action

    Soft Trip and Reset Warn and Log Trip Starter Log Only Description: Selects the soft starter's response if the pressure falls below the low pressure trip level (parameter 32D) or the low pressure switch sensor closes. EMX4i User Manual 710-14888-00C...
  • Page 108 (parameter 34A) or the depth switch sensor closes. RTD/PT100 B 36J – Options: Soft Trip and Log (default) Trip and Reset Soft Trip and Reset Warn and Log Trip Starter Log Only Description: Selects the soft starter's response to the protection event. 710-14888-00C EMX4i User Manual...

  • Page 109: Application Examples

    APPLICATION EXAMPLES 10. Application Examples 10.1 Smart Card - Pump Control and Protection The EMX4i smart card is ideal for applications with extensive external inputs, such as pumping situations where external sensors provide additional protection to the pump and motor.
  • Page 110 • Parameters 30A~30O Pump Input Configuration: Set as required. • Parameters 31A~31D Flow Protection: Set as required. • Parameters 32A~32F Pressure Protection: Set as required. • Parameters 34A~34D Depth Protection: Set as required. • Parameters 35A~35B Thermal Protection: Set as required. 710-14888-00C EMX4i User Manual...

  • Page 111: Smart Card - Level Controlled Pump Activation

    The EMX4i smart card can be used to control start/stop activation of the starter, based on information from external inputs. In this example, the EMX4i controls a pump which fills a tank, with maximum and minimum water levels. A pressure sensor is used to monitor the level of water in the tank and trigger the pump to fill the tank when water drops below the minimum level, and shut off the pump when the maximum water level is reached.
  • Page 112 Input A Function • Parameter 7A : select 'Command Override: Digital'. • Parameters 30A~30O Pump Input Configuration: Set as required. • Parameters 31A~31D Flow Protection: Set as required. • Parameters 33A~33E Pressure Control: Set as required. 710-14888-00C EMX4i User Manual...

  • Page 113: Troubleshooting

    To reset the starter, press the RESET button on the keypad or activate the Reset remote input. If the EMX4i has issued a warning, the soft starter will reset itself once the cause of the warning has been resolved.
  • Page 114 Related parameters: 1B, 2B, 2D, 3D, 3F Where 'X' is phase 1, 2 or 3. Firing Fail Px The SCR did not fire as expected. The SCR may be faulty or there may be an internal wiring fault. Related parameters: None 710-14888-00C EMX4i User Manual...
  • Page 115 Check for other equipment in the area that could be affecting the mains supply, particularly variable speed drives and switch mode power supplies (SMPS). If the EMX4i is connected to a generator set supply, the generator may be too small or could have a speed regulation problem. Related parameters: 6O •...
  • Page 116 Where 'X' is a number. Internal fault x This trip is not adjustable. The EMX4i has tripped on an internal fault. Contact your local supplier with the fault code (X). The soft starter firmware does not match the hardware. Internal fault 88...
  • Page 117 TROUBLESHOOTING Display Possible cause/Suggested solution The EMX4i has detected a drop in the internal control voltage. Low Control Volts • Check the external control supply (A1, A2, A3) and reset the starter. If the external control supply is stable: • the 24 V supply on the main control PCB may be faulty; or •...
  • Page 118 • The motor thermistor input has been opened. If thermistors have previously been connected to the EMX4i but are no longer required, use the Thermistor Reset function to disable the thermistor.
  • Page 119 The phase sequence on the soft starter's input terminals (L1, L2, Phase sequence L3) is not valid. Check the phase sequence on L1, L2, L3 and ensure the setting in parameter 5R is suitable for the installation. Related parameters: 5R, 6P EMX4i User Manual 710-14888-00C...
  • Page 120 Related parameters: None The smart card has detected a fault with the pressure sensor. Pressure Sensor Related parameters: 30A, 36A The EMX4i is operating beyond its safe capacity. Allow the Rating Capacity starter to cool. Related parameters: None The smart card has detected a fault with the RTD sensor, or the RTD Circuit RTD has activated temperature protection.
  • Page 121 TROUBLESHOOTING Display Possible cause/Suggested solution The EMX4i is internally bypassed and has drawn high current Time-overcurrent during running. (The 10A protection curve trip has been reached or the motor current has risen to 600% of the motor FLC setting.) Related parameters: None...

  • Page 122: General Faults

    • The soft starter may be waiting for control signals via the communications network (parameter 1A Command Source = Network). • The EMX4i may be waiting for a scheduled auto-start Command Source (parameter 1A = Clock). 710-14888-00C EMX4i User Manual...
  • Page 123 To use the EMX4i to control power factor correction, connect the PFC contactor to a programmable relay set to Run.
  • Page 124 If you press EXIT, the change will not be saved. The EMX4i does not display a confirmation. • Check that the adjustment lock (parameter 10G) is set to Read & Write. If the adjustment lock is set to Read Only, settings can be viewed but not changed.
  • Page 125 Model Rating Rating Not Valid The value selected for parameter 20D does not match the soft starter. Set parameter 20D to match the rating shown on the EMX4i nameplate label (on the side of the unit). EMX4i User Manual 710-14888-00C...
  • Page 126 T +971 4279 8349 F +971 4279 8399 North America 2528 Lovi Road, Building 2-2A, Freedom, PA 15042, USA T 855 928 2666 (855 AUCOM NA), +1 724 987 4952 F +1 724 510 3005 http://my.aucom.com For more information and your local contact visit www.aucom.com...

Table of Contents

Save PDF
