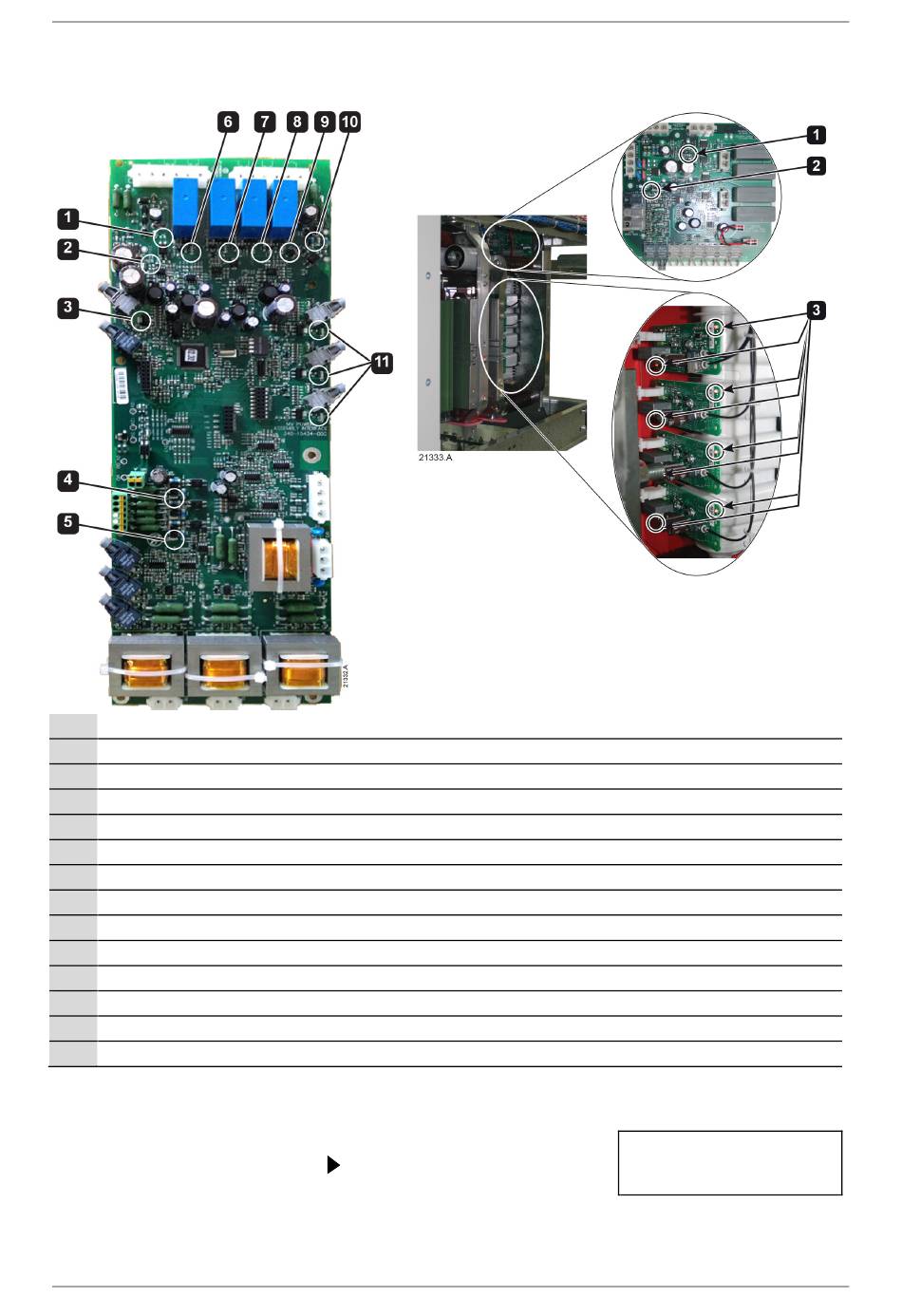

LED locations
•
LED locations on power interface board
1
Low control volts (green)
2
Control supply LED (green)
3
Controller/power interface board communications (red)
4
Protection active input (C3) (green)
5
Protection active input (C4) (green)
6
Phase arm power supply control relay output (green)
7
PFC contactor relay output (green)
8
Bypass device relay output (green)
9
Main device relay output (green)
10
Bypass readback input (green)
11
Firing status LEDs (red)
12
Gate drive power supply (green)
13
Firing signal (red)
14
Firing status LEDs (orange)
Procedure
•
To use the run simulation:
1.
Press ALT then F2 to open the Commissioning Menu.
2.
Scroll to Run Simulation and press
•
On the controller, the Run LED flashes.
•
On the power interface board, the low control volts, control supply and
protection active LEDs activate.
LED locations on each phase arm
.
CONTROLLER
Run Simulation
Ready
Apply Start Signal
MVE User Manual (710-17074-00H) |
23
