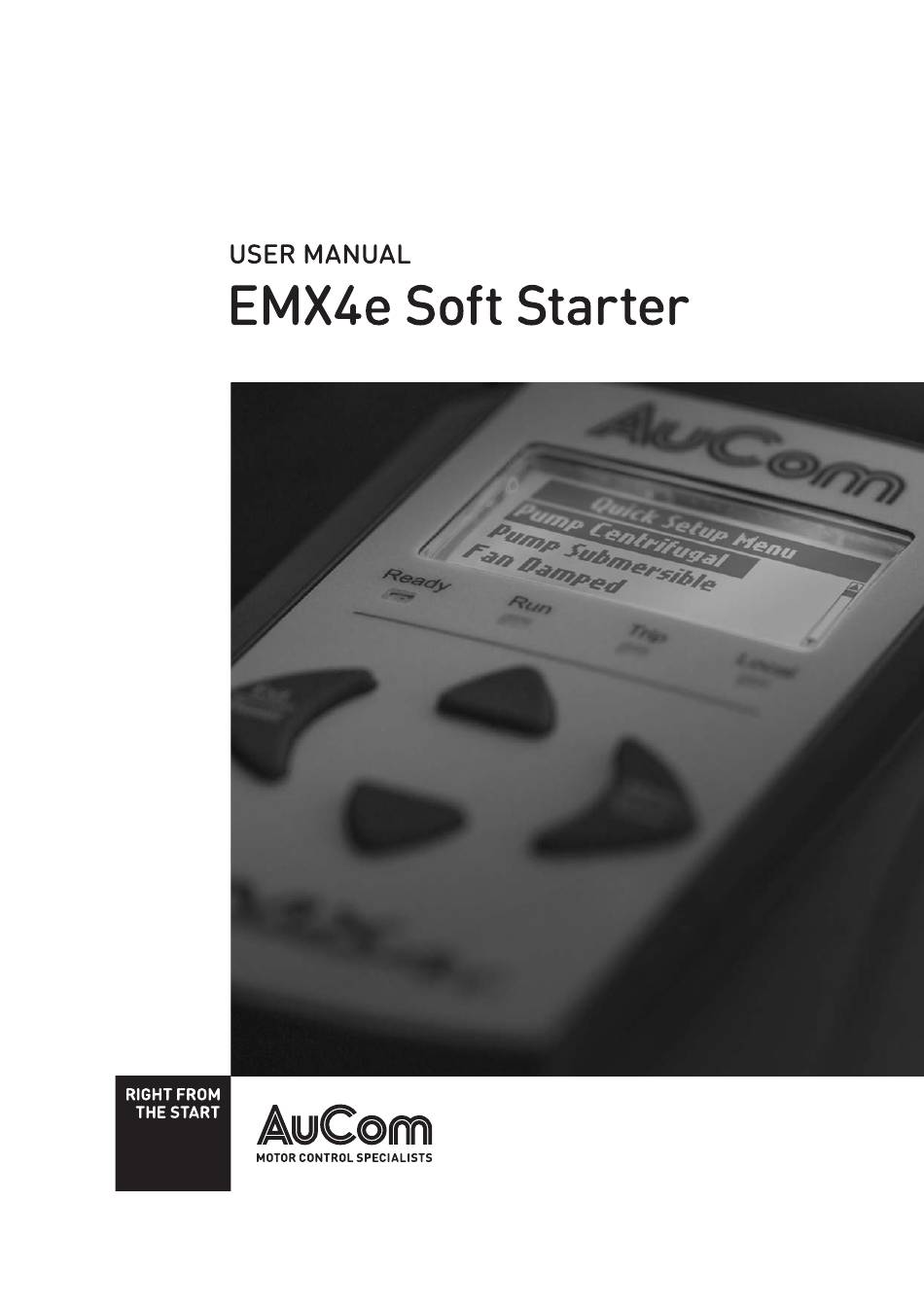

AuCom EMXAe User Manual

Soft starter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EMXAe and is the answer not in the manual?

Questions and answers

Related Manuals for AuCom EMXAe

Summary of Contents for AuCom EMXAe

  • Page 3: Table Of Contents

    CONTENTS Contents Serial Number & Rating ......37 About This Manual ........2 5.10 Software Versions ........38 Disclaimer ........... 2 5.11 Thermistor Reset ........38 Caution Statements ........3 5.12 Reset Thermal Model ....... 38 Electrical shock risk ........3 Logs ............

  • Page 4: About This Manual

    © 2020 AuCom Electronics Ltd. All Rights Reserved. As AuCom is continuously improving its products it reserves the right to modify or change the specification of its products at any time without notice. The text, diagrams, images and any other literary or artistic works appearing in this document are protected by copyright.

  • Page 5: Caution Statements

    CAUTION STATEMENTS 2. Caution Statements Caution Statements cannot cover every potential cause of equipment damage but can highlight common causes of damage. It is the installer's responsibility to read and understand all instructions in this manual prior to installing, operating or maintaining the equipment, to follow good electrical practice including applying appropriate personal protective equipment and to seek advice before operating this equipment in a manner other than as described in this manual.

  • Page 6: Unexpected Operation

    CAUTION STATEMENTS GROUNDING AND BRANCH CIRCUIT PROTECTION It is the responsibility of the user or person installing the EMX4e to provide proper grounding and branch circuit protection according to local electrical safety codes. 2.2 Unexpected Operation WARNING – ACCIDENTAL STARTS In some installations, accidental starts may pose an increased risk to safety of personnel or damage to the machines being driven.

  • Page 7: Avertissements À L'attention Des Clients Canadiens

    CAUTION STATEMENTS 2.3 Avertissements à l'attention des clients canadiens AVERTISSEMENT L'icône AVERTISSEMENT ci-contre signale les informations concernant des risques pouvant entraîner des blessures graves, voire mortelles. Pour votre sécurité, veuillez consulter les avertissements sur cette page ou demander une copie du présent manuel en français auprès de votre distributeur local. AVERTISSEMENT –...
  • Page 8 CAUTION STATEMENTS AVERTISSEMENT – LE DÉMARREUR PEUT DÉMARRER OU S'ARRÊTER À TOUT MOMENT Le démarreur progressif répond aux commandes de contrôle de différentes origines et peut par conséquent démarrer ou s'arrêter à tout moment. Toujours déconnecter le démarreur de la tension secteur avant d'accéder au démarreur ou à...

  • Page 9: System Design

    SYSTEM DESIGN 3. System Design 3.1 Feature List Streamlined setup process Customisable protection • Configuration profiles for common • Motor overload applications • Excess Start Time • Built-in metering and inputs/outputs • Undercurrent • Overcurrent Easy to understand interface • Current imbalance •...

  • Page 10: Model Code

    SYSTEM DESIGN 3.2 Model Code EMX4e– 0 0 6 9 – – Control voltage C1 = 110~120 VAC or 220~240 VAC C2 = 24 VAC/VDC Mains voltage V5 = 200~525 VAC V7 = 380~600 VAC Bypass B = internally bypassed Nominal current rating 3.3 Model Selection Starter sizing...

  • Page 11: Current Ratings

    SYSTEM DESIGN 3.4 Current Ratings Contact your local supplier for ratings under operating conditions not covered by these ratings charts. IEC ratings • AC53b format (bypassed current rating) 80 A : AC-53b 3.5 - 15 : 345 Off time (seconds) Start time (seconds) Start current (multiple of motor full load current)
  • Page 12 SYSTEM DESIGN NEMA motor ratings All ratings are calculated at altitude of 1000 metres and ambient temperature of 50 ºC. Light Normal Heavy 300%, 10 s, 350%, 30 s, 450%, 30 s, 6 starts per hour 4 starts per hour 4 starts per hour @240 @480...

  • Page 13: Dimensions And Weights

    SYSTEM DESIGN 3.5 Dimensions and Weights Width Height Depth Weight mm (inch) mm (inch) mm (inch) kg (lb) EMX4e-0024B EMX4e-0042B (10.4) EMX4e-0052B EMX4e-0064B (10.2) EMX4e-0069B (6.0) (3.6) (13.2) (12.1) (9.2) EMX4e-0105B EMX4e-0115B (11.0) EMX4e-0135B EMX4e-0184B EMX4e-0200B 11.7 EMX4e-0229B (19.5) (25.8) EMX4e-0250B EMX4e-0352B (8.5)

  • Page 14: Physical Installation

    SYSTEM DESIGN 3.6 Physical Installation Between starters Solid surfaces > 100 mm (3.9 inch) > 10 mm (0.4 inch) > 100 mm (3.9 inch) > 10 mm (0.4 inch) 3.7 Accessories Expansion Cards The EMX4e offers expansion cards for users requiring additional inputs and outputs or advanced functionality.

  • Page 15: Main Contactor Or Circuit Breaker

    SYSTEM DESIGN Remote Keypad EMX4e starters can be used with a remote keypad, mounted up to 3 metres away from the starter. Each expansion card includes a keypad connection port, or a dedicated keypad connector card is available. Finger Guard Kit Finger guards may be specified for personnel safety.

  • Page 16: Short Circuit Protection Devices (Scpd)

    SYSTEM DESIGN close and power factor correction will be switched in. Do not use the soft starter relay output to directly switch in power factor correction. Soft starter Programmable output (set = Run) Power factor correction contactor Power factor correction CAUTION Power factor correction capacitors must be connected to the input side of the soft starter.

  • Page 17: Iec Coordination With Short Circuit Protection Devices

    SYSTEM DESIGN 3.11 IEC Coordination with Short Circuit Protection Devices These fuses were selected based on start current of 300% FLC for 10 seconds. Nominal Rating SCR I t (A Type 1 Type 2 coordination coordination 480 VAC, 65 kA 600 VAC, 65 kA Bussmann Bussmann...

  • Page 18: Ul Coordination With Short Circuit Protection Devices

    SYSTEM DESIGN 3.12 UL Coordination with Short Circuit Protection Devices Standard Fault Short Circuit Current Ratings Suitable for use on a circuit capable of delivering not more than the stated level of amperes (symmetrical rms, refer ##1 in table), 600 VAC maximum. •...
  • Page 19 SYSTEM DESIGN High Fault Short Circuit Current Ratings • Maximum fuse rating (A) – High fault short circuit current Suitable for use on a circuit capable of delivering not more than 65,000 rms symmetrical amperes, 480 VAC maximum, when protected by fuses of the stated class and rating (refer ##2 and ##3 in table).
  • Page 20 SYSTEM DESIGN • Circuit breakers – High fault short circuit current Suitable for use on a circuit capable of delivering not more than 65,000 rms symmetrical amperes, 480 VAC maximum, when protected by circuit breaker models noted in ##4, ##5 or ##6. Breaker 1: Eaton Breaker 2: GE Breaker 3: LS...

  • Page 21: Fuse Selection For Type 2 Coordination

    SYSTEM DESIGN 3.13 Fuse Selection for Type 2 Coordination Type 2 coordination is achieved by using semiconductor fuses. These fuses must be able to carry motor start current and have a total clearing I t less than the I t of the soft starter SCRs.

  • Page 22: Specifications

    SYSTEM DESIGN 3.14 Specifications Supply Mains voltage (L1, L2, L3) EMX4e-xxxxX-V5 ............200~525 VAC (± 10%) EMX4e-xxxxX-V7 ............380~600 VAC (± 10%) Control voltage (A1, A2, A3) EMX4e-xxxxX-xx-C1 (A1, A2) ....110~120 VAC (+10%/-15%), 600 mA EMX4e-xxxxX-xx-C1 (A2, A3) ....220~240 VAC (+10%/-15%), 600 mA EMX4e-xxxxX-xx-C2 (A1, A2) ......

  • Page 23: Disposal Instructions

    SYSTEM DESIGN Environmental Operating temperature ....-10 ˚C~60 ˚C, above 40 ˚C with derating Storage temperature ..............-25 °C~+ 60 °C Operating Altitude ....... 0~1000 m, above 1000 m with derating Humidity ..............5%~95% Relative Humidity Pollution degree ..............Pollution Degree 3 Vibration ..................

  • Page 24: Installation

    INSTALLATION 4. Installation WARNING Do not apply mains voltage to the starter until all wiring is complete. WARNING Always apply control voltage before (or with) mains voltage. 4.1 Command Source The EMX4e can be started and stopped via the digital inputs, remote keypad, communication network or smart card.

  • Page 25: Inputs

    INSTALLATION 4.3 Inputs CAUTION The control inputs are powered by the soft starter. Do not apply external voltage to the control input terminals. NOTE Cables to the control inputs must be segregated from mains voltage and motor cabling. B4 B5 10 11 12 13 14 15 21 22 B4, B5 Motor thermistor input...
  • Page 26 INSTALLATION Reset/Starter Disable The reset input (10, 11) is normally closed by default. The EMX4e will not perform a start if the reset input is open. The display will show "Not Ready". If the reset input opens while the EMX4e is running, the starter will remove power and allow the motor to coast to stop.

  • Page 27: Outputs

    INSTALLATION 4.4 Outputs Output terminals B4 B5 10 11 12 13 14 15 21 22 33 34 41 42 44 53 54 21, 22 Analog output 33, 34 Main contactor output 41, 42, 44 Relay output A (default = Run) 53, 54 Relay output B (default = Run) Analog Output...
  • Page 28 INSTALLATION Main Contactor Output The main contactor output (33, 34) closes as soon as the soft starter receives a start command and remains closed while the soft starter is controlling the motor (until the motor starts a coast to stop, or until the end of a soft stop). The main contactor output will also open if the soft starter trips.

  • Page 29: Control Voltage

    INSTALLATION 4.5 Control Voltage Control Voltage Terminals A3 A1 A2 • EMX4e-xxxxX-xx-C1 (110~120 VAC): A1, A2 • EMX4e-xxxxX-xx-C1 (220~240 VAC): A2, A3 • EMX4e-xxxxX-xx-C2 (24 VAC/VDC): A1, A2 UL compliant installation For models EMX4e-0184B to EMX4e-0580B to be UL compliant, supplementary or branch overcurrent protection must be used on the control circuit supply (A1, A2, A3), in accordance with the electrical code applicable at the installation location.

  • Page 30: Power Terminations

    INSTALLATION 4.6 Power Terminations The power input and output terminals are at the bottom of the unit. • Models EMX4e-0024B~EMX4e-0135B use cage clamps. Use only copper stranded or solid conductors, rated for 75 ºC or higher. • Models EMX4e-0184B~EMX4e-0580B use busbars. Use copper or aluminium conductors, stranded or solid, rated for 60 ºC/75 ºC.
  • Page 31 INSTALLATION Wiring Connectors Select a connector according to the wire size, material and your application requirements. A compression connector is recommended for models EMX4e-0184B to EMX4e-0580B. The recommended crimping tool is TBM8-750. Example connector – Example connector – Model aluminium cable copper cable EMX4e-0184B 61162...

  • Page 32: Typical Installation

    INSTALLATION 4.7 Typical installation The soft starter is installed with a main contactor (AC3 rated). Control voltage must be supplied from the input side of the contactor. The main contactor is controlled by the main contactor output (33, 34). 1/L1 2/T1 3/L2 4/T2...
  • Page 33 INSTALLATION Three-phase supply Main contactor Motor Semiconductor fuses (optional) Control voltage (soft starter) 10, 11 (S1) Reset Digital inputs 11, 12 (S2) Start/Stop Motor thermistor input 13, 14 Programmable input A (default = Input Trip (N/O)) Relay outputs 13, 15 Programmable input B (default = Input Trip (N/O)) Analog output...

  • Page 34: Quick Setup

    INSTALLATION 4.8 Quick Setup The Quick Setup Menu makes it easy to configure the EMX4e for common applications. The EMX4e guides you through the most common installation parameters, and suggests a typical setting for the application. You can adjust each parameter to suit your exact requirements.

  • Page 35: Setup Tools

    SETUP TOOLS 5. Setup Tools Setup Tools includes options to load or save parameters to a backup file, set the starter's network address, check the status of the inputs and outputs, reset the thermal models or test operation using the Run Simulation. To access the Setup Tools, press MENU to open the Menu then select Setup Tools.

  • Page 36: Load/Save Settings

    SETUP TOOLS Run Simulation NOTE ATTENTION! If mains voltage is connected, an error Remove Mains Volts message is shown. MENU to Continue 4. Press . The EMX4e simulates starting. Run Simulation Starting X:XXs MENU to Continue 5. Press . The EMX4e simulates running. Run Simulation Running Apply Stop Signal...

  • Page 37: Usb Save & Load

    SETUP TOOLS When the action has been completed, the screen will briefly display a confirmation message, then return to the previous menu level. 5.5 USB Save & Load The USB Save & Load menu lets you: • Save parameter settings and all event log entries to an external file (CSV format) •...

  • Page 38: Network Address

    SETUP TOOLS Load Master Parameters: The EMX4e will load the file Master_Parameters.par from the top level of the USB drive. This file can be created or edited using WinMaster management software. Load Custom Message: The EMX4e will load the files Custom_Message_A.txt and Custom_Message_B.txt from the top level of the USB drive.

  • Page 39: Digital I/O State

    SETUP TOOLS 5.7 Digital I/O State The top line of the screen shows the start/stop, reset Digital I/O State and programmable inputs. Inputs: 00000000 Outputs: 00000000 The bottom line of the screen shows the fixed Main Contactor output, then programmable outputs A and B. 10 11 12 13 14 15 21 22 33 34 41 42 44 53 54 10, 11: Reset input...

  • Page 40: Software Versions

    SETUP TOOLS 5.10 Software Versions The software versions screen reports the version of each software component in the starter: • user interface • motor control • remote keypad (if connected) • parameter list • bootloader • expansion card (if fitted) NOTE Updated software, including alternative languages, can be loaded into the starter via the USB port if required.

  • Page 41: Logs

    LOGS 6. Logs The Logs Menu provides information on events, trips and starter performance. To access the Logs Menu on the local keypad, press MENU to open the Menu then select Logs. On the remote keypad, press LOGS. 6.1 Event Log The Event Log stores details of the starter's most recent trips, warnings, and operations (including starts, stops and configuration changes).

  • Page 42: Qr Code

    This information can be useful when requesting assistance from your local supplier. NOTE You must install AuCom's free Pocket Technician app in order to read the QR code. EMX4e User Manual (710-18433-00C)

  • Page 43: Keypad And Feedback

    KEYPAD AND FEEDBACK 7. Keypad and Feedback 7.1 The Keypad Local keypad Remote keypad (if installed) Ready Trip Local Start Stop Reset Exit Menu Reset Store Menu Exit Store Logs Tools Four-line display for status and programming details. Status LEDs Menu navigation buttons: : Exit the menu or parameter, or cancel a parameter change.

  • Page 44: Remote Keypad

    KEYPAD AND FEEDBACK 7.2 Remote Keypad The remote keypad can be used to control the soft starter if parameter 1A Command Source is set to 'Remote Keypad'. • If the remote keypad is not selected as the command source, the START, STOP and RESET buttons will have no effect.

  • Page 45: Starter Status Leds

    KEYPAD AND FEEDBACK 7.4 Starter status LEDs Ready Trip Local Flashing name Ready The motor is stopped and the The motor is stopped and the starter is ready to start. starter is not ready to start: Restart Delay • waiting for the (parameter 5H) •...
  • Page 46 KEYPAD AND FEEDBACK Starter status screen Motor running current 69.0 A Starter status Running User Parameter 1 Parameter 10H and parameter 10I 69.0 A 415 V User Parameter 2 Current The current screen shows real-time line current on each phase. Phase Currents 000.0A 000.0A 000.0A...

  • Page 47: Operation

    Emergency mode can be used in conjunction with any command source. NOTE Although emergency mode operation satisfies the functionality requirements of Fire Mode, AuCom does not recommend its use in situations that require testing and/or compliance with specific standards as it is not certified.

  • Page 48: Auxiliary Trip

    OPERATION CAUTION Continued use of emergency mode is not recommended. Emergency mode may compromise the starter and/or motor life as all protections and trips are disabled. Using the starter in emergency mode will void the product warranty. 8.4 Auxiliary Trip An external trip circuit (such as a low pressure alarm switch for a pumping system) can be used to trip the soft starter and stop the motor.
  • Page 49 OPERATION Start Mode Stop Mode Application Compressor - screw - Constant Current Coast To Stop unloaded Conveyor - horizontal Constant Current TVR Soft Stop Conveyor - inclined Constant Current Coast To Stop Conveyor - vertical Constant Current Coast To Stop (bucket) Crusher - cone Constant Current...

  • Page 50: Soft Start Methods

    OPERATION 8.6 Soft Start Methods Constant Current Constant current is the traditional form of soft starting, which raises the current from zero to a specified level and keeps the current stable at that level until the motor has accelerated. Constant current starting is ideal for applications where the start current must be kept below a particular level.
  • Page 51 OPERATION Timed Voltage Ramp Timed voltage ramp (TVR) soft starting ramps the application of voltage to the motor over a defined time period. The voltage ramp reduces the initial starting torque and slows the motor's rate of acceleration. TVR starting can be useful for applications where multiple motors of different sizes are connected in parallel, and/or the loads are not mechanically linked.

  • Page 52: Stop Methods

    OPERATION 100% 1. Constant Acceleration Start Ramp Time (parameter 2B) Time • Fine-tuning Adaptive Control If the motor does not start or stop smoothly, adjust the adaptive control gain (parameter 2I). The gain setting determines how much the EMX4e will adjust future adaptive control starts and stops, based on information from the previous start.
  • Page 53 OPERATION Stop Time (parameter 2G) Time Adaptive Control for Stopping In an adaptive control soft stop, the EMX4e controls the current in order to stop the motor within a specified time. Adaptive Control can be useful in extending the stopping time of low inertia loads. If adaptive control is selected, the first soft stop will use timed voltage ramp.

  • Page 54: Programmable Parameters

    PROGRAMMABLE PARAMETERS 9. Programmable Parameters 9.1 Main Menu The main menu lets you view and change programmable parameters that control how the EMX4e operates. To open the main menu, press the MENU button then scroll to Main Menu and press MENU again. NOTE Parameters for smart card functions are only visible in the parameter list if the smart card is installed.

  • Page 55: Parameter List

    PROGRAMMABLE PARAMETERS 9.4 Parameter List Parameter Group Default Setting Motor Details Command Source Digital Input Motor Full Load Current Model dependent Locked Rotor Time 00:10 (mm:ss) Locked Rotor Current 600% Motor Service Factor 105% Reserved Motor Start/Stop Start Mode Constant Current Start Ramp Time 00:10 (mm:ss) Initial Current...
  • Page 56 PROGRAMMABLE PARAMETERS Parameter Group Default Setting Undercurrent Soft Trip and Log Overcurrent Soft Trip and Log Excess Start Time Soft Trip and Log Input A Trip Soft Trip and Log Input B Trip Soft Trip and Log Network Communications Soft Trip and Log Remote Keypad Fault Soft Trip and Log Frequency...
  • Page 57 PROGRAMMABLE PARAMETERS Parameter Group Default Setting Analog A Scale 4-20 mA Analog A Maximum Adjustment 100% Analog A Minimum Adjustment 000% Display Language English Temperature Scale Celsius Graph Timebase 30 seconds Graph Maximum Adjustment 400% Graph Minimum Adjustment Current Calibration 100% Adjustment Lock Read &...
  • Page 58 PROGRAMMABLE PARAMETERS Parameter Group Default Setting Subnet Mask DHCP Disable Location ID Advanced Tracking Gain Pedestal Detect Bypass Contactor Delay 100 ms Model Rating Model dependent Screen Timeout 1 minute Motor Connection Auto-detect Shunt Trip Mode Disable Pump Input Configuration Pressure Sensor Type None Pressure Units...
  • Page 59 PROGRAMMABLE PARAMETERS Parameter Group Default Setting Low Pressure Trip Level Low Pressure Start Delay 00:00:500 (mm:ss:ms) Low Pressure Response Delay 00:00:500 (mm:ss:ms) Pressure Control Pressure Control Mode Start Pressure Level Start Response Delay 00:00:500 (mm:ss:ms) Stop Pressure Level Stop Response Delay 00:00:500 (mm:ss:ms) Depth Protection Depth Trip Level...

  • Page 60: Motor Details

    PROGRAMMABLE PARAMETERS 9.5 1 Motor Details Command Source 1A – Options: Digital Input The EMX4e will accept start and stop (default) commands from the digital inputs. Network The EMX4e will accept start and stop commands from the communication expansion card. Remote Keypad The EMX4e will accept start and stop commands from the Remote Keypad.

  • Page 61: Motor Start/Stop

    PROGRAMMABLE PARAMETERS Reserved 1F – Description: This parameter is reserved for future use. 9.6 2 Motor Start/Stop Start Mode 2A – Options: Constant Current (default) Adaptive Control Description: Selects the soft start mode. NOTE The EMX4e will apply the current limit on all soft starts, including adaptive control.

  • Page 62: Protection Levels

    PROGRAMMABLE PARAMETERS Stop Mode 2F – Options: Coast To Stop TVR Soft Stop (default) Adaptive Control Description: Selects the stop mode. Stop Time 2G – Range: 0:00 - 4:00 (minutes:seconds) Default: 0 second Description: Sets the time for soft stopping the motor using timed voltage ramp or Adaptive Control.
  • Page 63 PROGRAMMABLE PARAMETERS Current Imbalance Delay 5B – Range: 0:00 - 4:00 (minutes:seconds) Default: 3 seconds Description: Slows the EMX4e's response to current imbalance, avoiding trips due to momentary fluctuations. Undercurrent 5C – Range: 0% - 100% Default: Description: Sets the trip point for undercurrent protection, as a percentage of motor full load current.

  • Page 64: Protection Action

    PROGRAMMABLE PARAMETERS Starts per Hour 5I – Range: 0 - 10 Default: Description: Sets the maximum number of starts the EMX4e will attempt in a 60 minute period. A setting of 0 disables this protection. Phase Sequence 5J – Options: Any Sequence (default) Positive Only Negative Only...
  • Page 65 PROGRAMMABLE PARAMETERS Trip and Reset The soft starter will remove power and the motor will coast to stop. The trip will reset after the auto-reset delay. Warn and Log The protection will be written to the event log and the display will show a warning message, but the soft starter will continue to operate.
  • Page 66 PROGRAMMABLE PARAMETERS Input A Trip 6G – Options: Soft Trip and Log (default) Warn and Log Soft Trip and Reset Log Only Trip Starter Trip + Shunt Relay Trip and Reset Description: Selects the soft starter's response to the protection event. Input B Trip 6H –...

  • Page 67: Inputs

    PROGRAMMABLE PARAMETERS Motor Overtemperature 6M – Options: Soft Trip and Log (default) Warn and Log Soft Trip and Reset Log Only Trip Starter Trip + Shunt Relay Trip and Reset Description: Selects the soft starter's response to the protection event. Motor Thermistor Circuit 6N –...
  • Page 68 PROGRAMMABLE PARAMETERS Input A Trip Delay 7C – Range: 0:00 - 4:00 (minutes:seconds) Default: 0 second Description: Sets a delay between the input activating and the soft starter tripping. Input A Initial Delay 7D – Range: 00:00 - 30:00 (minutes:seconds) Default: 0 second Description: Sets a delay before an input trip can occur.

  • Page 69: Relay Outputs

    PROGRAMMABLE PARAMETERS Input A Name 7J – Options: Input A Trip (default) Controller Low Pressure High Pressure Vibration Alarm Pump Fault Field Trip Low Level Interlock Trip High Level Motor Temperature No Flow Motor Protection Starter Disable Feeder Protection Custom Message Description: Selects a message for the keypad to display when Input A is active.
  • Page 70 PROGRAMMABLE PARAMETERS Warning The relay closes when the starter issues a 6 Protection Action warning (refer to page 62). Trip The relay closes when the starter trips 6 Protection Action (refer to on page 62). Low Current Flag The relay closes when the low current flag activates while the motor is running (refer Low Current Flag to parameter 8G...
  • Page 71 PROGRAMMABLE PARAMETERS Low Current Flag 8G – The EMX4e has low and high current flags to give early warning of abnormal operation. The current flags can be configured to indicate an abnormal current level during operation, between the normal operating level and the undercurrent or instantaneous overcurrent trip levels.

  • Page 72: Analog Output

    PROGRAMMABLE PARAMETERS 9.11 9 Analog Output Analog Output A 9A – Options: Current (% FLC) Current as a percentage of motor full load (default) current. Motor Temperature The motor's temperature, calculated by the thermal model. Motor pf Motor power factor, measured by the soft starter.
  • Page 73 PROGRAMMABLE PARAMETERS Graph Timebase 10C – Options: 30 seconds (default) 1 minute 30 minutes 1 hour Description: Sets the graph time scale. The graph will progressively replace the old data with new data. Graph Maximum Adjustment 10D – Range: 0% – 600% Default: 400% Description:...
  • Page 74 PROGRAMMABLE PARAMETERS Motor pf The motor's power factor, measured by the soft starter. Motor Temperature The motor's temperature, calculated by the thermal model. Hours Run The number of hours the motor has run via the soft starter. Number of Starts The number of starts the EMX4e has completed since the start counter was last reset.
  • Page 75 PROGRAMMABLE PARAMETERS User Parameter 2 10I – User Parameter 1 Options: Refer to parameter 10H for details. Default: Mains Frequency Description: Selects which information will be displayed on the main User Parameter 1 monitoring screen. Refer to parameter 10H for details. User Parameter 3 10J –...

  • Page 76: Communications Card

    PROGRAMMABLE PARAMETERS 9.13 12 Communications Card Modbus Address 12A – Range: 1 - 254 Default: Description: Sets the Modbus RTU network address for the soft starter. Modbus Baud Rate 12B – Options: 4800 9600 (default) 19200 38400 Description: Selects the baud rate for Modbus RTU communications. Modbus Parity 12C –...
  • Page 77 PROGRAMMABLE PARAMETERS Gateway Address 12H – Range: 0 - 255 Default: Description: Sets the first component of the network gateway address. The gateway address is set using parameters 12H~12K and the default address is 192.168.0.100. Gateway Address 12I – Range: 0 - 255 Default: Description:...
  • Page 78 PROGRAMMABLE PARAMETERS Subnet Mask 12P – Range: 0 - 255 Default: Description: Sets the first component of the network subnet mask, for Ethernet communications. The subnet mask is set using parameters 12P~12S and the default mask is 255.255.255.0. Subnet Mask 12Q –...

  • Page 79: Advanced

    PROGRAMMABLE PARAMETERS 9.14 20 Advanced Tracking Gain 20A – Range: 1% - 200% Default: Description: Fine-tunes the behaviour of the adaptive control algorithm. Pedestal Detect 20B – Range: 0% - 200% Default: Description: Adjusts the behaviour of the adaptive control algorithm for soft stop.

  • Page 80: Smart Card Parameters

    PROGRAMMABLE PARAMETERS Motor Connection 20F – Options: Auto-detect (default) In-line Description: Override the soft starter's motor connection checks, where the connection is not correctly recognised on a grounded delta supply. Shunt Trip Mode 20G – Options: Disable (default) Enable Description: Reconfigures the soft starter's main contactor output (33, 34) for use as a shunt trip relay.

  • Page 81: Troubleshooting

    TROUBLESHOOTING 10. Troubleshooting 10.1 Protection Responses When a protection condition is detected, the EMX4e will write this to the event log and may also trip or issue a warning. The soft starter's response depends on the Protection Action setting (parameter group 6). Some protection responses cannot be adjusted by the user.
  • Page 82 TROUBLESHOOTING Display Possible cause/Suggested solution Where 'X' is 1, 2 or 3. Current Read Err Lx Internal fault (PCB fault). The output from the CT circuit is not close enough to zero when the SCRs are turned off. Contact your local supplier for advice.
  • Page 83 TROUBLESHOOTING Display Possible cause/Suggested solution • Check that bypass contactors are operating. Heatsink overtemperature • Check that cooling fans are operating (if fitted). • If mounted in an enclosure, check if ventilation is adequate. • The soft starter must be mounted vertically. Related parameters: None The flow sensor connected to the smart card has activated high High Flow...
  • Page 84 TROUBLESHOOTING Display Possible cause/Suggested solution This trip is not adjustable. L1 phase loss During pre-start checks the starter has detected a phase loss as L2 phase loss L3 phase loss indicated. In run state, the starter has detected that the current on the affected phase has dropped below 10% of the programmed motor FLC for more than 1 second, indicating that either the incoming phase or connection to the motor has been lost.
  • Page 85 TROUBLESHOOTING Display Possible cause/Suggested solution This trip is not adjustable. Motor connection • Ensure the motor is connected to terminals T1, T2, T3 using in-line (three wire) connection. The EMX4e does not support inside delta (six wire) connection. • If the soft starter is connected to a grounded delta mains supply, the starter may incorrectly detect the motor Motor Connection configuration.
  • Page 86 TROUBLESHOOTING Display Possible cause/Suggested solution The motor thermistor input has been enabled and: Motor thermistor • The resistance at the thermistor input has exceeded 3.6 kΩ for more than one second. • The motor winding has overheated. Identify the cause of the overheating and allow the motor to cool before restarting.
  • Page 87 TROUBLESHOOTING Display Possible cause/Suggested solution The phase sequence on the soft starter's input terminals (L1, L2, Phase sequence L3) is not valid. Check the phase sequence on L1, L2, L3 and ensure the setting in parameter 5J is suitable for the installation. Related parameters: 5J, 6L This trip is not adjustable.

  • Page 88: General Faults

    TROUBLESHOOTING Display Possible cause/Suggested solution The thermistor input has been enabled and: Thermistor circuit • The resistance at the input has fallen below 20 Ω (the cold resistance of most thermistors will be over this value) or • A short circuit has occurred. Check and resolve this condition. Related parameters: None The EMX4e is internally bypassed and has drawn high current Time-overcurrent...
  • Page 89 TROUBLESHOOTING Symptom Probable Cause The soft starter does not • The soft starter will only accept commands from the Command Source respond to commands inputs if parameter 1A is set to from the control inputs. Digital Input. Check the setting of 1A. •...
  • Page 90 TROUBLESHOOTING Symptom Probable Cause Motor does not reach full • If the start current is too low, the motor will not speed. produce enough torque to accelerate to full speed. The soft starter may trip on excess start time. NOTE Make sure the motor starting parameters are appropriate for the application and that you are using the intended motor starting profile.
  • Page 91 TROUBLESHOOTING Symptom Probable Cause File Missing A USB function has been selected in the menu, but the required file cannot be found. Save/Load Master Parameters uses a file called Master_Parameters.par, at the top level of the USB drive. For these functions to work correctly, do not move or rename this file.
