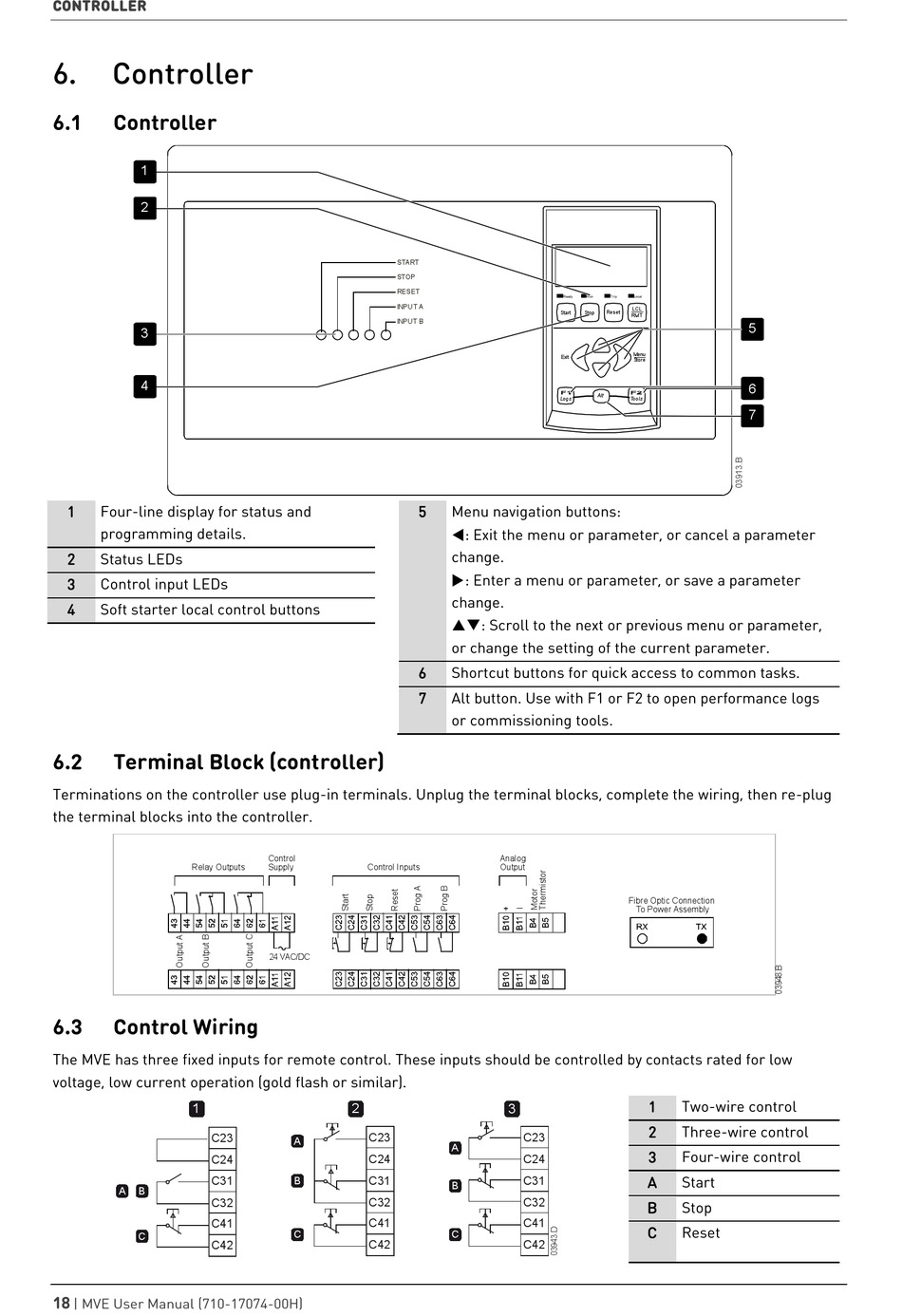

CONTROLLER

6. Controller
6.1 Controller
1
2
3
4
1 Four-line display for status and
programming details.
2 Status LEDs
3 Control input LEDs
4 Soft starter local control buttons
6.2

Terminal Block (controller)

Terminations on the controller use plug-in terminals. Unplug the terminal blocks, complete the wiring, then re-plug
the terminal blocks into the controller.
Relay Outputs
6.3

Control Wiring

The MVE has three fixed inputs for remote control. These inputs should be controlled by contacts rated for low
voltage, low current operation (gold flash or similar).
1
C23
C24
C31
A B
C32
C41
C
C42
18
| MVE User Manual (710-17074-00H)
START
STOP
RESET
INPU T A
INPUT B
5
6
7
Control
Supply
Control Inputs
24 VAC/DC
2
C23
A
C24
C31
B
C32
C41
C
C42
Ready Run T rip
Reset
Start Stop
Exit
Alt
Logs
Menu navigation buttons:
: Exit the menu or parameter, or cancel a parameter
change.
: Enter a menu or parameter, or save a parameter
change.
: Scroll to the next or previous menu or parameter,
or change the setting of the current parameter.
Shortcut buttons for quick access to common tasks.
Alt button. Use with F1 or F2 to open performance logs
or commissioning tools.
Analog
Output
3
C23
A
C24
C31
B
C32
C41
C
C42
Local
LCL
RMT
5
Menu
Store
6
Tools
7
Fibre Optic Connection
To Power Assembly
1 Two-wire control
2 Three-wire control
3 Four-wire control
A Start
B Stop
C Reset
