Phase 5 Coin Microprocessor Control Panel Assembly - ADC AD-15 Parts Manual

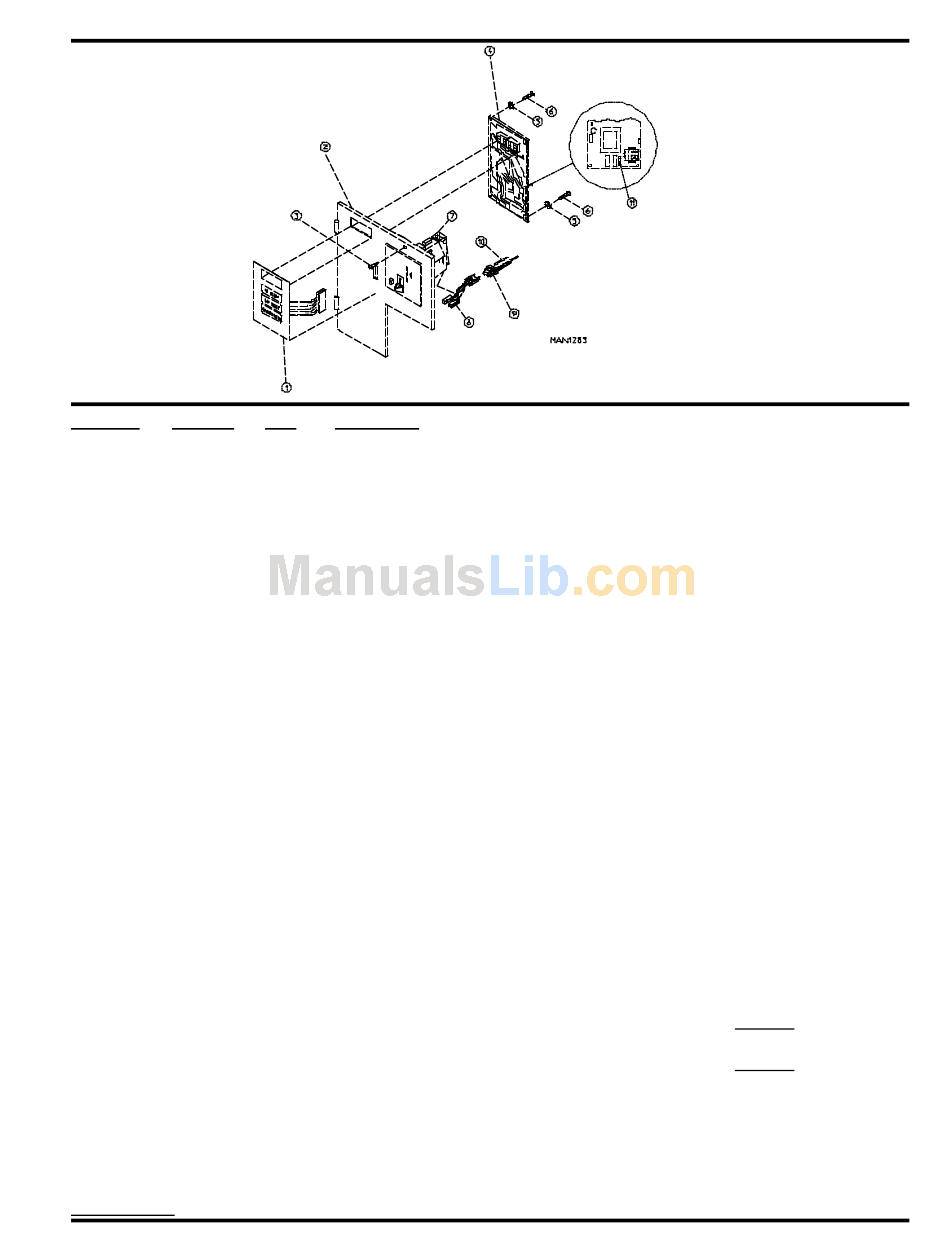

Phase 5 Coin Microprocessor Control Panel Assembly

Illus. No. Part No.
1 112526
2 883537
883538
883582
883581
883539
883540
883580
883579
3 150309
4 137213
824998
5 153010
6 150005
7 --------
8 --------
9 137023
10 137021
880772
122800
11 136048
IMPORTANT: Check label on computer chip to verify correct part number for controller.
Telephone: (508) 678-9000
Qty. Description
1 Coin Keyboard Label Assembly
1 Phase 5 Coin Control Panel Assembly
(includes illus. nos. 1, 2, and 4 through 6)
(for models mfd. as of June 25, 2002)
1 Phase 5 Coin Control Panel Assembly with Battery Option
(includes illus. nos. 1, 2, and 4 through 6)
(for models mfd. as of June 25, 2002)
1 Phase 5 Coin Control Panel Assembly with Battery Option
(includes illus. nos. 1, 2, and 4 through 6)
(for models mfd. prior to June 25, 2002)
1 Phase 5 Coin Control Panel Assembly
(includes illus. nos. 1, 2, and 4 through 6)
(for models mfd. prior to June 25, 2002)
1 Coin Control Panel ONLY
(for models mfd. as of June 25, 2002)
1 Coin Control Panel ONLY with Battery Bracket
(for models mfd. as of June 25, 2002)
1 Coin Control Panel ONLY
(for models mfd. prior to June 25, 2002)
1 Coin Control Panel ONLY with Battery Bracket
(for models mfd. prior to June 25, 2002)
1 #10-16 x 1/2" Hex Head TEK Crimptite Screw
1 Phase 5 Coin Controller ONLY
1 Phase 5 Battery Clip
2 #6 Star Washer
2 #6-32 x 1/4" Phillips Round Head Machine Screw
1 Microprocessor Coin Acceptor
(refer to Microprocessor Coin Acceptors Listing on page 60)
1 Optic Switch ONLY
(refer to Microprocessor Coin Acceptors Listing on page 60)
1 Optic Switch Connector ONLY
3 Microprocessor Socket ONLY
1 Single Coin Optical Switch Harness
1 Microprocessor (female) Pin Extraction Tool
1 1/8-Amp (Slo-Blo) Fuse ONLY
7
