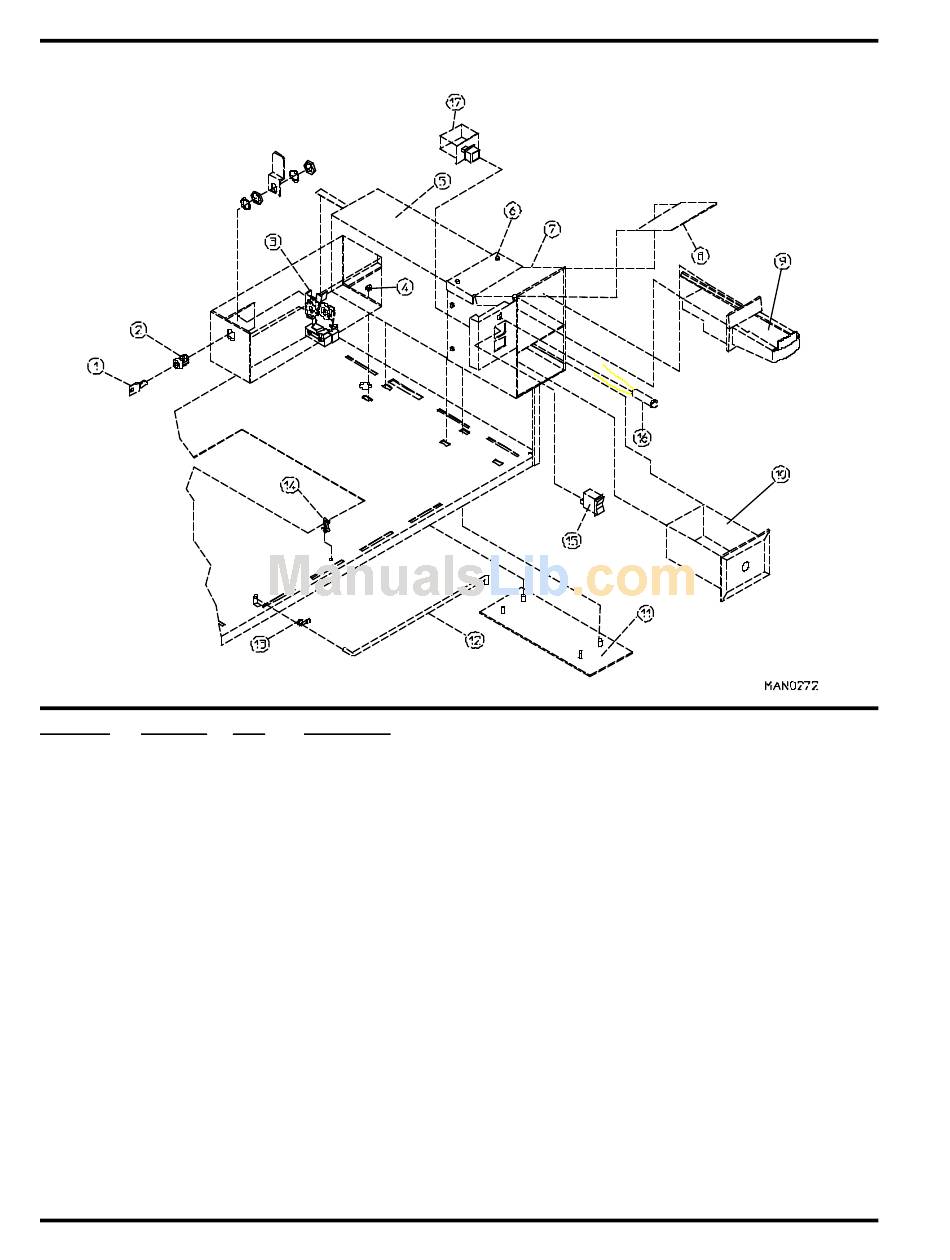

Slide Meter Case Assembly For Models Mfd. Prior To January 13, 1995; For Models Mfd. Prior To January 13, 1995 - ADC AD-15 Parts Manual

18
Illus. No. Part No.
1* 160199
2 160099
3 125908
4 152014
5 883165
6 154203
7 801700
8 315404
9 --------
10 --------
11 801701
12 102502
13 102601
14 102600
15 122400
16 123005
17 131917
* Specify key number when ordering.
American Dryer Corporation
Qty. Description
1 Key ONLY for Slide Meter Lock
1 Lock/Key/Cam and Hardware
1 Slide Meter Accumulator - 24 VAC
4 1/4-20 Free Spin Wash Nut
1 Slide Meter Case ONLY with Door Less Lock
6 1/4" Drive Rivet
1 Slide Meter Extension ONLY with Mirror
(includes illus. nos. 14 and 15)
1 Stainless Steel Mirror ONLY
1 Typical Slide Meter Coin Chute (not available from ADC)
1 Typical Slide Meter Coin Box (not available from ADC)
1 Slide Meter Case Mounting Plate
1 Control Door Support Rod
1 Control Door Rod Retainer Clip
1 Control Door Support Rod Catch
1 Rocker Heat Selector Switch
1 Red Indicator Light - 24 VAC
1 Push-To-Start Relay - 24 VAC
Slide Meter Case Assembly

For Models Mfd. prior to January 13, 1995
