Phase 5 Coin And Opl Microprocessor Control Box Assembly - ADC AD-15 Parts Manual

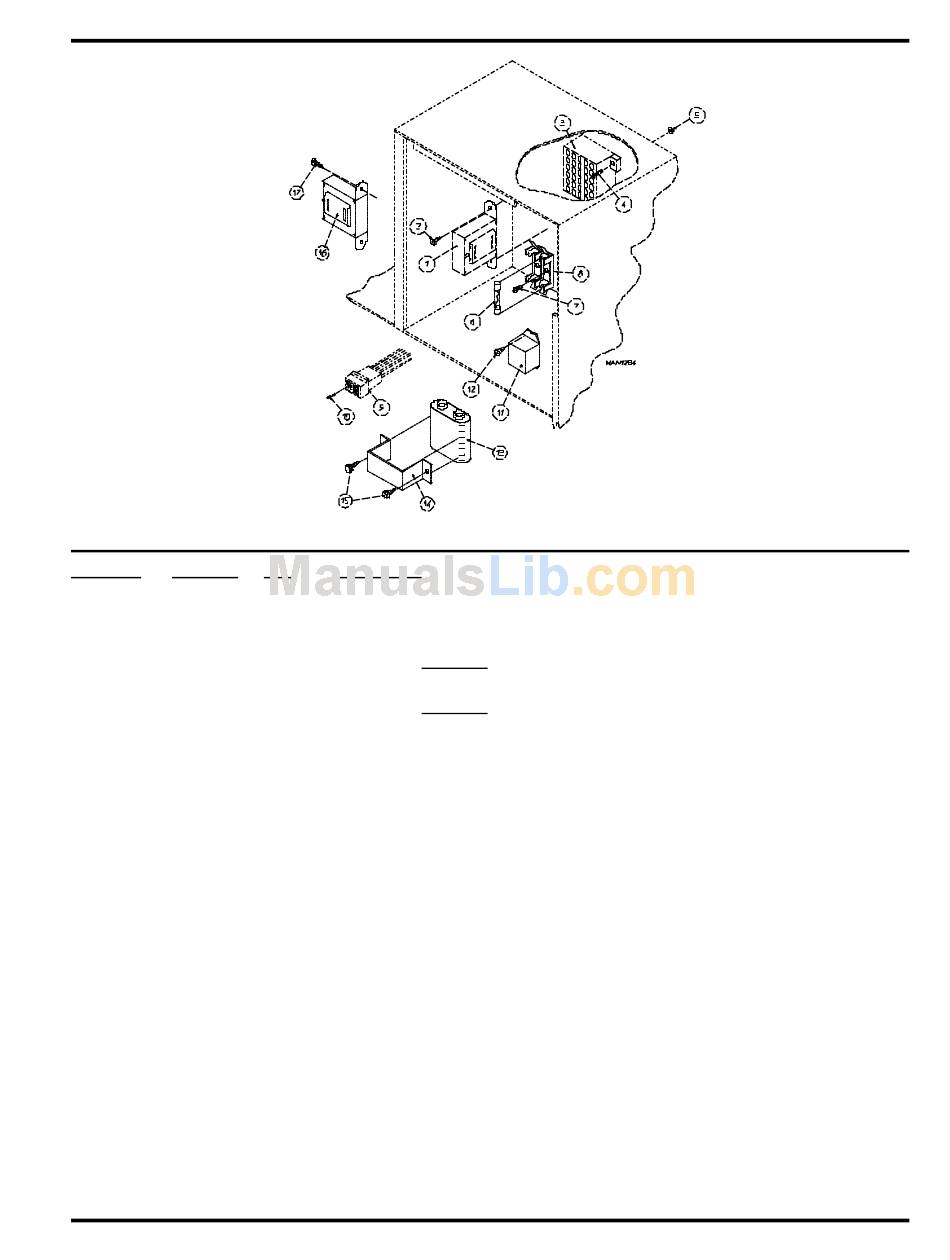

Phase 5 Coin and OPL Microprocessor Control Box Assembly

Illus. No. Part No.
1 --------
2 150300
3 120715
4 150002
5 151000
6 136057
7 150301
8 136008
9 122641
10 122706
11 131931
12 150309
13 137035
14 323583
15 150300
16 132002
17 150300
* As required.
Telephone: (508) 678-9000
Qty. Description
1 24 VAC Control Voltage Transformer
(refer to AD-15/AD-25 Transformer Usage Listing for Gas/Steam
Dryers on page 62)
(refer to AD-15/AD-25 Transformer Usage Listing for Electric
Dryers on page 63)
2 #10-16 x 1/2" Hex Washer TEK Screw
1 30-Position Terminal Block
2 #6-32 x 1" Phillips Round Head Screw
2 #6-32 Pal Nut
* 1/2-Amp (Slo-Blo) Fuse
* #8-18 x 7/16" Self Drilling Screw
* Fuse Block/Strip ONLY
1 15-Pin Microprocessor Connector
* Sockets ONLY
1 Steam Valve Relay - 24 VAC
(for mechanical steam damper models Only)
2 #10-16 x 1/2" Hex Head TEK Crimptite Screw
1 Motor Capacitor
(for mechanical steam damper models Only)
1 Capacitor Bracket
(for mechanical steam damper models Only)
2 #10-16 x 1/2" Hex Washer TEK Screw
1 Transformer
(for mechanical steam damper models 208 volts and higher)
2 #10-16 x 1/2" Hex Washer TEK Screw
9
