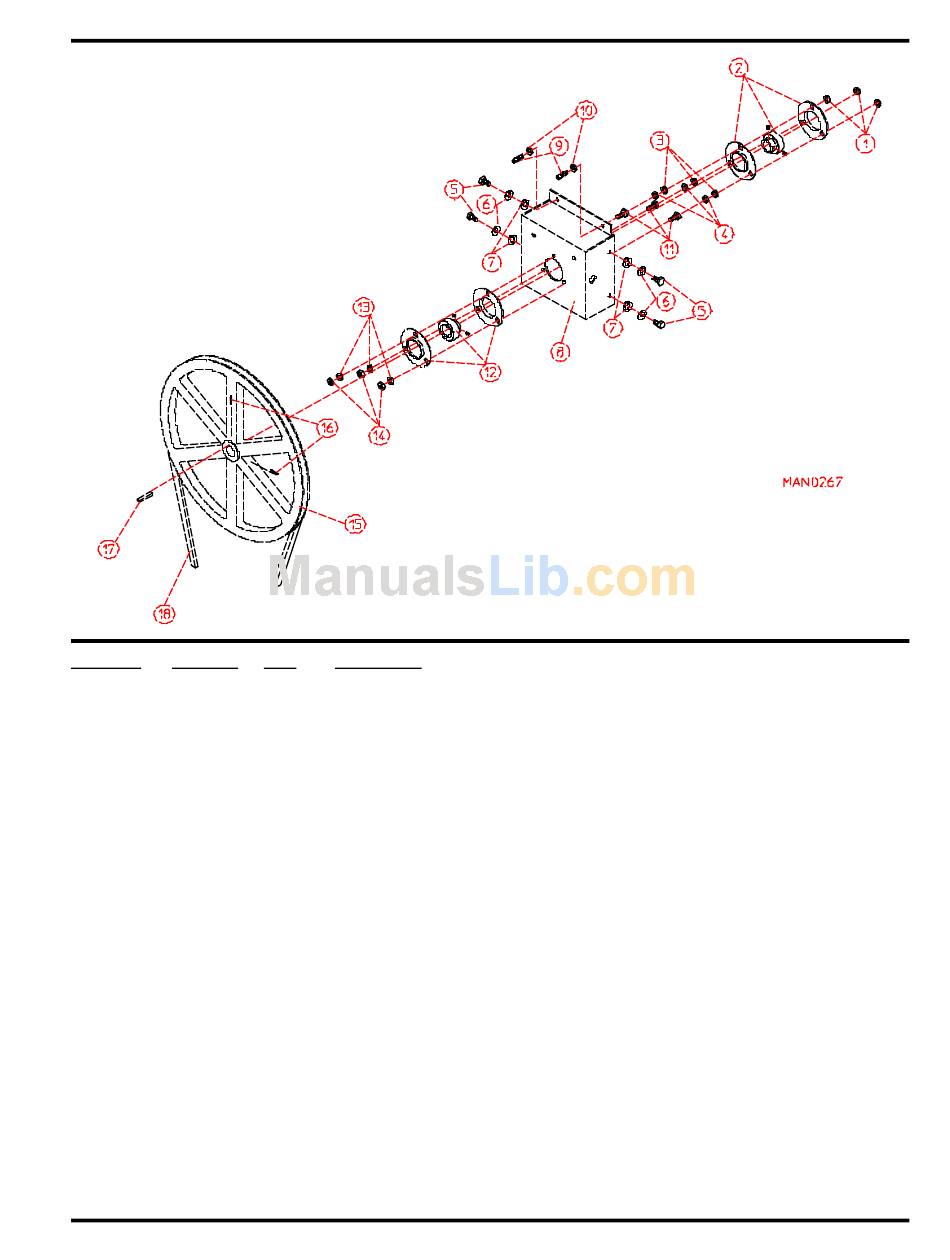

AD-15/AD-25 Basket (Tumbler) Bearing Assembly

Illus. No. Part No.
1 153002
2 880213
3 153002
4 152004
5 150501
6 153002
7 153004
8 801100
801105
9 150610
10 152004
11 150501
12 880201
13 153002
14 152004
15 101100
16 154301
17 100713
18 100108
100107
Telephone: (508) 678-9000
Qty. Description
3 5/16" Lock Washer
1 1-1/4" Flange Bearing ONLY
3 5/16" Lock Washer
3 5/16-18 Hex Nut
4 5/16-18 x 3/4" Hex Head Machine Bolt
4 5/16" Lock Washer
4 3/8" Flat Washer
1 1" Bearing Box Assembly Complete
(includes illus. nos. 8 through 14)
1 Bearing Box ONLY
2 5/16-18 x 1-1/2" Allen Setscrew
2 5/16-18 Hex Nut
3 5/16-18 x 3/4" Hex Head Machine Bolt
1 1" Flange Bearing ONLY
3 5/16" Lock Washer
3 5/16-18 Hex Nut
1 18" Pulley ONLY
2 5/16-18 x 5/16" Setscrew
1 1/4" x 1/4" x 7/8" Key
1 5L-680 V-Belt (basket [tumbler] to idler)
For AD-15
1 5L-670 V-Belt (basket [tumbler] to idler)
For AD-25
