Ad-15/Ad-25 Control Vault Assembly - ADC AD-15 Parts Manual

10
Illus. No. Part No.
1 802112
802117
802110
802115
2 160028
3 875061
160105*
4 802020
802019
125915
5 802018
6 152014
7 102502
8 102601
9 102603
* Specify key number when ordering.
American Dryer Corporation
Qty. Description
1 Microprocessor Coin Vault Assembly Complete
(includes illus. nos. 1 through 6)
1 Microprocessor Coin Vault ONLY
1 Non-Microprocessor Coin Vault Assembly Complete
(includes illus. nos. 1 through 6)
1 Non-Microprocessor Coin Vault ONLY
1 Cam for 1/4 Turn Lock ONLY
1 1/4 Turn Lock with Key and Cam
1 1/4 Turn Mer-Pel Key ONLY
1 1/4 Turn Coin Box Assembly
(includes illus. nos. 2 through 5)
1 1/4 Turn Coin Box ONLY without Faceplate
1 High Security (Greenwald) Coin Box ONLY with Key
1 1/4 Turn Coin Box Faceplate ONLY
4 1/4-20 Free Spin Wash Nut
1 Control Door Support Rod
1 Control Door Rod Retainer Clip
1 Control Door Rod Catch

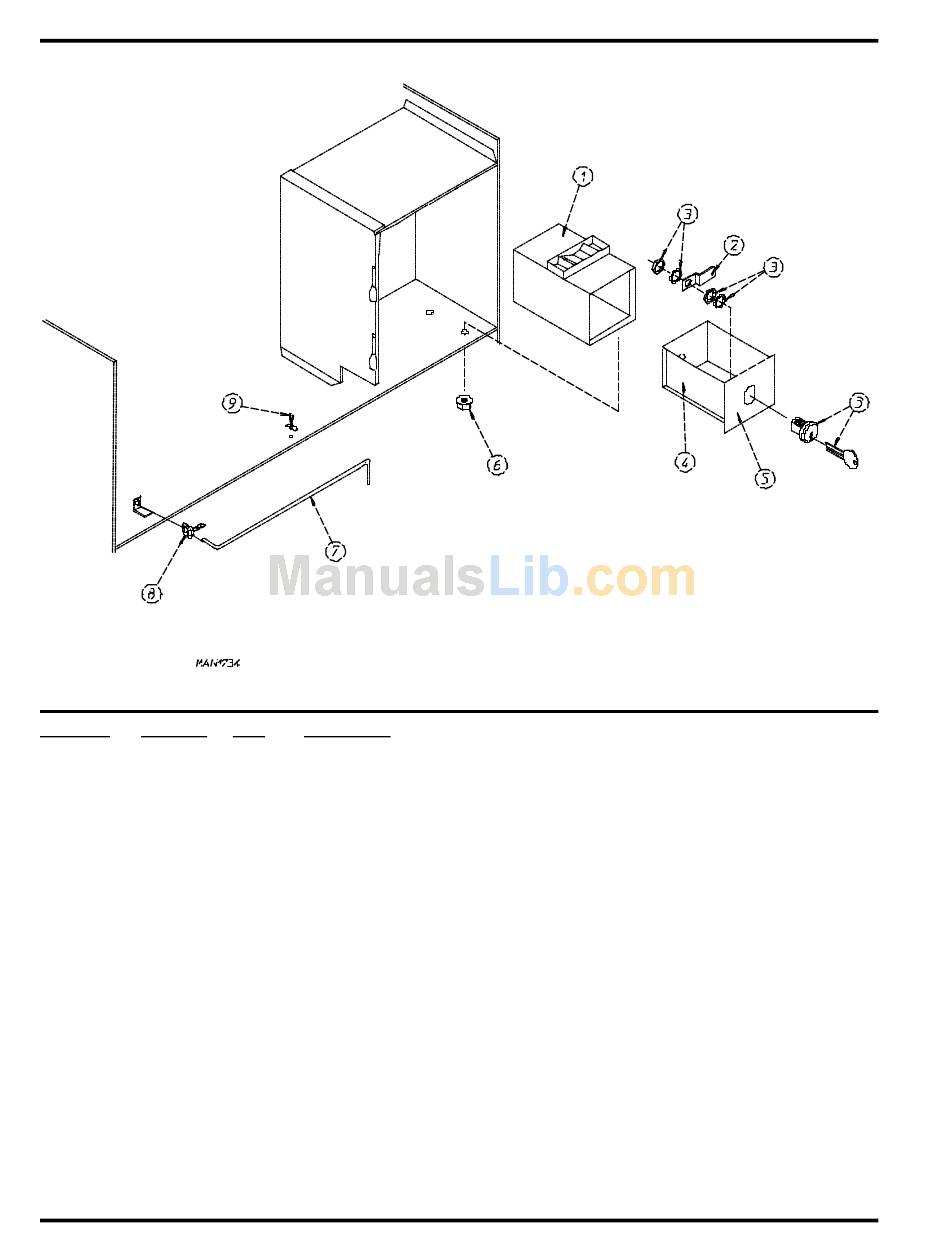

AD-15/AD-25 Control Vault Assembly
