3-Phase (3Ø) Motor, Electric Relay Panel Assembly - ADC AD-15 Parts Manual

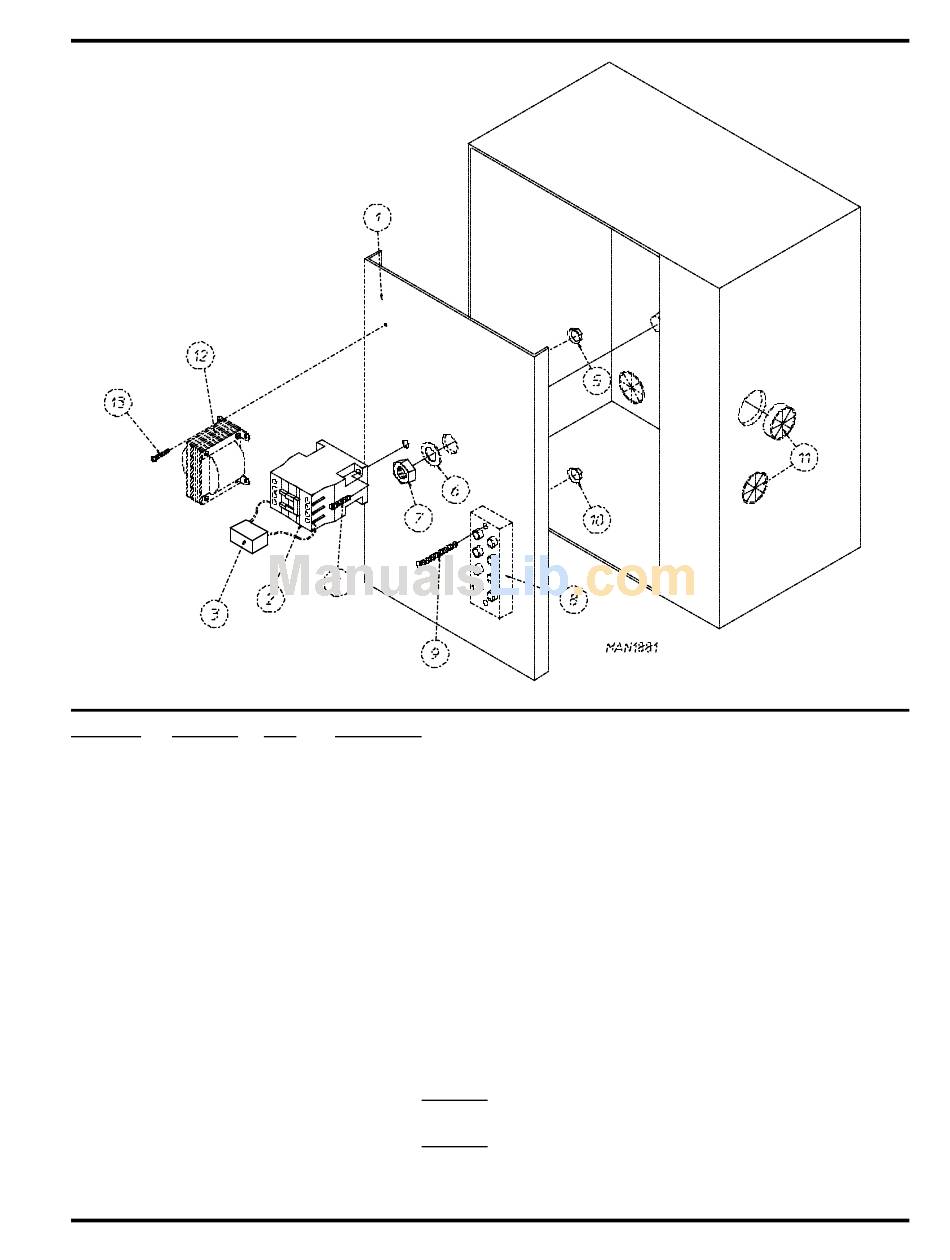

3-Phase (3ø) Motor, Electric Relay Panel Assembly
Illus. No. Part No.
1 322812
2 132447
3 137015
4 150103
5 151001
6 153002
7 152004
8 120701
9 150008
10 151000
11 121300
12 ---------
13 150300
-- 322809
-- 150301
Telephone: (508) 678-9000
Qty. Description
1 Back Electrical Box Component Mounting Plate
1 Impellor Contactor (208/230/240v, 50/60 Hz) 24 VAC
1 RC Filter
(for microprocessor models Only)
2 #8-32 x 3/4" Phillips Round Head Machine Screw
2 #8-32 Pal Nut
1 5/16" Lock Washer
1 5/16-18 Hex Nut
1 4-Position Terminal Block
2 #6-32 x 1-1/4" Slotted Round Head Machine Screw
2 #6-32 Pal Nut
3 Open/Closed Bushing
1 Step Down Transformer
(refer to AD-15/AD-25 Transformer Usage Listing for Gas/Steam
Dryers on page 62)
(refer to ADE-15/ADE-25 Transformer Usage Listing for Electric
Dryers on page 63)
2 #10-16 x 1/2" Hex Washer TEK Screw
1 Back Electrical Box Cover...Not Illustrated
4 #8-18 x 7/16" Phillips Round Head TEK Screw...Not Illustrated
51
