For Models Mfd. Prior To January 13, 1995 - ADC AD-15 Parts Manual

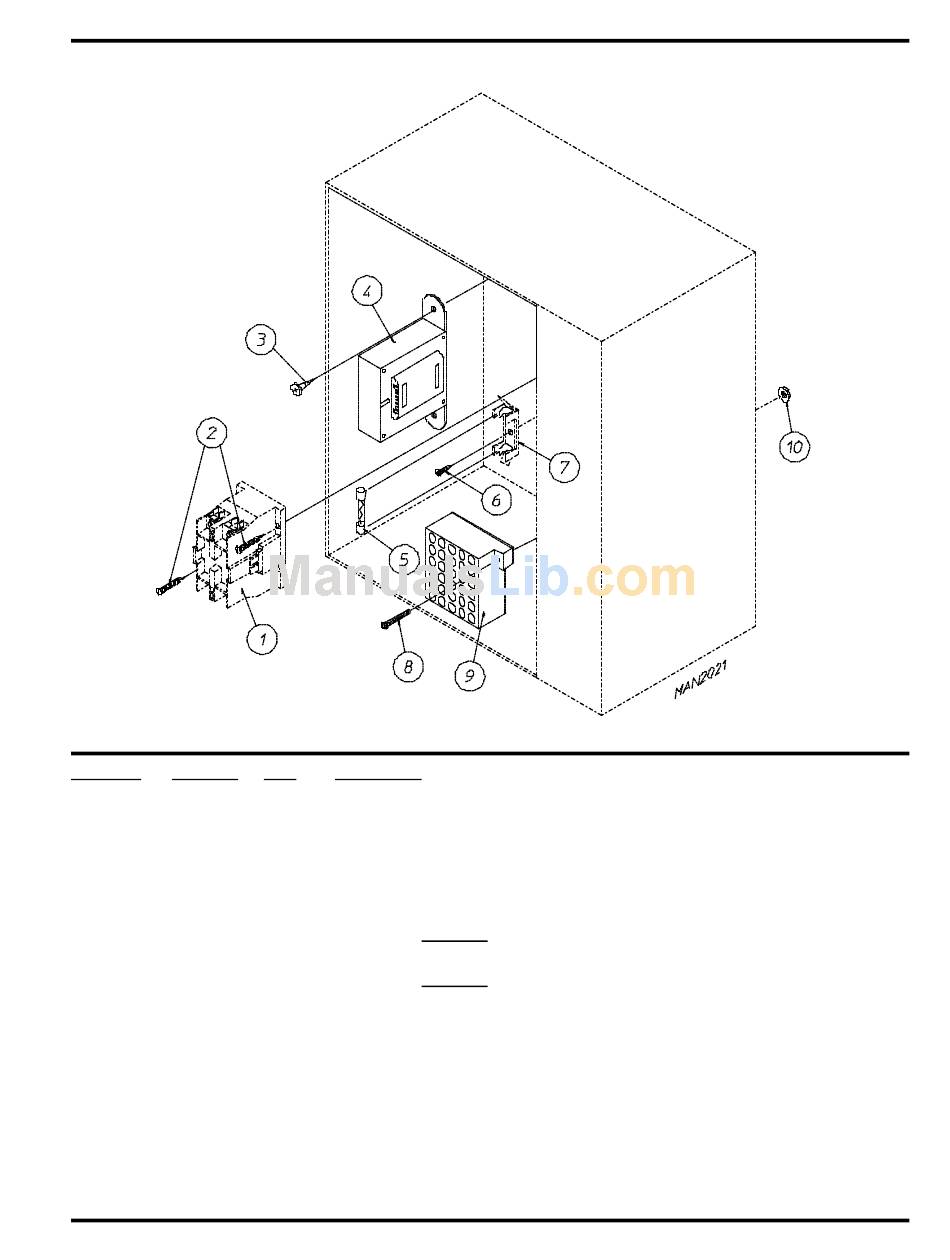

Slide Meter Control Box Assembly

For Models Mfd. prior to January 13, 1995

Illus. No. Part No.
1 132475
2 150299
3 150300
4 --------
5 136057
6 150301
7 136008
8 150002
9 120715
10 151000
-- 322809
-- 150301
* As required.
Telephone: (508) 678-9000
Qty. Description
1 2-Pole Contactor - 24 VAC
2 #10 x 1" Hex Washer TEK Screw
2 #10-16 x 1/2" Hex Washer TEK Screw
1 24 VAC Transformer ONLY
(refer to AD-15/AD-25 Transformer Usage Listing for Gas/Steam
Dryers on page 62)
(refer to ADE-15/ADE-25 Transformer Usage Listing for Electric
Dryers on page 63)
* 1/2-Amp (Slo-Blo) Fuse ONLY
* #8-18 x 7/16" Phillips Pan Head TEK Screw
* Fuse Block/Strip ONLY
2 #6-32 x 1" Round Head Machine Screw
1 30-Position Terminal Block ONLY
2 #6-32 Pal Nut
1 Back Electrical Box Cover...Not Illustrated
4 #8-18 x 7/16" Phillips Pan Head TEK Screw...Not Illustrated
53
