Basket (Tumbler)/Support Assembly - ADC AD-15 Parts Manual

26
Illus. No. Part No.
1* 800702
800731
817085
800752
2 150313
3 301305
301420
4** 150518
5 882049
6 153004
7 800611
8 152005
9 153005
10 153004
11 116002
-- 401010
* Felt collar is not included and must be ordered separately.
** For models mfd. prior to January 21, 2002 ONLY.
American Dryer Corporation

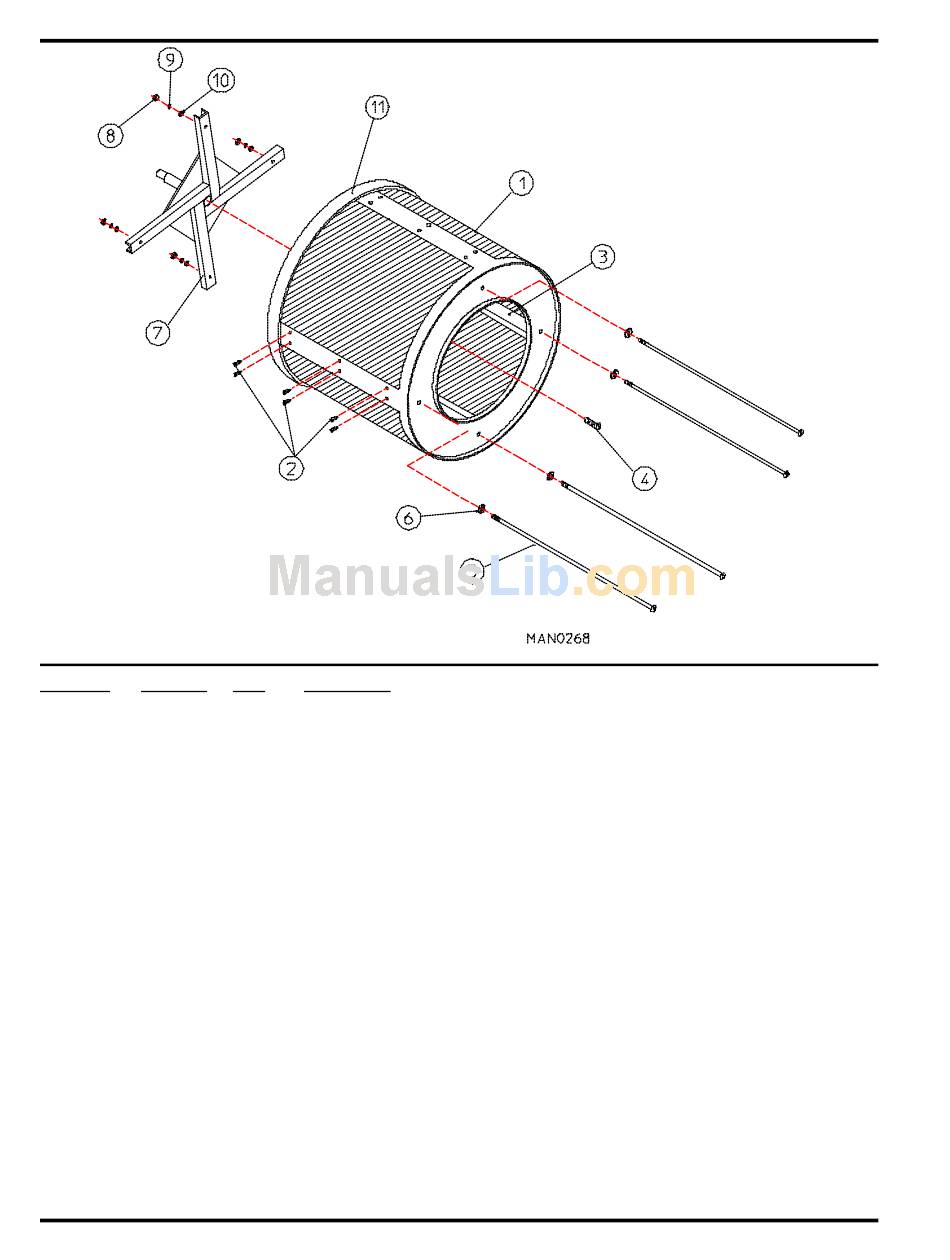

AD-25 Basket (Tumbler)/Support Assembly
Qty. Description
1 AD-25 Galvanized Basket (tumbler) ONLY (without felt collar)
1 AD-25 Stainless Steel Basket (tumbler) ONLY (without felt collar)
1 AD-25 Galvanized Basket (tumbler) and Support Assembly
(includes illus. nos. 1 through 10)
1 AD-25 Stainless Steel Basket (tumbler) and Support Assembly
(includes illus. nos. 1 through 10)
24 #10-16 x 1/2" TORX + BTN, Type 1
4 AD-25 Galvanized Basket (tumbler) Rib ONLY
4 AD-25 Stainless Steel Basket (tumbler) Rib ONLY
1 5/16-18 x 3/8" Socket Button Head Screw
4 5/16" to 3/8" Tie Rod Kit
(includes illus. nos. 5, 6, and 8 through 10)
4 5/16" to 3/8" Flat Washer
1 AD-25 Basket (tumbler) Support ONLY
4 3/8-18 Hex Nut
4 3/8" Lock Washer
4 3/8" Flat Washer
1 Felt Collar ONLY
1 #847 Adhesive for Felt Collar (5.0 oz. tube)
88 Currant Road / Fall River, MA 02720-4781
