Ad-15/Ad-25 Outer Top/Back Guard Assembly - ADC AD-15 Parts Manual

Adc dryer parts manual 24 vac phase 5 1992 thru june 30, 2002
Hide thumbs Also See for AD-15:
Table of Contents

Advertisement

58
Illus. No.
Part No.
1
322809
2
150301
3*
330076
330075
4
150301
5
150301
6**
312532
312531
7
330086
314512
8
150301
9
103500
*
There is no top back guard on gas heat reclaimer models and steam models.
** There is no outer top on gas heat reclaimer models and steam models.
American Dryer Corporation

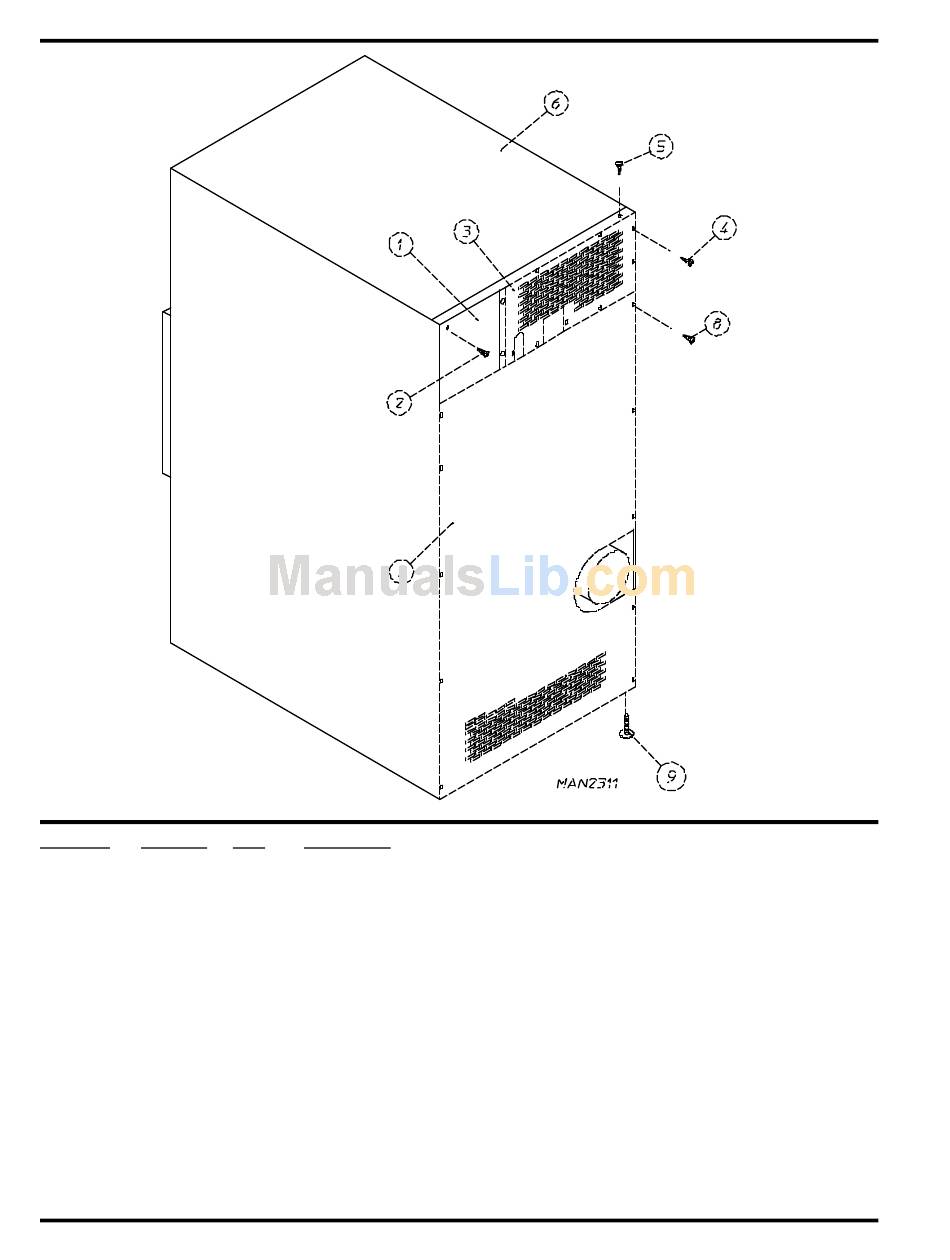

AD-15/AD-25 Outer Top/Back Guard Assembly

Qty.
Description
1
Back Electrical Box Cover
4
#8-18 x 7/16" Phillips Pan Head TEK Screw
1
AD-15 Top Back Guard
1
AD-25 Top Back Guard
7
#8-18 x 7/16" Phillips Pan Head TEK Screw
10
#8-18 x 7/16" Phillips Pan Head TEK Screw
1
AD-15 Outer Top
1
AD-25 Outer Top
1
AD-15 "Plain" Bottom Back Guard
1
AD-25 "Plain" Bottom Back Guard
13
#8-18 x 7/16" Phillips Pan Head TEK Screw
4
Leveling Leg
88 Currant Road / Fall River, MA 02720-4781
