Tumble Dryer
AD-115ES / ML-115 /
AD-120ES (ML-130) /
AD-170SE / ML-170
EN – Installation/Operator Manual
GB, IE
To avoid errors and damage to the dryer,
please read these instructions carefully
before attempting to install or operate
American Dryer Corporation
88 Currant Road
Fall River MA 02720-4781 USA
Telephone: +1 (508) 678-9000 / Fax: +1 (508) 678-9447
e-mail: techsupport@amdry.com
www.adclaundry.com
ADC Part No. 113579- 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ADC AD-115ES
Summary of Contents for ADC AD-115ES
-
Page 1: Tumble Dryer

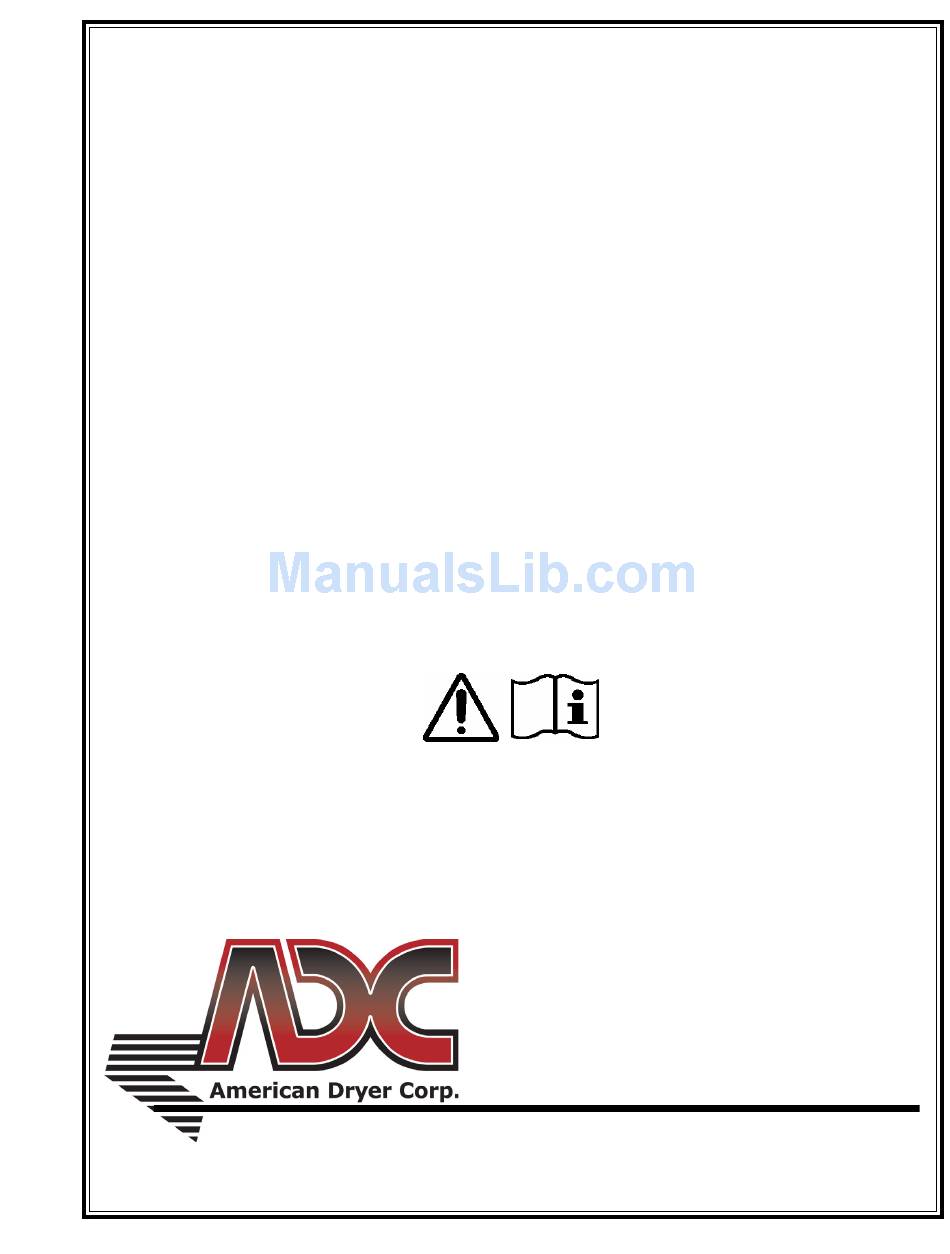

Tumble Dryer AD-115ES / ML-115 / AD-120ES (ML-130) / AD-170SE / ML-170 EN – Installation/Operator Manual GB, IE To avoid errors and damage to the dryer, please read these instructions carefully before attempting to install or operate American Dryer Corporation... -
Page 2: Table Of Contents
Safety Precautions ______________ Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this appliance. Only qualified personnel should install, service, A qualified technician must be called if any high-limit thermostat or adjust this equipment. trips to investigate, and resolve, the issue. - Page 3 This Page Is Intentionally Left Blank 113579 - 1 www.adclaundry.com...
-
Page 4: Technical Specifications
1 1/4 1 1/4 1 1/4 Water Connection (J) FNPT Rc 3/4 Rc 3/4 Electric Connection (Gas / Steam Heat) (K) Air Connection - Pnuematic Damper - Steam (M) FNPT AD-115ES (G,S,E) 84.5 183.5 171.1 46.9 189.3 68.7 ADS-115ES 171.1 20.5 191.4... - Page 5 113579 - 1 www.adclaundry.com...
-
Page 6: Installation Procedures
Installation Procedures __________________ Location Requirements The temperature of the installation location must remain between 4° C and 55° C. The dryer must not be installed or stored in an area where it will be exposed to water and/or weather. The dryer should be located where a minimum amount of exhaust ducting will be necessary. -
Page 7: Fresh (Make-Up) Air Supply Requirements
An unrestricted opening to the outdoors of 2,800 cm for each AD-120 (AD115), 3,700 cm for each AD-170, and 4,400 cm AD-170 AD-170 AD-115ES AD-120ES Gas/Electric Steam for each AD-170 steam is required (Based on 22 cm per kW). A (m) Separate make-up air openings are not required. -
Page 8: Electrical Information (50Hz)
No more than four dryers (three AD-170SE) should be commonly vented. The individual ducts should enter the bottom or side of the main duct at an angle of not more than 45° in the direction of airflow. The main duct diameter should increase before each individual duct is added. AD-170 can only have 3 units connected with common venting... -
Page 9: Gas Information
Electrical Specifications (50Hz) – Gas and Steam Models for this purpose). The length and design of the restraint should be suitable to prevent strain on the gas line if the dryer is moved. AD-115ES AD-120ES AD-170 If the dryer is to be moved then the following steps must be... -
Page 10: Gas Type Conversion
Gas Specifications AD-115ES AD-120ES AD-170 Gas Characteristics 3 Injectors 3 Injectors 4 Injectors Supply Burner Injector Injector Injector Gas Type Pressure Pressure Rate Size Rate Size Rate Size (Category) Symbol MJ/m (mbar) mbar drill drill drill G110 15.87 6-15 22.805 9.347... -
Page 11: Burner Pressure Measure And Adjust
Inverted steam bucket trap must have a capacity of 332 kg/hr 7. Run a "heat" cycle and wait for burner ignition. at 8.62 bar for AD-115ES and AD-120ES, and 473 kg/hr at 8. Gas manifold pressure can now be measured. - Page 12 Steam Supply Requirements Maximum Pressure 1,200 kPa (Optional Steel Steam Coil) Maximum Pressure 862 kPa Minimum Pressure 689 kPa Shutoff valves for each dryer should be installed in the supply line, return line, and drip trap return line. This will allow the dryer to be isolated from the steam supply if the dryer will be serviced.
-
Page 13: Water Information
Steam Damper System Operation Tumbler Coating (Refer to the figure) The tumbler has a protective coating that should be wiped clean with water and mild detergent solution (nonflammable). The steam damper arrangement allows the coil to be charged Alternatively, tumble a load of old garments that are wetted continuously (eliminates repeated expansion and contraction). -
Page 14: Service / Parts Information
Replacement parts can be obtained from your reseller or the ADC factory. When ordering replacement parts from the factory, you can FAX your order to ADC at +1 (508) 678-9447 or telephone our Parts Department at +1 (508) 678-9000. Please be prepared to provide the dryer model number, serial number, description of the part, and the part number (if known). -
Page 15: Warranty Information
Label or tag each part with the model and serial number (from the rating plate) of the dryer it was removed from. Warranty tags (Part No. 450064) are available (no charge) from ADC. _____________________________________________________________ Describe the nature of the failure (be specific). - Page 16 ADC Part No. 113579 1 - 12/21/15...
