Non-Microprocessor Coin Meter Control Panel Assembly; For Models Mfd. As Of January 25, 2002 - ADC AD-15 Parts Manual

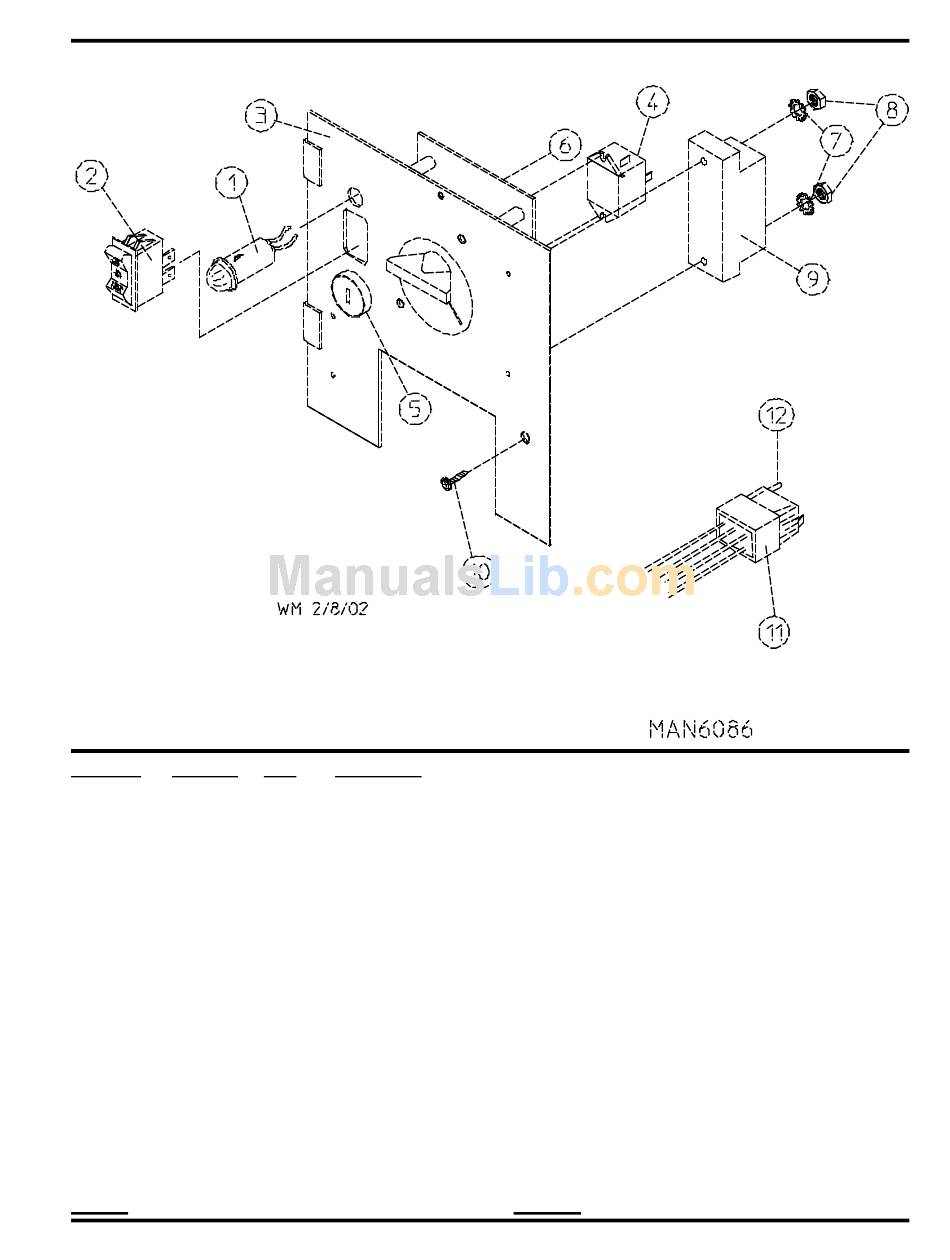

Non-Microprocessor Coin Meter Control Panel Assembly

For Models Mfd. as of January 25, 2002

Illus. No. Part No.
1 123005
2 122400
3 824172
824109
4 131932
154001
5 123225
6 125601
7 153010
8 152016
9 120712
10 150300
11 122602
12 122700
--- 122801
NOTE: For Coin Meter Replacement Parts refer to page 61.
Telephone: (508) 678-9000
Qty. Description
1 Red Indicator Light - 24 VAC
1 Rocker Heat Selector Switch
1 Coin Meter Control Panel Assembly Less Coin Meter
(includes illus. nos. 2 through 5, 7, and 8)
1 Coin Meter Control Panel ONLY
1 24 VAC Relay
2 #10-24 Speed Nut (used on P/N 131932, 24 VAC Relay)
1 Green Push-To-Start Button
1 25¢ Coin Meter - 24 VAC (specify timing)
2 #6 Star Washer
2 Hex Nut
1 12-Position Terminal Block
1 #10-16 x 1/2" Hex Washer TEK Screw
1 9-Pin Connector
7 Pin Terminal ONLY
1 Pin Extraction Tool
13
