Slide Meter Case Assembly; For Models Mfd. As Of March 13, 2001 - ADC AD-15 Parts Manual

16
Illus. No. Part No.
1* 160199
2 160099
3 125908
4 122643
5 122642
6 152014
7 122631
8 131917
9 883034
883035
883036
10 122603
11 122701
12 883165
13 154203
14 801700
15 315404
16 --------
17 123005
18 122400
19 --------
20 801701
21 102502
22 102601
23 102603
24 883044
25 883038
883039
883040
* Specify key number when ordering.
American Dryer Corporation
Qty. Description
1 Key ONLY for Slide Meter Lock
1 Lock/Key/Cam and Hardware
1 Slide Meter Accumulator - 24 VAC
9 Mate-N-Lock Pin ONLY
1 9-Position Mini-Universal Socket
4 1/4-20 Free Spin Wash Nut
2 6-Position Connector (mate-n-lock)
1 Push-To Start Relay - 24 VAC
1 White Slide Meter Case
1 Coral Blue Slide Meter Case
1 Ivory Slide Meter Case
1 9-Position Connector (mate-n-lock)
21 Socket Terminal ONLY
1 Slide Meter Case ONLY with Door Less Lock
6 1/4" Drive Rivet
1 Slide Meter Extension ONLY with Mirror
(includes illus. nos. 14 and 15)
1 Stainless Steel Mirror ONLY
1 Typical Slide Meter Coin Chute (not available from ADC)
1 Red Indicator Light - 24 VAC
1 Rocker Heat Selector Switch
1 Typical Slide Meter Coin Box (not available from ADC)
1 Slide Meter Case Mounting Plate
1 Control Door Support Rod
1 Control Door Rod Retainer Clip
1 Control Door Support Rod Catch
1 Slide Meter Extension
1 White Slide Meter Timer Door
1 Coral Blue Slide Meter Timer Door
1 Ivory Slide Meter Timer Door

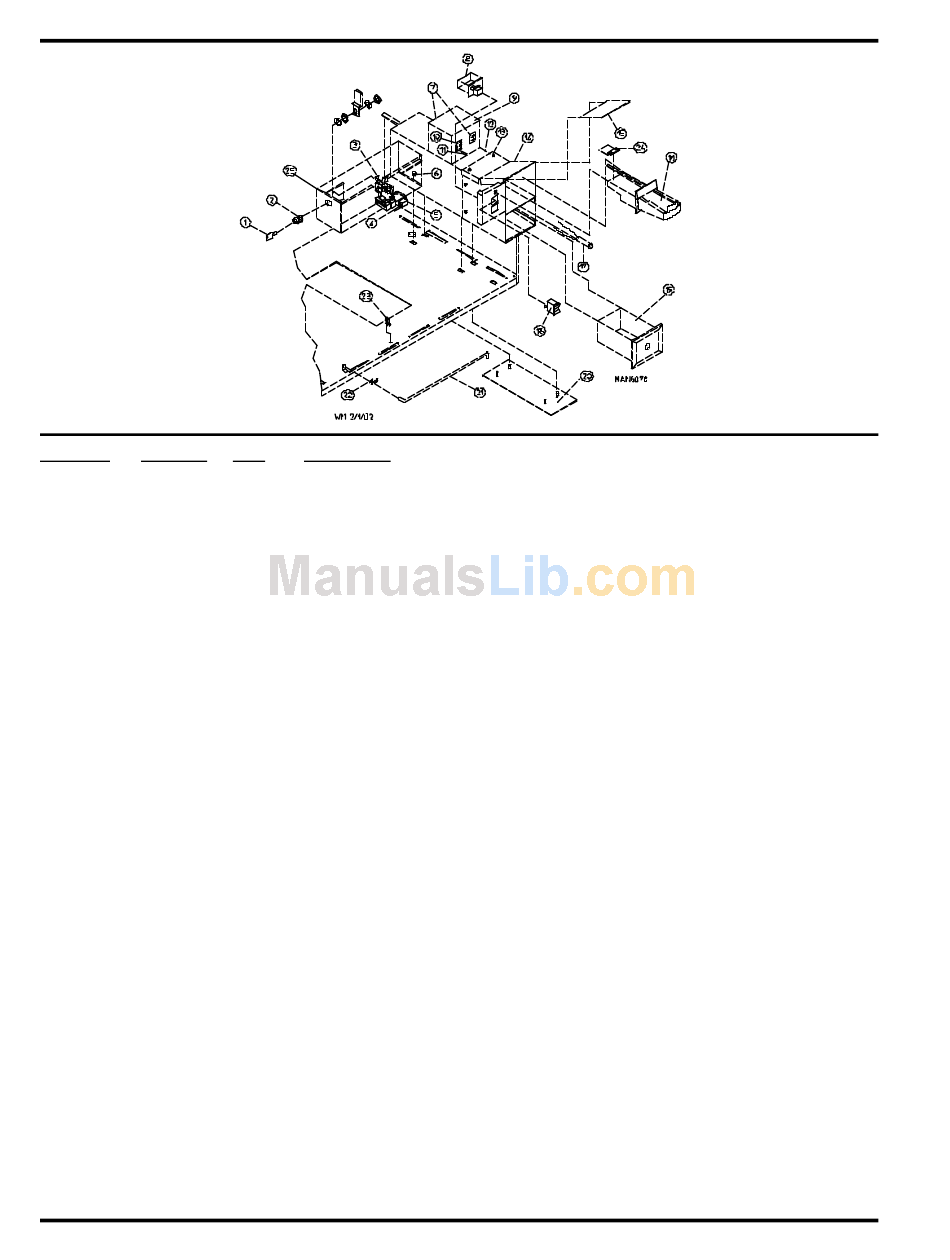

Slide Meter Case Assembly

For Models Mfd. as of March 13, 2001

88 Currant Road / Fall River, MA 02720-4781
