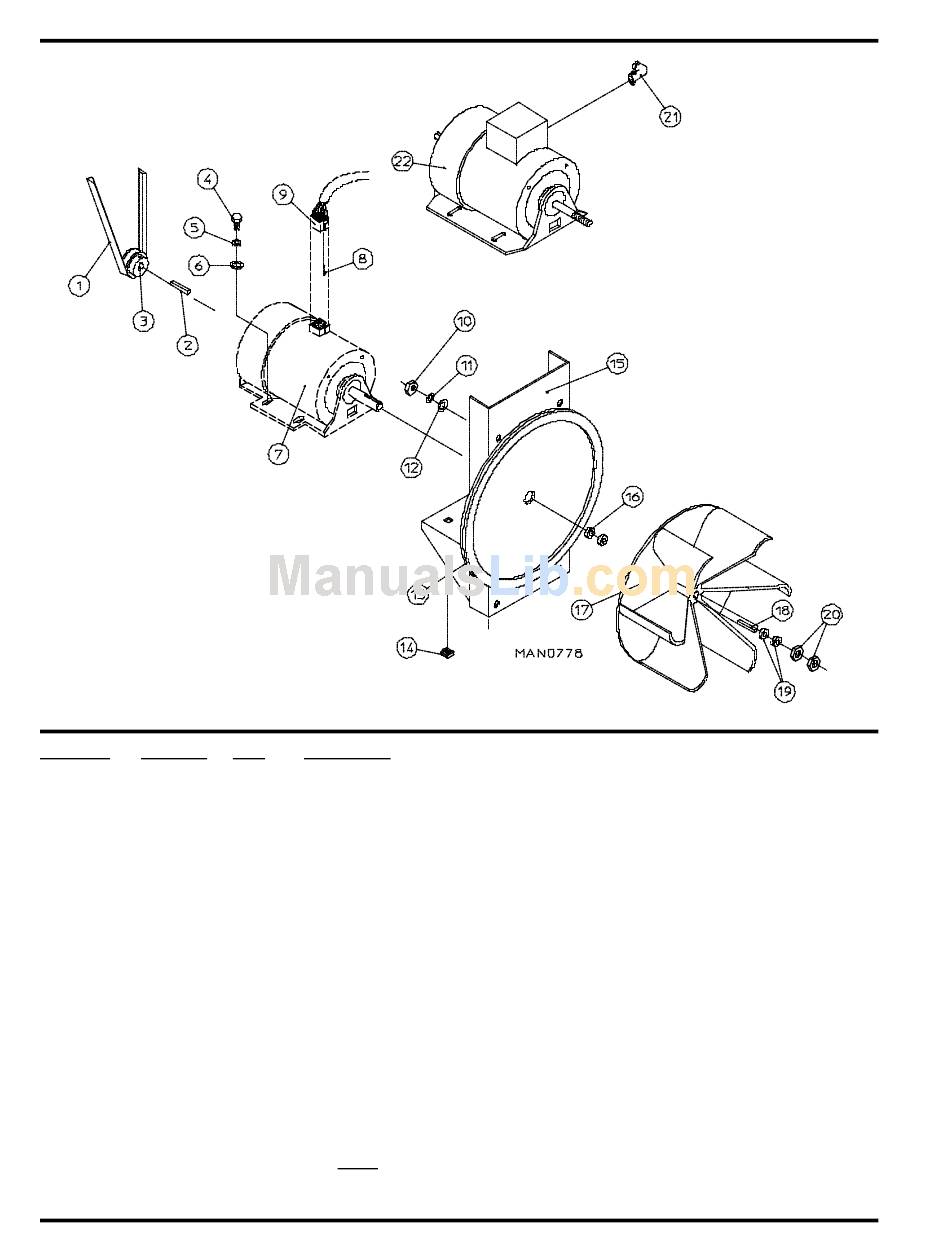

Motor Mount Assembly - ADC AD-15 Parts Manual

36
Illus. No. Part No.
1 100110
100103
2 100701
3 101102
101103
101104
101132
4 150501
5 153002
6 153001
7 181049
883573
American Dryer Corporation
Qty. Description
1 4L-500 V-Belt (to idler assembly) 60 Hz
1 4L-510 V-Belt (to idler assembly) 50 Hz
1 3/16" x 3/16" x 1" Key
(for use on 3ø models Only)
1 1/2" x 1-3/4" Motor Pulley
(for use on 1ø - 60 Hz motors Only)
1 5/8" x 1-3/4" Motor Pulley
(for use on 3ø - 60 Hz motors Only)
1 1/2" x 2" Motor Pulley
(for use on 1ø - 50 Hz motors Only)
1 5/8" x 2" Motor Pulley
(for use on 3ø - 50 Hz motors Only)
4 5/16-18 x 3/4" Hex Head Machine Bolt
4 5/16" Lock Washer
4 5/16" Flat Washer
1 1/2 HP 100-230v 1ø 50/60 Hz Plug-Type Motor
(for ALL 50/60 Hz models mfd. as of February 4, 2002)
1 1/2 HP 240v 1ø 50 Hz Plug-Type Motor - Includes 2" Motor Pulley
(for models mfd. prior to February 4, 2002)
AD-25 Motor Mount Assembly
