Main Door Switch Assembly; For Models With Plastic Doors - ADC AD-15 Parts Manual

22
Illus. No. Part No.
1 152013
2 153008
3 137005
4 121028
5 154281
6 800448
7 153565
8 313218
9 150201
10 121405
American Dryer Corporation
Qty. Description
2 #6-32 Hex Nut
2 #6 Lock Washer
1 Single-Pole Door Switch
2 Insulated Female Terminal
2 3/8" Standard Nylon Spacers
1 12-1/2" Stainless Steel Main Door Hinge Assembly
(includes illus. nos. 6 and 7)
2 #6-32 x 1" Self-Clinching Stud
1 Main Door Switch Housing
2 #10-32 x 1/4" Phillips Pan Head Screw
1 Rubber Grommet

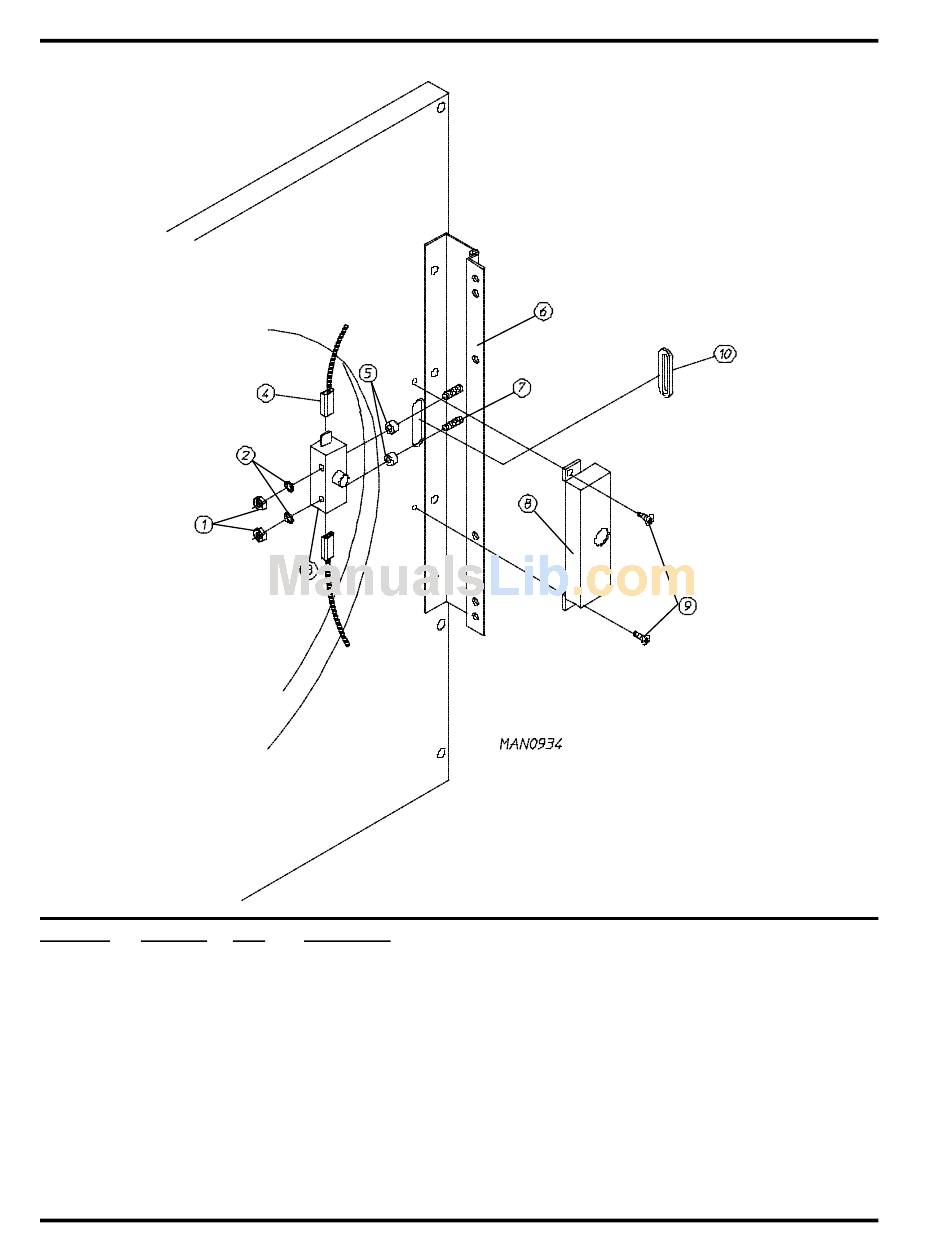

Main Door Switch Assembly

For Models with Plastic Doors
