Non-Microprocessor Coin Meter Control Panel Assembly; For Models Mfd. Prior To January 25, 2002 - ADC AD-15 Parts Manual

14
Illus. No. Part No.
1 123005
2 122400
3 824020
800054
4 131917
5 150207
6 154001
7* 125601
8 150303
9 120712
10 150309
882541
11 122602
12 122700
--- 122801
* Consult factory for coin meters not listed.
NOTE: For Coin Meter Replacement Parts refer to page 61.
American Dryer Corporation

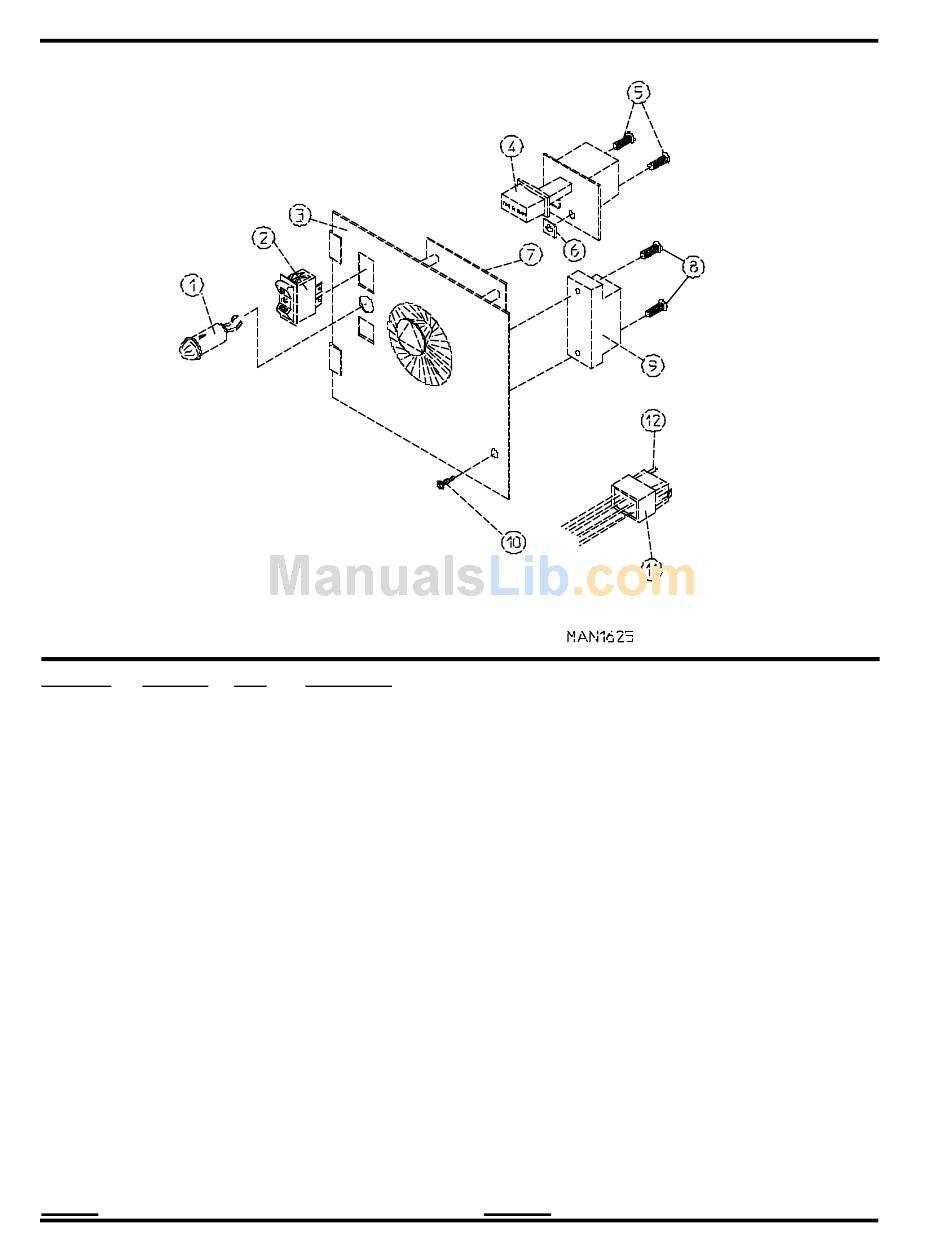

Non-Microprocessor Coin Meter Control Panel Assembly

Qty. Description
1 Red Indicator Light - 24 VAC
1 Rocker Heat Selector Switch
1 Coin Meter Control Panel Assembly Complete - 24 VAC
(includes illus. nos. 1 through 6 and 8 through 12)
1 Coin Meter Control Panel ONLY
1 Push-To-Start Relay - 24 VAC
2 #10-24 x 1/2" Round Head Machine Screw
2 #10-24 Speed Nut
1 25¢ Coin Meter - 24 VAC (specify timing)
2 #4 x 3/4" Pan Head "A" Screw
1 12-Position Terminal Block
1 #10-16 x 1/2" Hex Head TEK Crimptite Screw
(for models mfd. as of March 3, 1994)
1 Spring Turn Latch (2-piece)...Not Illustrated
(for models mfd. as of March 3, 1994)
1 9-Pin Connector ONLY
9 Pin Terminal ONLY
1 Pin/Socket Extraction Tool

For Models Mfd. prior to January 25, 2002

88 Currant Road / Fall River, MA 02720-4781
