Non-Microprocessor Control Box Assembly - ADC AD-15 Parts Manual

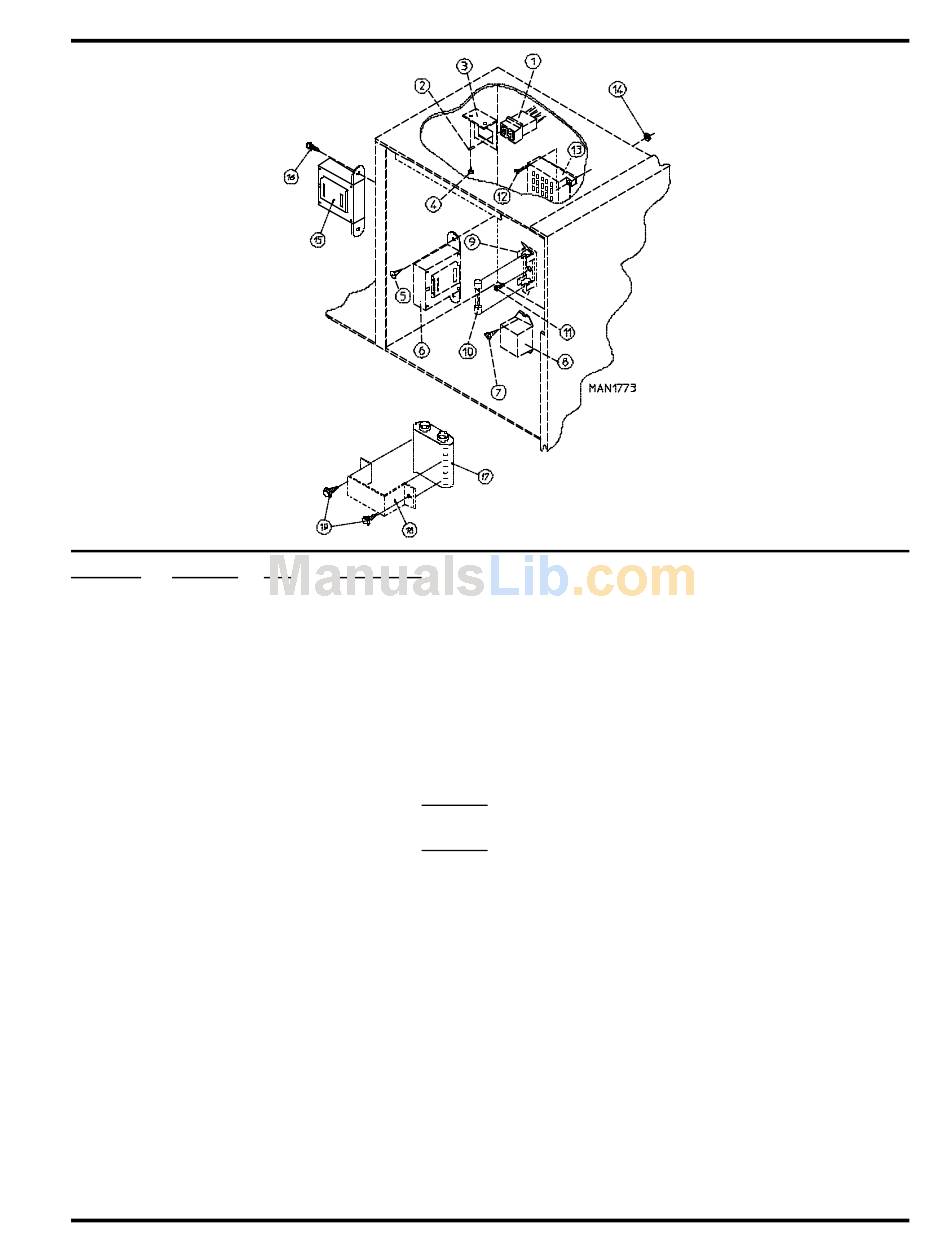

Non-Microprocessor Control Box Assembly

Illus. No. Part No.
1 122603
2 122701
122801
3 315010
4 150300
5 150300
6 ---------
7 150309
8 131931
9 136008
10** 136057
11 150301
12 150002
13 120715
14 151000
15 132002
16 150300
17 137035
18 323583
19 150300
* As required.
** Check fuse on dryer for verification.
Telephone: (508) 678-9000
Qty. Description
1 9-Pin Socket Connector
9 Socket Terminal ONLY
1 Pin/Socket Extraction Tool
1 9-Pin Connector Bracket
2 #10-16 x 1/2" Hex Washer TEK Screw
2 #10-16 x 1/2" Hex Washer TEK Screw
1 24 VAC Control Voltage Transformer
(refer to AD-15/AD-25 Transformer Usage Listing for Gas/Steam
Dryers on page 62)
(refer to ADE-15/ADE-25 Transformer Usage Listing for Electric
Dryers on page 63)
2 #10-16 x 1/2" Hex Head TEK Crimptite Screw
1 Steam Valve Relay (for mechanical steam damper models Only) - 24 VAC
* Fuse Block/Strip ONLY
* 1/2-Amp (Slo-Blo) Fuse ONLY
* #8-18 x 7/16" Phillips Pan Head TEK Screw
2 #6-32 x 1" Phillips Round Head Machine Screw
1 30-Position Terminal Block
2 #6-32 Pal Nut
1 Transformer (for mechanical steam damper 208 VAC and higher)
2 #10-16 x 1/2" Hex Washer TEK Screw
1 Motor Capacitor (for mechanical steam damper models Only)
1 Capacitor Bracket (for mechanical steam damper models Only)
2 #10-16 x 1/2" Hex Washer TEK Screw
15
