Ethernet speed (EthSpeed)

Ethernet speed (EthSpeed)
Ethernet speed (EthSpeed)
Specifies the transmission speed of the Ethernet interface.
Auto-Sense: The transmission speed is detected automatically.
10Mbit Half: Sets the transmission speed to 10 MBit half duplex per second.
10Mbit Full: Sets the transmission speed to 10 MBit full duplex per second.
100Mbit Half: Sets the transmission speed to 100 MBit half duplex per second.
100Mbit Full: Sets the transmission speed to 100 MBit full duplex per second.
It is recommended that the ethernet interface transmission speed setting of
the printer and the connected transmission device coincide. The printout of
the current menu settings contains the ethernet link status (item
EthConnected).
Confirm the setting by pressing the Set key (1).
User guide
Press the Next key (4) to leave the parameter group Interf.. Press the Next key
User guide
(4) again to access the next group of parameters.
Selecting character set
Selecting character set

Selecting character set (CG-Tab)

(CG-Tab)
(CG-Tab)
Only available for Epson LQ 2550/LQ2170 emulation. Either the Epson character
set Italics or the IBM graphics character set or a DLL (download) character set,
as defined before, can be activated in the code range from hex. A0 to hex. FE.
CG-Tab Charset
CG-Tab Charset
Back Next
Back Next
1 2 3
3
1 2
CG-Tab=Graphic *
CG-Tab=Graphic *
Set < > Exit
1
Set < > Exit
1 2 3
1 2 3
IBM character set (CharSet)
IBM character set (CharSet)
76
76
CG-Tab CharSet
CG-Tab CharSet
Back Next
Back Next
1 2 3
1 2 3
Specifies the transmission speed of the Ethernet interface.
Specifies the transmission speed of the Ethernet interface.

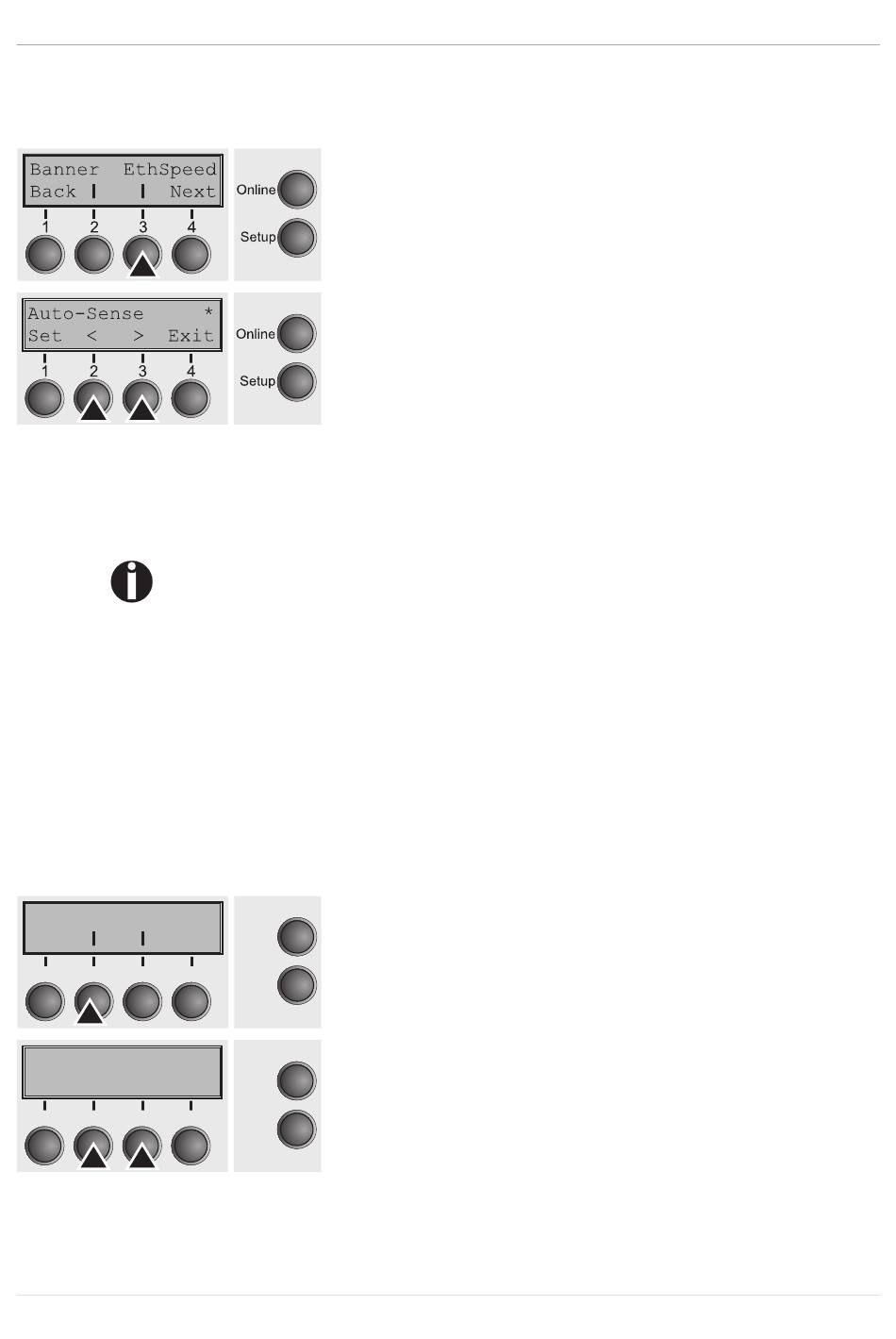

Press EthSpeed (3) key.
