MAP5000

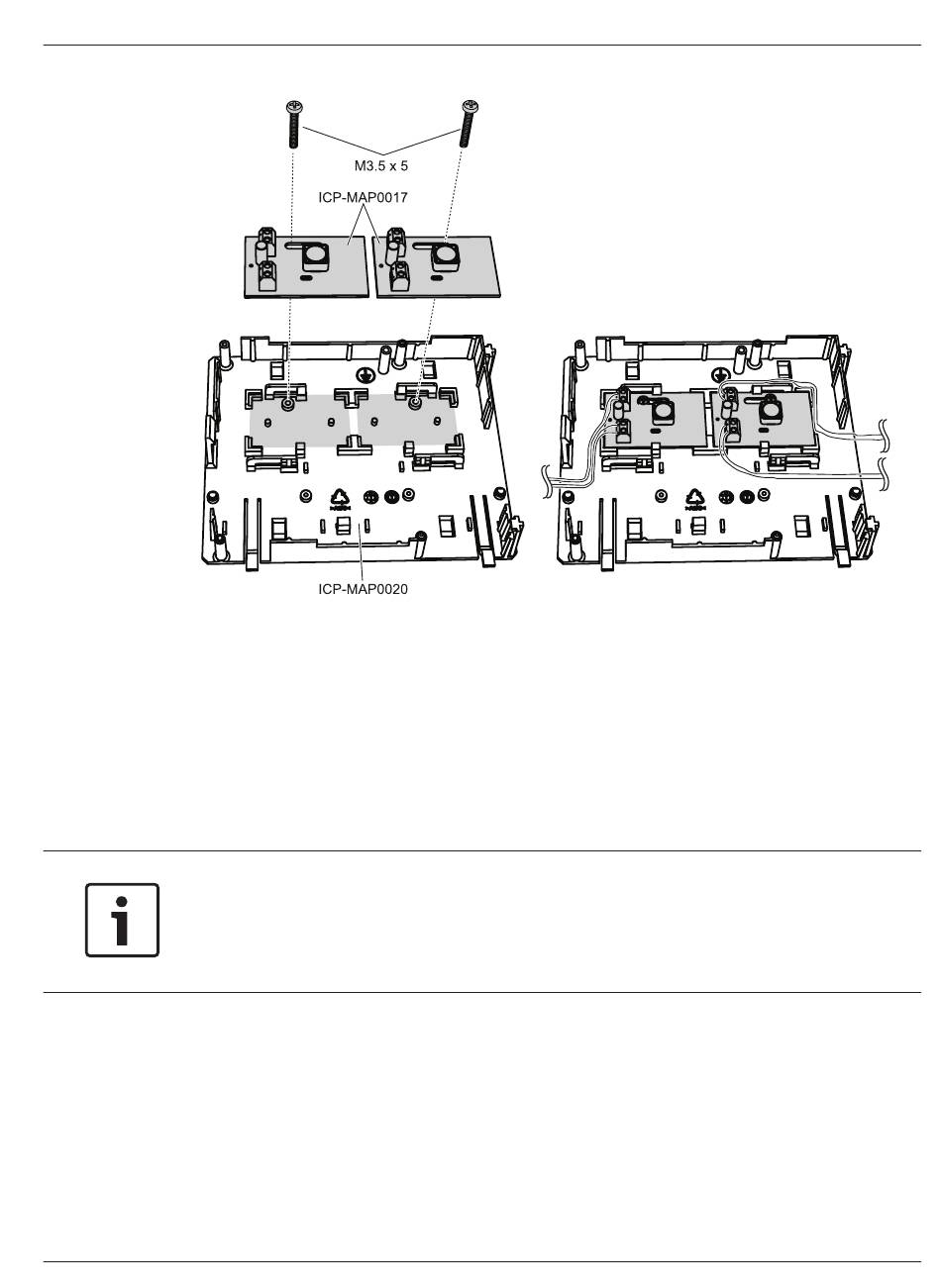

Figure 2.12 Install the 12 V Converter
See also
–
2.9
Install the Fuse Plate (SIV)
1.
2.
Notice!
Use the corresponding ratings for the fuses SI 1 ... SI 5. (minimum 250 mA, maximum 1 A
depending on the connected loads).
The overall current of all SIV outputs must not exceed the available maximum current of the
voltage output used.
Bosch Sicherheitssysteme GmbH
Install the 12 V Converter, page 25
Mount the fuse plate (SIV) onto the accessory mounting plate as shown in the figure
below (screws not supplied).
Connect the field wiring to the terminal block of the fuse plate (SIV) as shown in the
figure below and leave the other ends unconnected.
Installation Manual
Installation | en
25
2014.12 | 13 | F.01U.168.332
