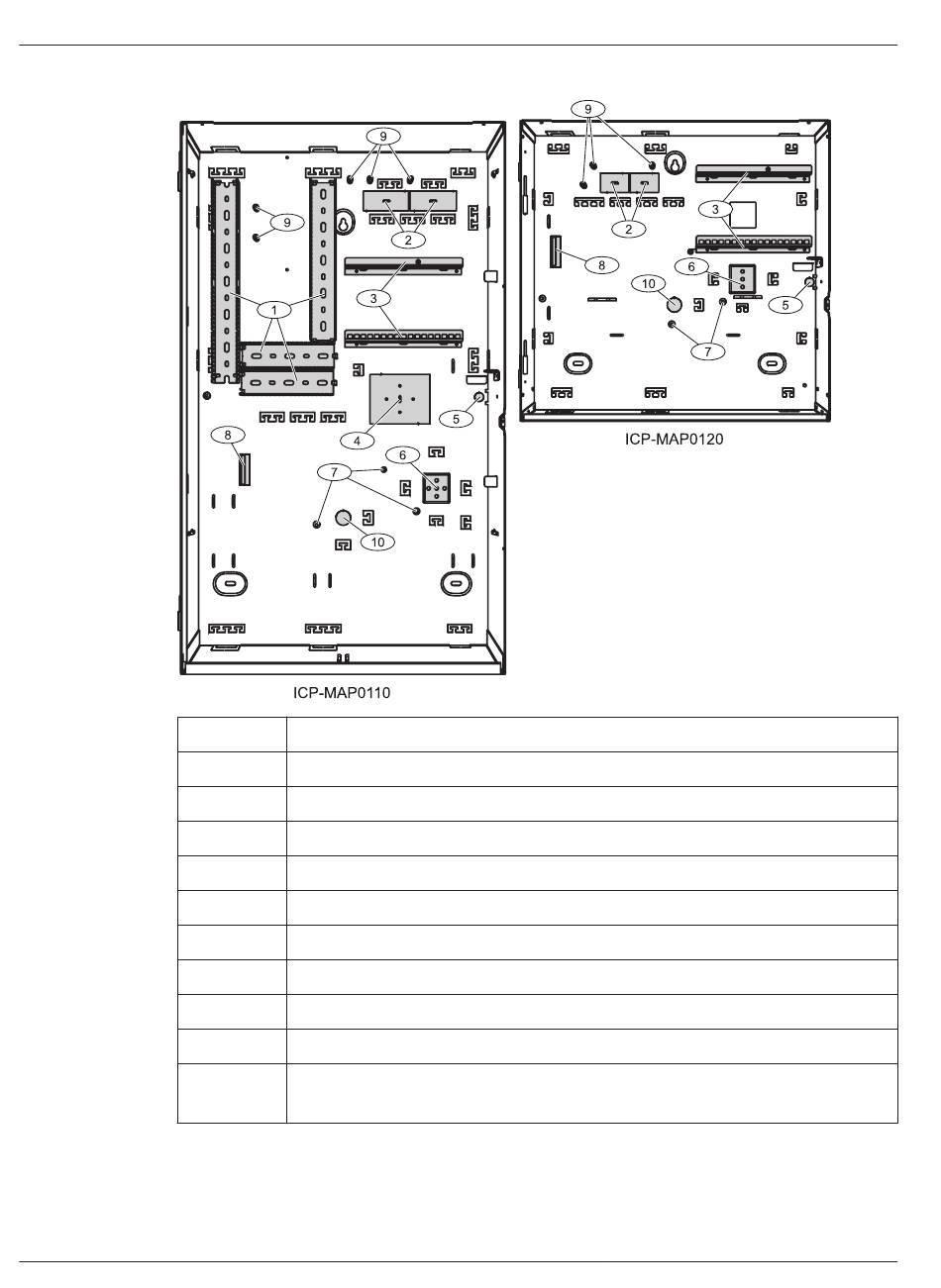

Figure 1.10 Enclosure Overview
Element
1
2
3
4
5
6
7
8
9
10
2014.12 | 13 | F.01U.168.332
Description
Wire trays
Wire knockouts
Mounting rails for ICP-MAP0020 Accessory Mounting Plate
Mounting location for TAE Box
Knockout for wall tamper
Mounting location for ICP-MAP0065 AC Terminal Block
Earth ground connection points
Flange for IPP-MAP0005 Power Supply
Shielding connection points
Knockout for AC wires (use when AC wires come in from the back of the
enclosure)
