Mounting
4.2 Mounting on Profile Rails
4.2
Mounting on Profile Rails

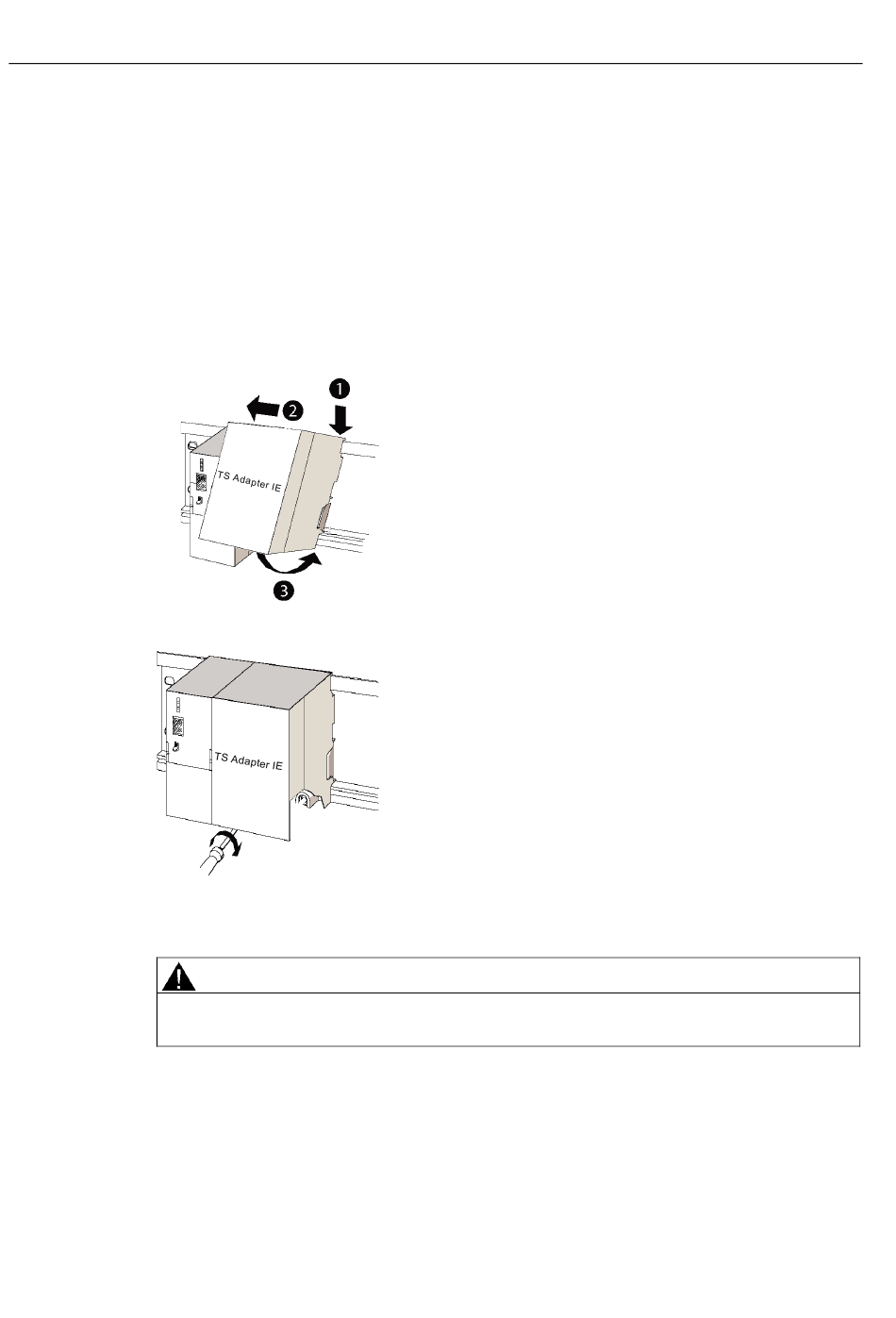

Mounting TS Adapter IE
1. Place the TS Adapter IE on the last slot of the profile rail.
2. Attach the TS Adapter IE ❶.
3. Slide the TS Adapter IE as far as the left side module ❷.
4. Swivel the TS Adapter IE downward ❸.
5. Hand-tighten the TS Adapter IE.
Dismounting TS Adapter IE
Unplug the connectors from the analog and Ethernet cables of the TS Adapter IE before
dismounting the TS Adapter IE from the grounded profile rail or DIN rail.
1. Slacken the fixing screw of the TS Adapter IE.
2. Swivel the TS Adapter IE up ❸.
16
The TS Adapter IE does not require the bus connector used on S7-300 modules.
WARNING
TS Adapter IE
Manual, 11/2010, A5E00977705-03
