Status Bar icon

1.6 Introduction of Rear Panel

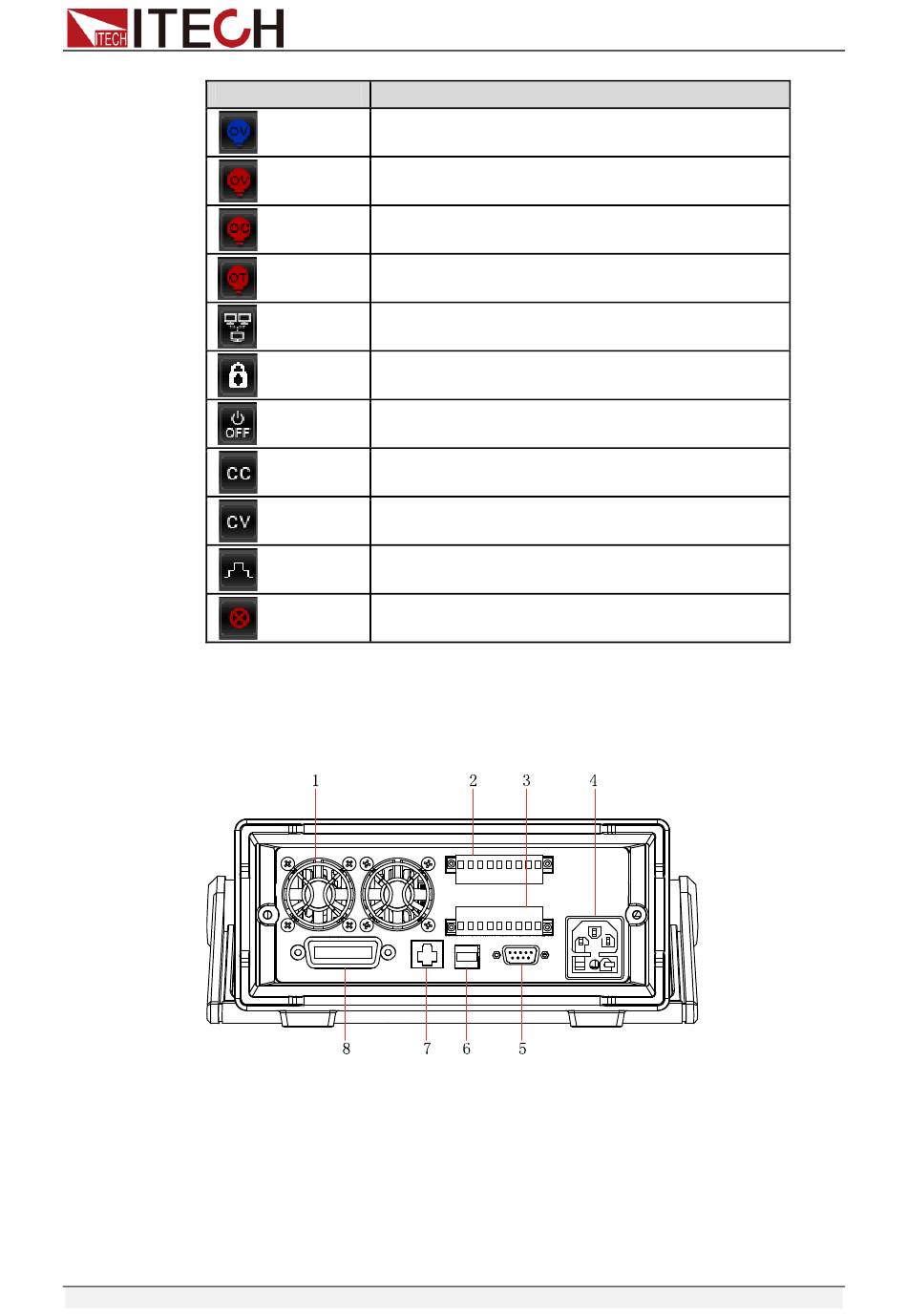

Schematic Diagram of Rear Panel of IT6412 Power Supply
1 Vent hole
2 Remote sense terminal, the output terminal and DVM terminal(CH1)
3 Remote sense terminal, the output terminal and DVM terminal(CH2)
4 AC power input socket
5 SYSTEM I/O terminal
6 USB communication interface
7 LAN communication interface
8 GPIB communication interface
Status description
This icon appears when over-voltage protection
function is switched on.
Over-voltage protection icon: this icon appears
when over-voltage occurs.
Over-current protection icon: this icon appears
when over-current occurs.
Over-temperature
appears when over- temperature occurs.
This icon appears in remote network connection.
Key Lock: this icon appears when the keyboard is
locked.
Output is off.
The Power is under constant current mode.
The Power is under constant voltage mode.
List icon: this icon appears when the LIST in run.
This icon appears when the voltage loaded on the
output terminal is 120% of the rated voltage.
Copyright © Itech Electronic Co., Ltd.
protection icon: this
Introduction
icon
5
