Configuring Current Sense
This option is used for configuring current sense: High and Auto. When Auto is
configured, switch to Low mode when current is lower than 5mA. The
measurement precision is 0.05%+2Ua and resolution ratio 0.1uA.
Configuring Output-off State
This item is used to set the status after the power output is turned off. Select
Menu > Config > Conf2 to enter configuration menu interface. Press up or down
keys to select Output-off, and then press [High Impedance], [Normal], [Zero] or
[Relay off] soft keys on the right side to set the output off status.





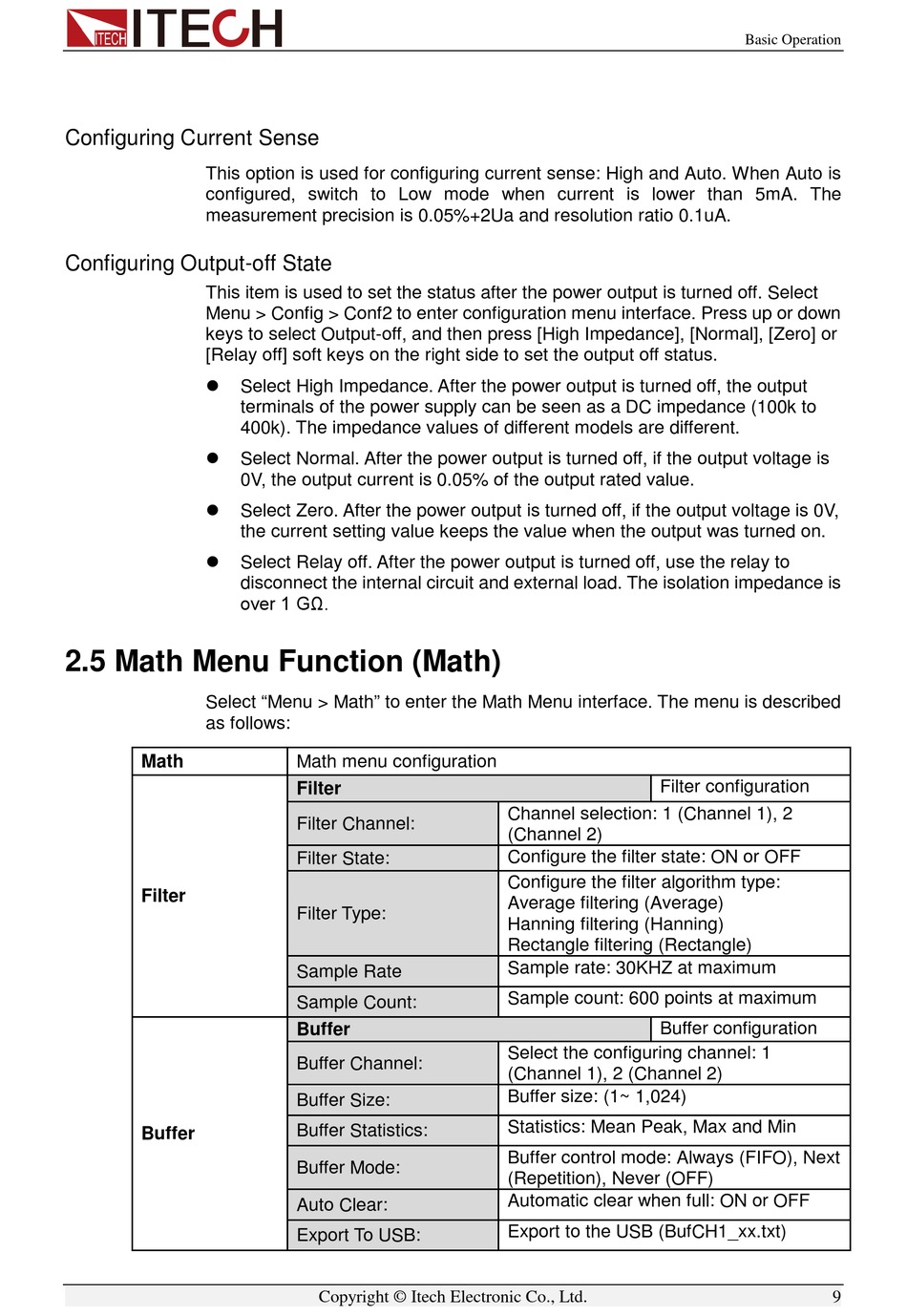

2.5 Math Menu Function (Math)

Select "Menu > Math" to enter the Math Menu interface. The menu is described
as follows:
Math
Filter
Buffer
Select High Impedance. After the power output is turned off, the output
terminals of the power supply can be seen as a DC impedance (100k to
400k). The impedance values of different models are different.
Select Normal. After the power output is turned off, if the output voltage is
0V, the output current is 0.05% of the output rated value.
Select Zero. After the power output is turned off, if the output voltage is 0V,
the current setting value keeps the value when the output was turned on.
Select Relay off. After the power output is turned off, use the relay to
disconnect the internal circuit and external load. The isolation impedance is
over 1 GΩ.
Math menu configuration
Filter
Filter Channel:
Filter State:
Filter Type:
Sample Rate
Sample Count:
Buffer
Buffer Channel:
Buffer Size:
Buffer Statistics:
Buffer Mode:
Auto Clear:
Export To USB:
Copyright © Itech Electronic Co., Ltd.
Filter configuration
Channel selection: 1 (Channel 1), 2
(Channel 2)
Configure the filter state: ON or OFF
Configure the filter algorithm type:
Average filtering (Average)
Hanning filtering (Hanning)
Rectangle filtering (Rectangle)
Sample rate: 30KHZ at maximum
Sample count: 600 points at maximum
Buffer configuration
Select the configuring channel: 1
(Channel 1), 2 (Channel 2)
Buffer size: (1~ 1,024)
Statistics: Mean Peak, Max and Min
Buffer control mode: Always (FIFO), Next
(Repetition), Never (OFF)
Automatic clear when full: ON or OFF
Export to the USB (BufCH1_xx.txt)
