IT6412.

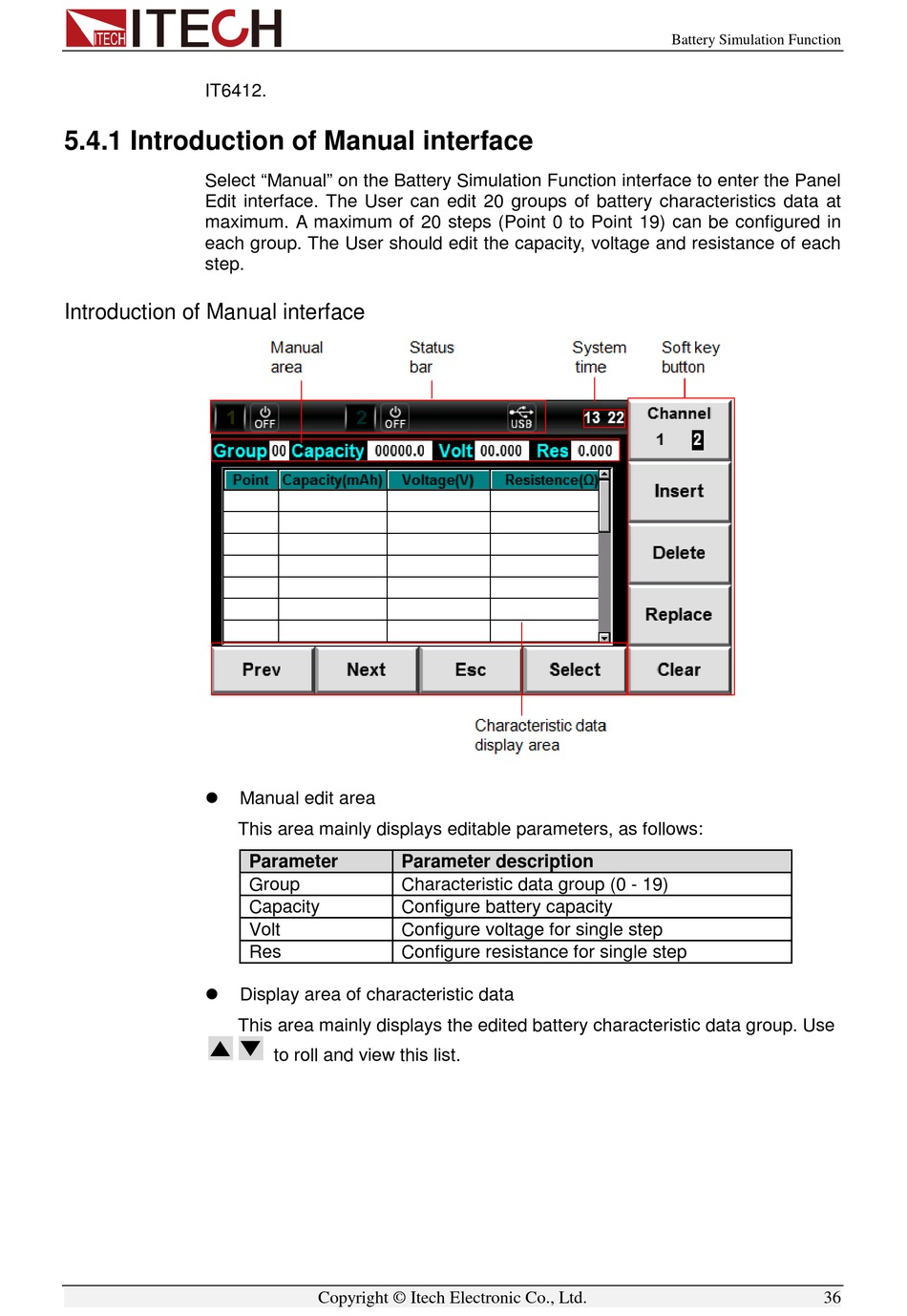

5.4.1 Introduction of Manual interface
Select "Manual" on the Battery Simulation Function interface to enter the Panel
Edit interface. The User can edit 20 groups of battery characteristics data at
maximum. A maximum of 20 steps (Point 0 to Point 19) can be configured in
each group. The User should edit the capacity, voltage and resistance of each
step.
Introduction of Manual interface


Manual edit area
This area mainly displays editable parameters, as follows:
Parameter Parameter description
Group Characteristic data group (0 - 19)
Capacity Configure battery capacity
Volt Configure voltage for single step
Res Configure resistance for single step
Display area of characteristic data
This area mainly displays the edited battery characteristic data group. Use
to roll and view this list.
