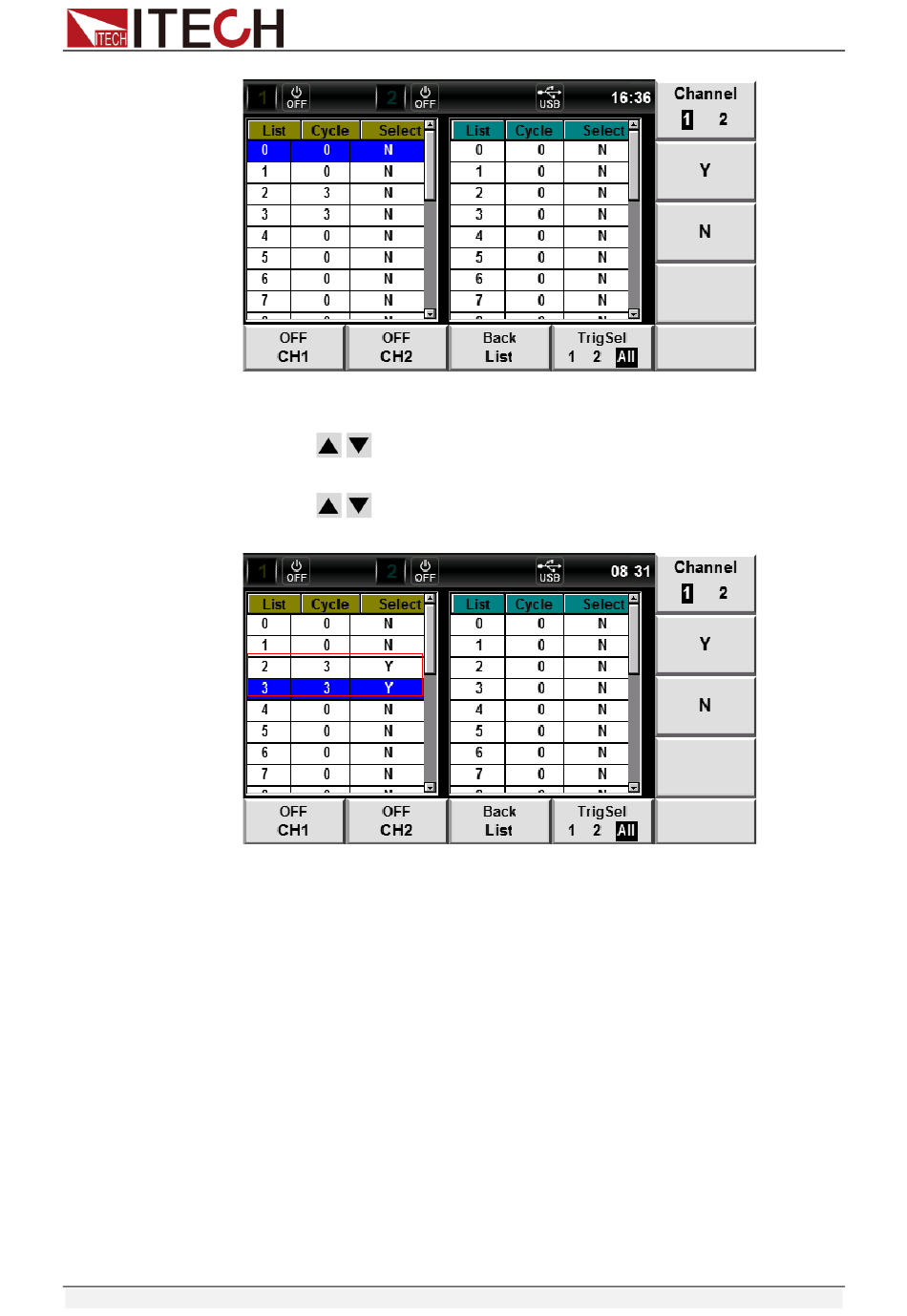

ITech IT6412 User Manual page 56

2.
3.
4.
Run List
After editing of List, the power supply will start running after receipt of one
trigger signal till completion of the List operation or receipt of another trigger
signal.
Operating procedures are as below:
1.
2.
3.
Press the [Channel 1/2] soft key to select the editing channel 1.
Use the key to select the line of the List 02 (blue background).
Press the soft key corresponding to the [Y] to select List 02 list.
Use the key to select the line of the List 03 (blue background).
Press the soft key corresponding to the [Y] to select List 03 list.
Edit List in successive based on the above steps and select the edited List.
Press the [Trig Sel 1/2/All] soft key to select the channel to be triggered.
When [Trig Sel 1/2/All] is pressed once, the channels that can be
triggered by the [Trig] key will be switched among 1/2/All one by one.
On the Sequence Selection and Configuration interface, press the [OFF
CH1] soft key to configure the List status as ON and switch on the List
function.
Copyright © Itech Electronic Co., Ltd.
List Function
48
