Chapter4 Waveform Display Function

This chapter describes the characteristics and use of the waveform display
function of IT6412 power supply in details.

4.1 Basic Concepts

The IT6412 power supply provides the waveform display function based on
sample data. The voltage or current waveform of the input unit can be displayed
or hidden on the interface, which is available for selection based on actual
condition.
Introduction of soft keys on the interface

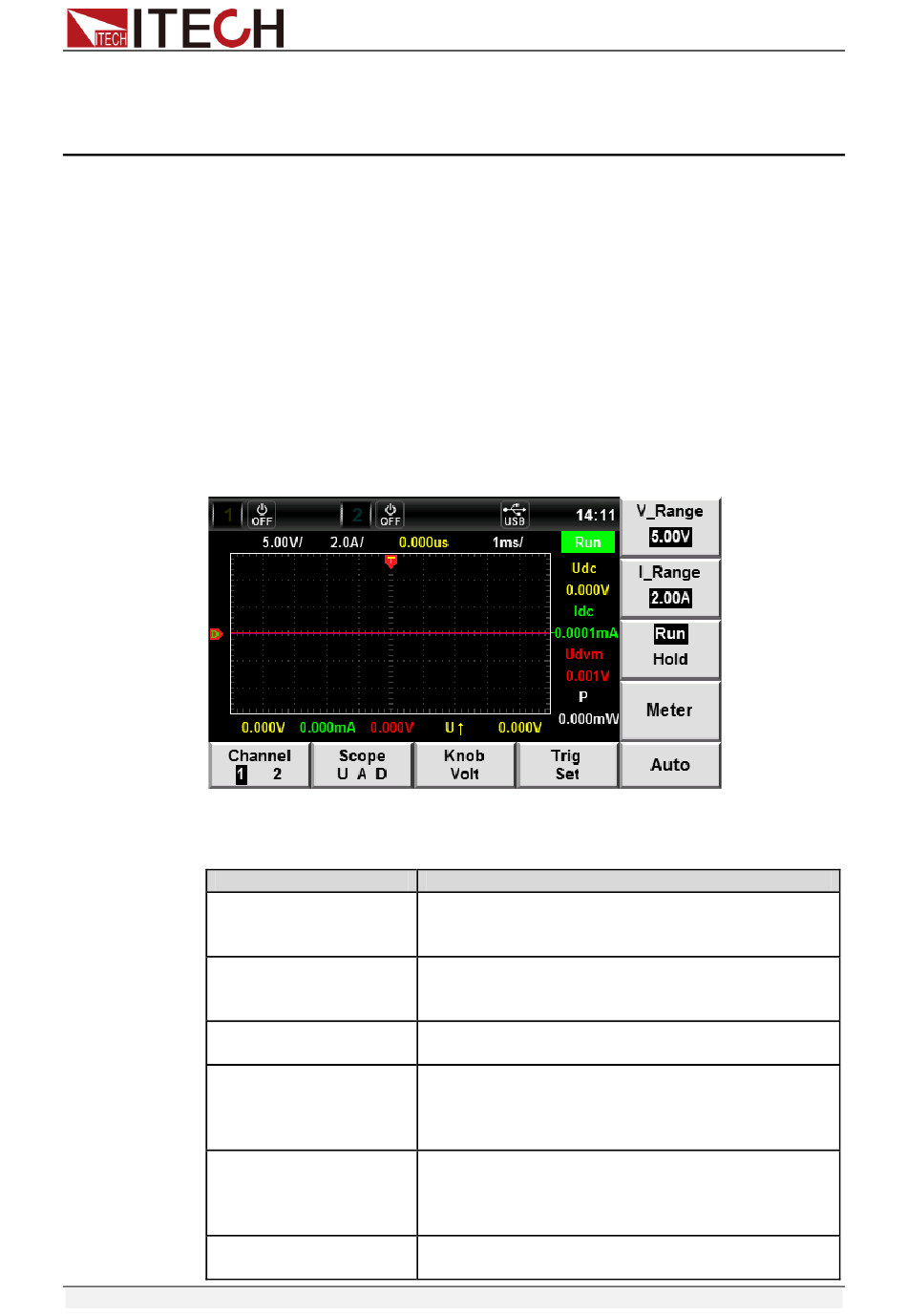

Select Graph in the Menu Configuration interface, the initial Waveform Display
interface appears as follows.
Description of Waveform Display interface information:
Parameter name
V Range
I Range
Run Hold
Meter
Auto
Channel(1/2)
Parameter description
Voltage range setting: press the soft key
corresponding to this parameter to set the voltage
range.
Current range setting: press the soft key
corresponding to this parameter to set the current
range.
Run/stop: press the soft key corresponding to this
parameter to run or stop the waveform status.
Toggle key of power supply measurement
interface: when this key is pressed, the present
interface is ended and switched to the Source
interface.
Automatic adjustment key: when the soft key
corresponding to this parameter is pressed, the
power supply will automatically calibrate the input
signal to display the best effect of the input signal.
Select the configuring channel: 1 (Channel 1), 2
(Channel 2).
