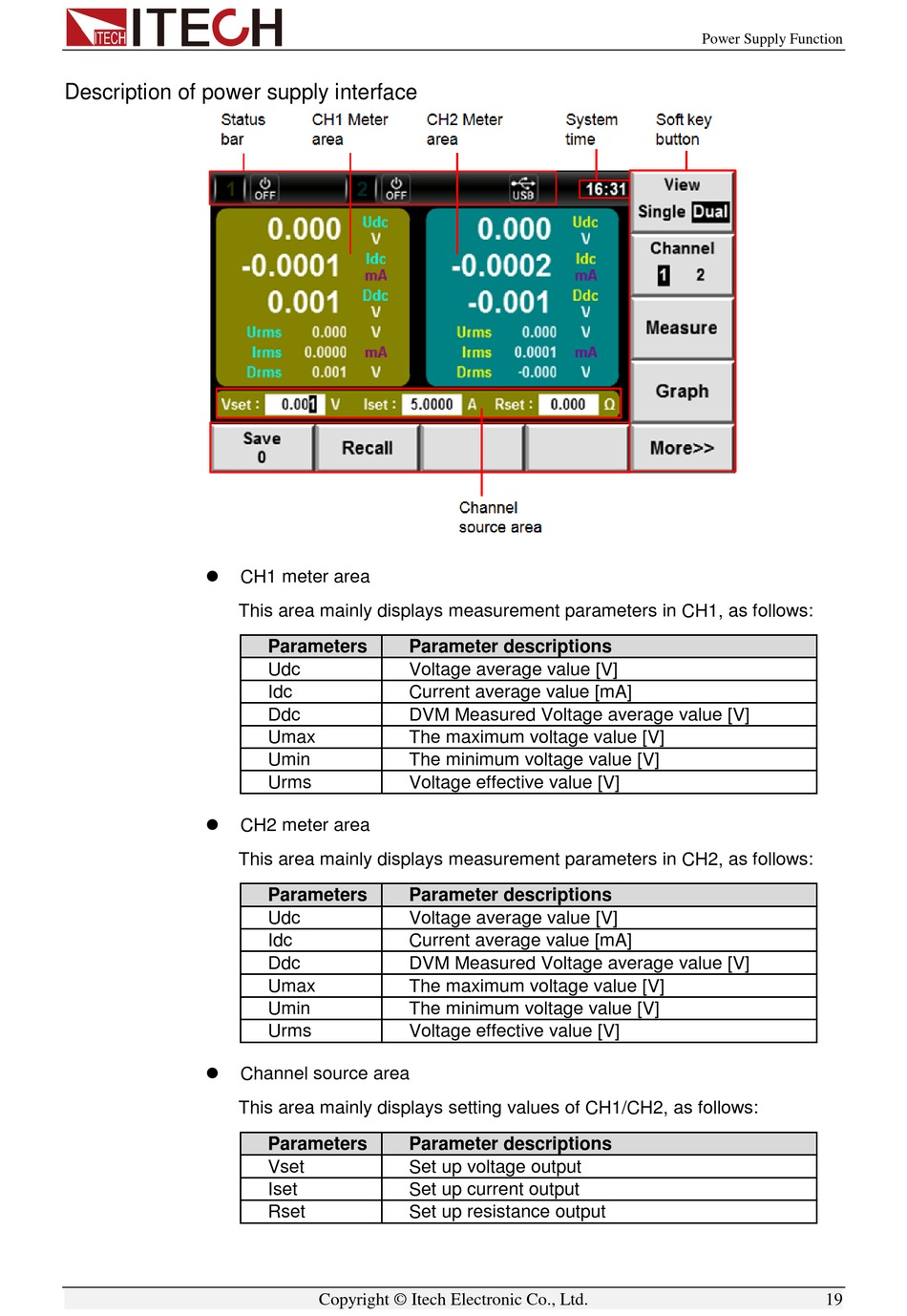

Description of power supply interface



CH1 meter area
This area mainly displays measurement parameters in CH1, as follows:
Parameters Parameter descriptions
Udc Voltage average value [V]
Idc Current average value [mA]
Ddc DVM Measured Voltage average value [V]
Umax The maximum voltage value [V]
Umin The minimum voltage value [V]
Urms Voltage effective value [V]
CH2 meter area
This area mainly displays measurement parameters in CH2, as follows:
Parameters Parameter descriptions
Udc Voltage average value [V]
Idc Current average value [mA]
Ddc DVM Measured Voltage average value [V]
Umax The maximum voltage value [V]
Umin The minimum voltage value [V]
Urms Voltage effective value [V]
Channel source area
This area mainly displays setting values of CH1/CH2, as follows:
Parameters Parameter descriptions
Vset Set up voltage output
Iset Set up current output
Rset Set up resistance output
