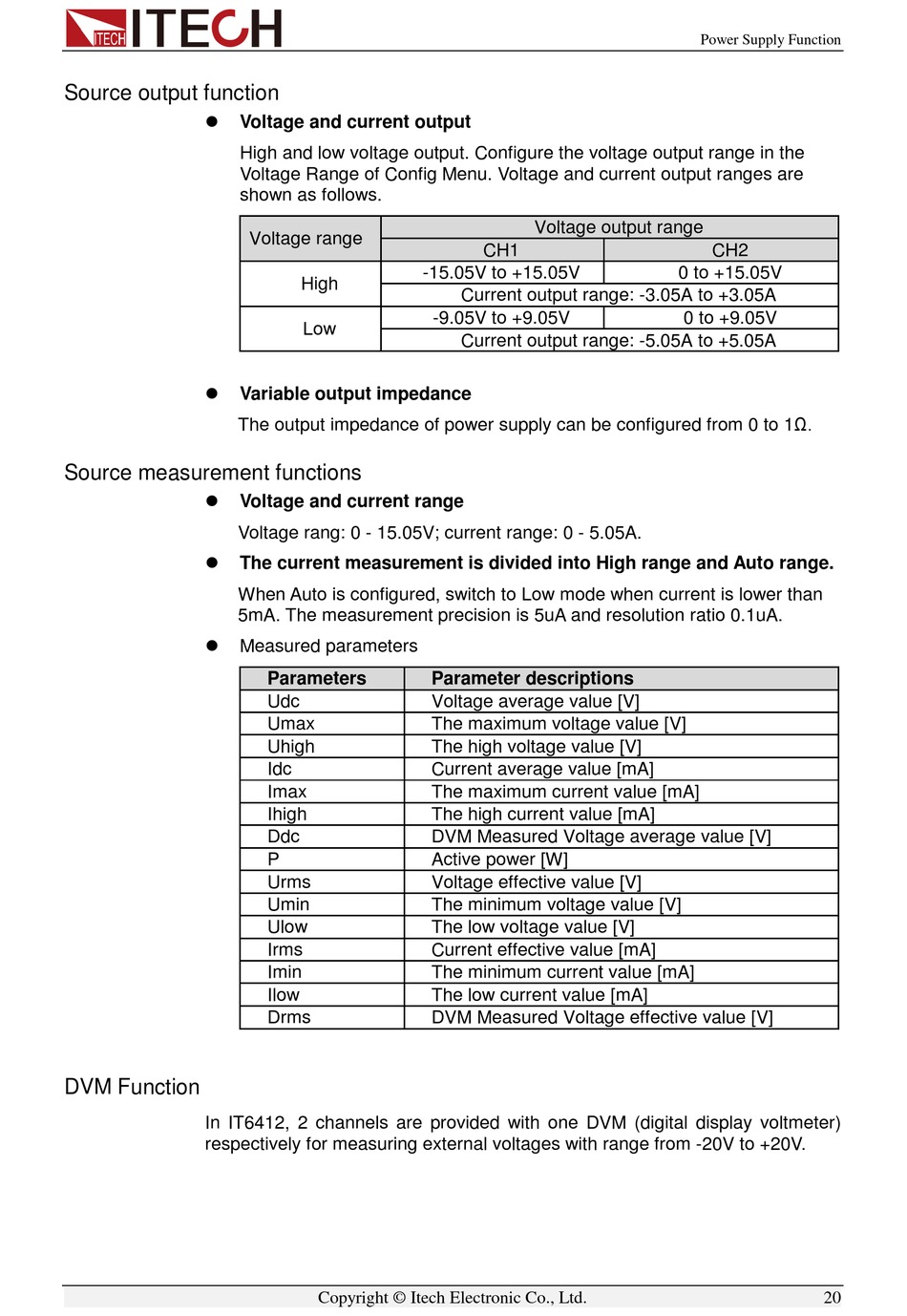

ITech IT6412 User Manual page 28

Source output function


Source measurement functions



DVM Function
In IT6412, 2 channels are provided with one DVM (digital display voltmeter)
respectively for measuring external voltages with range from -20V to +20V.
Voltage and current output
High and low voltage output. Configure the voltage output range in the
Voltage Range of Config Menu. Voltage and current output ranges are
shown as follows.
Voltage range
High
Low
Variable output impedance
The output impedance of power supply can be configured from 0 to 1Ω.
Voltage and current range
Voltage rang: 0 - 15.05V; current range: 0 - 5.05A.
The current measurement is divided into High range and Auto range.
When Auto is configured, switch to Low mode when current is lower than
5mA. The measurement precision is 5uA and resolution ratio 0.1uA.
Measured parameters
Parameters
Udc
Umax
Uhigh
Idc
Imax
Ihigh
Ddc
P
Urms
Umin
Ulow
Irms
Imin
Ilow
Drms
Copyright © Itech Electronic Co., Ltd.
Voltage output range
CH1
-15.05V to +15.05V
Current output range: -3.05A to +3.05A
-9.05V to +9.05V
Current output range: -5.05A to +5.05A
Parameter descriptions
Voltage average value [V]
The maximum voltage value [V]
The high voltage value [V]
Current average value [mA]
The maximum current value [mA]
The high current value [mA]
DVM Measured Voltage average value [V]
Active power [W]
Voltage effective value [V]
The minimum voltage value [V]
The low voltage value [V]
Current effective value [mA]
The minimum current value [mA]
The low current value [mA]
DVM Measured Voltage effective value [V]
Power Supply Function
CH2
0 to +15.05V
0 to +9.05V
