Adjust channel vertical position
When pressing the [Knob] soft key to select the "Volt" or "Ampe" or "DVM",
rotate the Knob to upward or downward move the waveform of
voltage/current/DVM, and display the difference between the grounding level
and vertical center of each channel value under the screen.

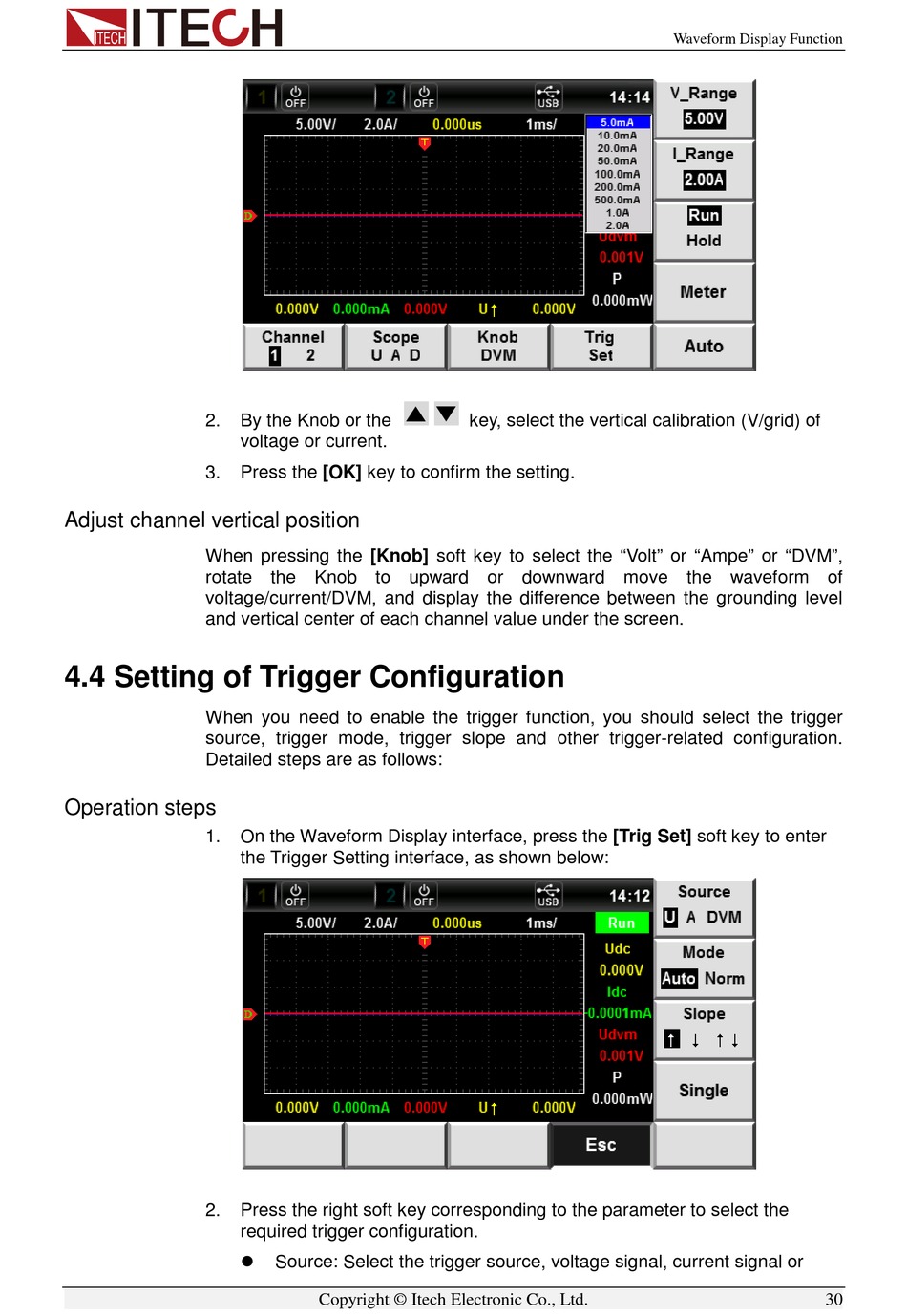

4.4 Setting of Trigger Configuration

When you need to enable the trigger function, you should select the trigger
source, trigger mode, trigger slope and other trigger-related configuration.
Detailed steps are as follows:
Operation steps
1.
2.
By the Knob or the
voltage or current.
Press the [OK] key to confirm the setting.
On the Waveform Display interface, press the [Trig Set] soft key to enter
the Trigger Setting interface, as shown below:
Press the right soft key corresponding to the parameter to select the
required trigger configuration.

Source: Select the trigger source, voltage signal, current signal or
Copyright © Itech Electronic Co., Ltd.
key, select the vertical calibration (V/grid) of
Waveform Display Function
