1.4 Introduction of Interface Display Information

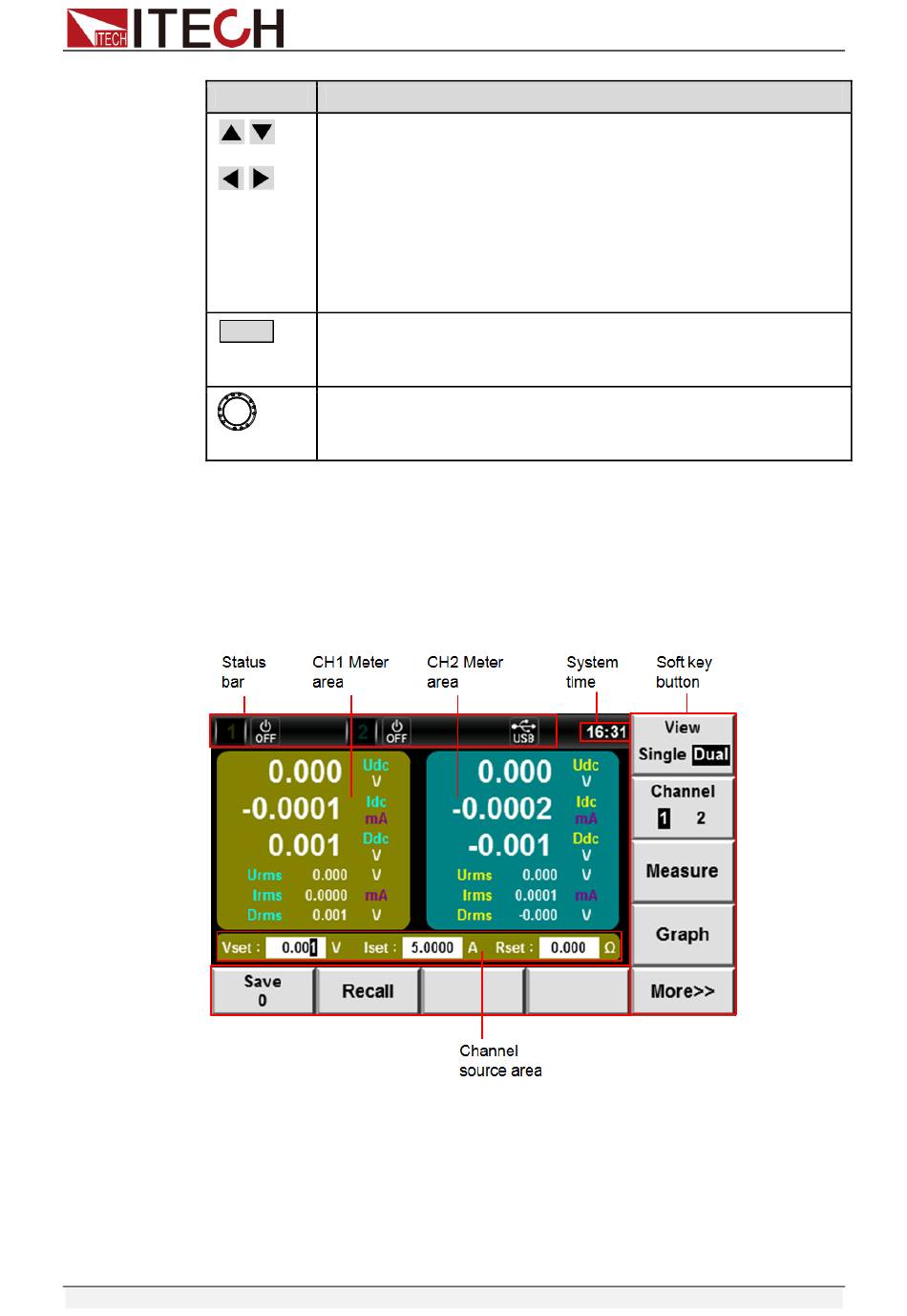

Home interface
After IT6412 power supply is turned on, the power supply function interface is
displayed as follows.
Menu configuration interface
Press the [Menu] soft key to enter the Menu configuration interface which
comprises 7 functional icons. You can select these functional icons by the arrow
keys or knob and press OK to confirm. The Menu configuration interface is
shown as follows.
Name and function
Up/Down key and Left/Right key
Menu Edit: the programming items can be rolled by operating
the Up/Down key. Prompts of corresponding options are
displayed on the right and options can be selected through the
soft key.
Digit Edit: the programming items can be rolled by operating the
Up/Down key. The digit to be edited is selected by operating the
Left/Right key or through the knob. Carrying can be completed
automatically.
Soft key The contents on the left of the key and the menu
function displayed above the key on the display screen may be
subject to changes.
Knob key, used for setting the value indicated by the cursor,
selecting the voltage and current range, adjusting the waveform,
etc.
