3.2 Setting of Measurement Function and Interface
Display
The 4.3'' colorful high-resolution TFT LCD and dual-channel function of the
IT6412 power supply enable you a clear and convenient experience. IT6412 is
provided with Single (Single-channel display) and Dual (Dual-channel display).
The User can customize the parameter types and display sequences.
Taking Single (Single-channel display) as an example, the interface requires 4
parameters in the large font form: valid voltage, valid current, active power and
power factor. Operating procedures are as below:
Operation steps
1.
2.
3.
4.
In the "Source" interface, press the right [Channel 1/2] soft key to select
configuring channel CH1.
Press the [View(Single/Dual)] soft key to select Single-channel display
mode. 10 measurement parameters can be displayed in total, 4 of which

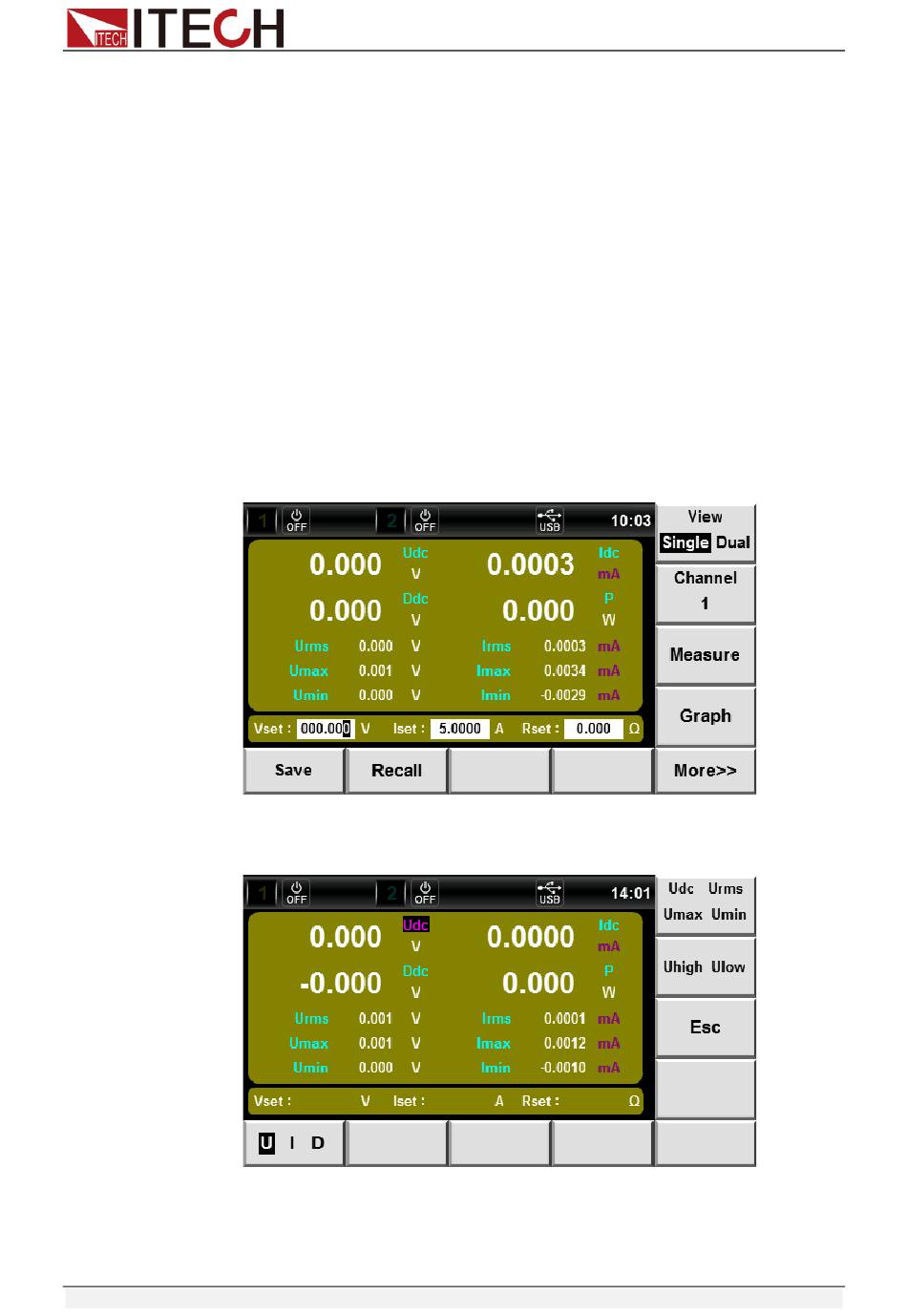

are displayed in an amplified manner. See the following figure.
Press the [Measure] soft key to select measurement functions and
configure interface display information.
Press the [U I D] soft key to select the measurement function. For example,
when the [U I D] key is pressed once, the displayed measurement function
will be switched once in the U/I/D sequence. Different measurement
parameters are displayed when different functions are selected.
