Product Overview; Overview - H3C WX3024E Installation Manual

Product overview

Overview

The H3C WX3024E wireless switch incorporates the functions of WLAN access controllers and Gigabit
Ethernet switches. The WX3024E wireless switch provides Gigabit ports, support power over Ethernet
plus (PoE+) and 802.1 1a/b/g/n access points (APs), and has a maximum output power of 30 W per
port. Together with H3C fit APs, the WX3024E can implement wireless LAN (WLAN) deployment and
provide many switching features.
The dimensions and weight of the WX3024E are as follows:
• Dimensions (H × W × D)—43.6 × 440 × 429 mm (1.7 × 17.3 × 16.9 in)
Weight—7.2 kg (15.87 lb)
•
The WX3024E provides twenty-four 10/100/1000Base-T Ethernet ports, four 1000Base-X SFP ports,
and one console port on its front panel.

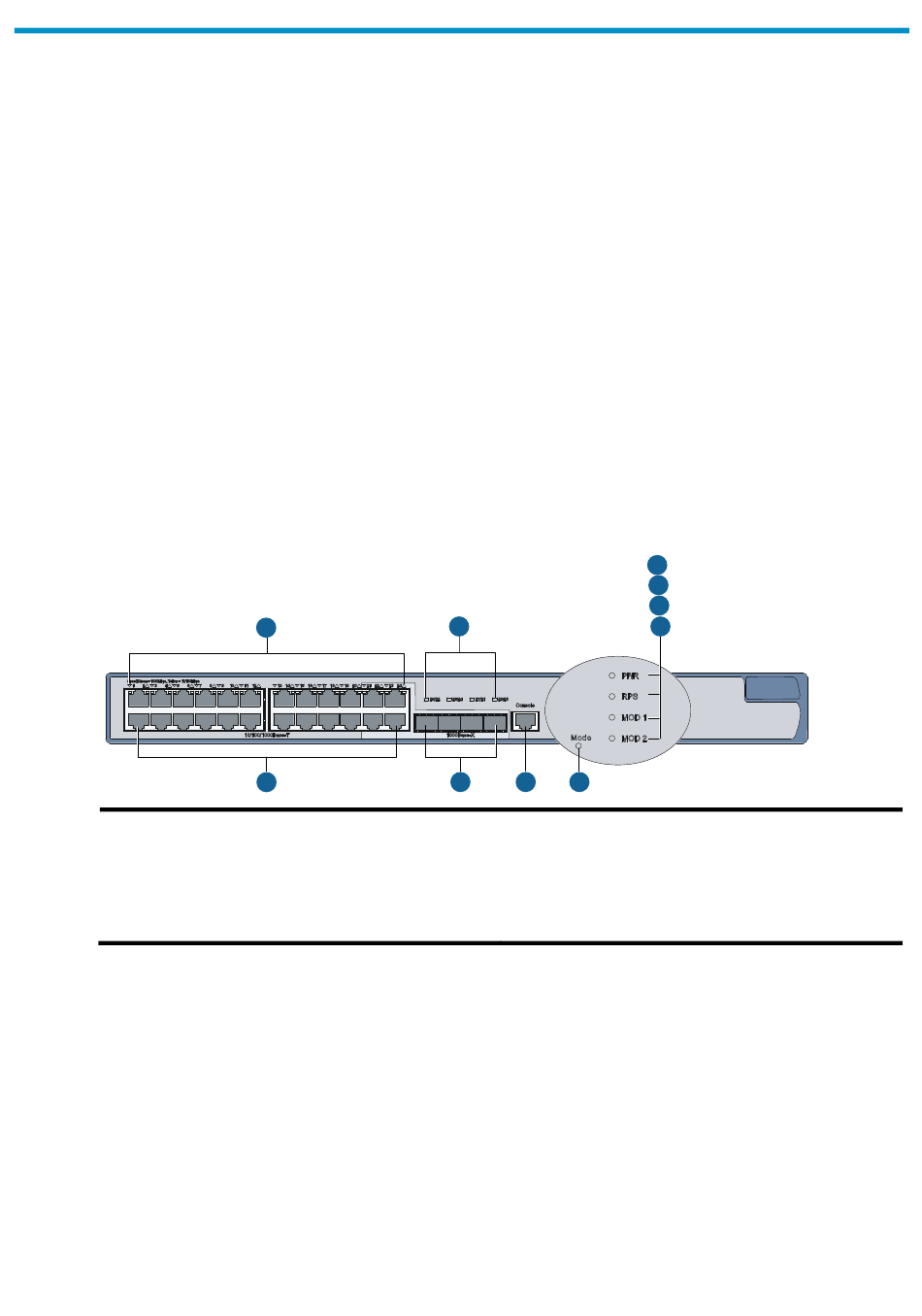

Figure 1 Front panel of the WX3024E
(1) 10/100/1000 Base-T Ethernet port LEDs
(3) Status LED (PWR)
(5) Expansion slot LED (MOD1)
(7) PoE/PoE+ LED (Mode)
(9) 1000Base-X SFP ports
The WX3024E provides an AC power receptacle, a DC power receptacle, and two expansion slots for
10 GE interface cards on its rear panel.
1
10
2
9 8 7
(2) 1000Base-X SFP port LEDs
(4) RPS LED (RPS)
(6) Expansion slot LED (MOD2)
(8) Console port
(10) 10/100/1000 Base-T Ethernet ports
1
3
4
5
6
