General Specifications; Standard Pc Functions; Power Environment - Advantech EPC-U2117 User Manual

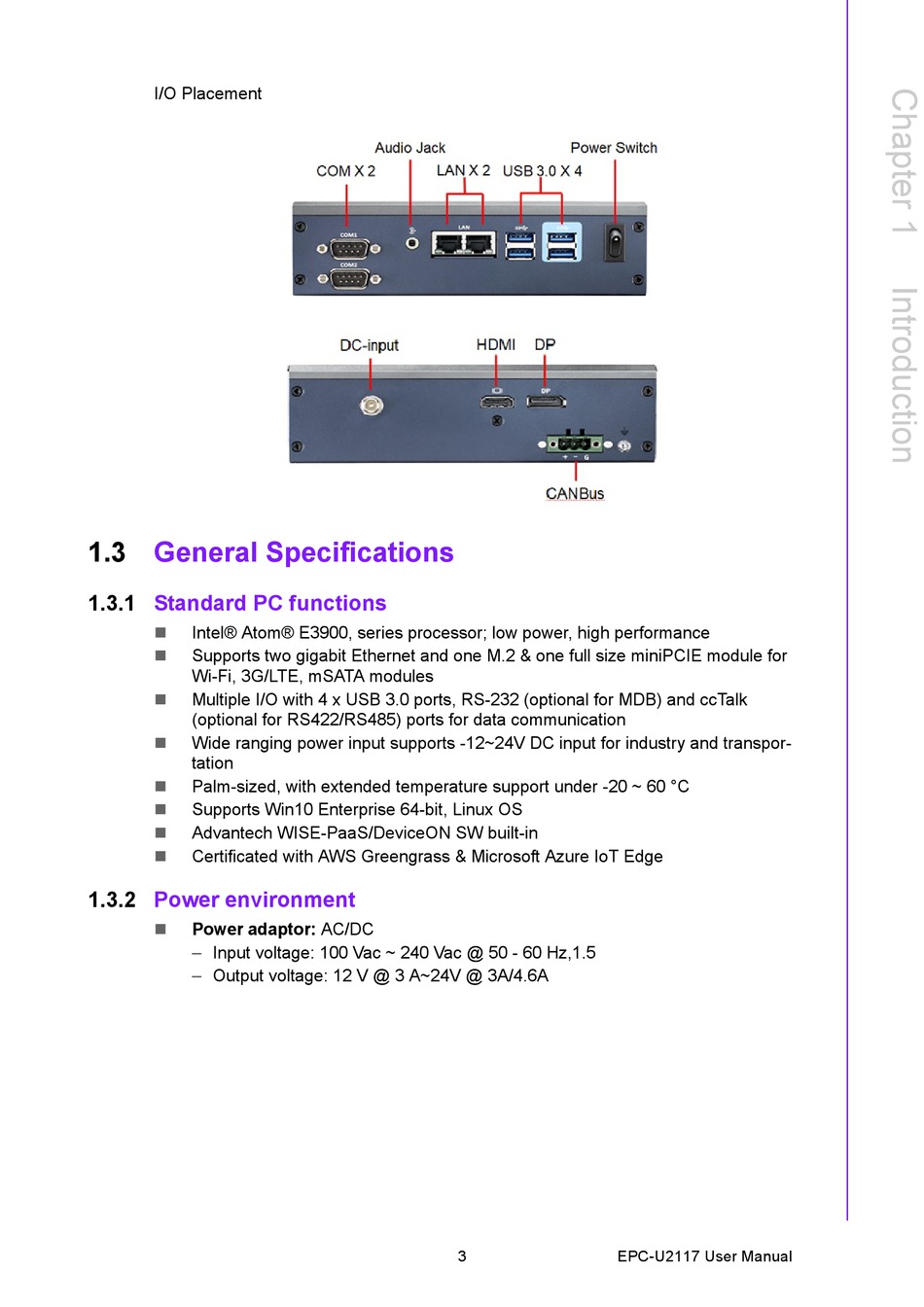

I/O Placement
1.3

General Specifications

1.3.1

Standard PC functions

 Intel® Atom® E3900, series processor; low power, high performance
 Supports two gigabit Ethernet and one M.2 & one full size miniPCIE module for
Wi-Fi, 3G/LTE, mSATA modules
 Multiple I/O with 4 x USB 3.0 ports, RS-232 (optional for MDB) and ccTalk
(optional for RS422/RS485) ports for data communication
 Wide ranging power input supports -12~24V DC input for industry and transpor-
tation
 Palm-sized, with extended temperature support under -20 ~ 60 °C
 Supports Win10 Enterprise 64-bit, Linux OS
 Advantech WISE-PaaS/DeviceON SW built-in
 Certificated with AWS Greengrass & Microsoft Azure IoT Edge
1.3.2

Power environment

 Power adaptor: AC/DC
– Input voltage: 100 Vac ~ 240 Vac @ 50 - 60 Hz,1.5
– Output voltage: 12 V @ 3 A~24V @ 3A/4.6A
3 EPC-U2117 User Manual
