1.1

Overview

The Advantech EP-U2117 is a palm-sized system using the latest Intel Atom E3900
processor technology to deliver a 30% CPU performance enhancement and a 45%
graphics performance boost. EPC-U2117 is designed with dual display output, multi-
ple I/O, and wide ranging 12-24V DC power inputs. It targets smart vending
machines, digital signage, smart kiosks, and more. EPC-U2117 is compatible with
Microsoft Windows 10 IoT Enterprise and Linux OS. EPC-U2117 has Advantech's
WISE-PaaS DeviceOn intelligent software integrated for remote system monitoring
and management.
Benefits:
 Palm-size embedded system with CE/FCC/CCC/BSMI certification
 Fanless, wide-temperature operation with high performance and flexibility
 Supports 12V ~ 24V wide voltage DC input
 One-stop integrated solution: Integrated ultra compact motherboard, chassis
peripherals and software
 RS-232, RS-422/485, ccTalk, MDB, CANBus dedicated I/O design for smart
kiosks and vending machines
 Dimensions: 170 x 117 x 52.6 mm
1.2

System Configuration

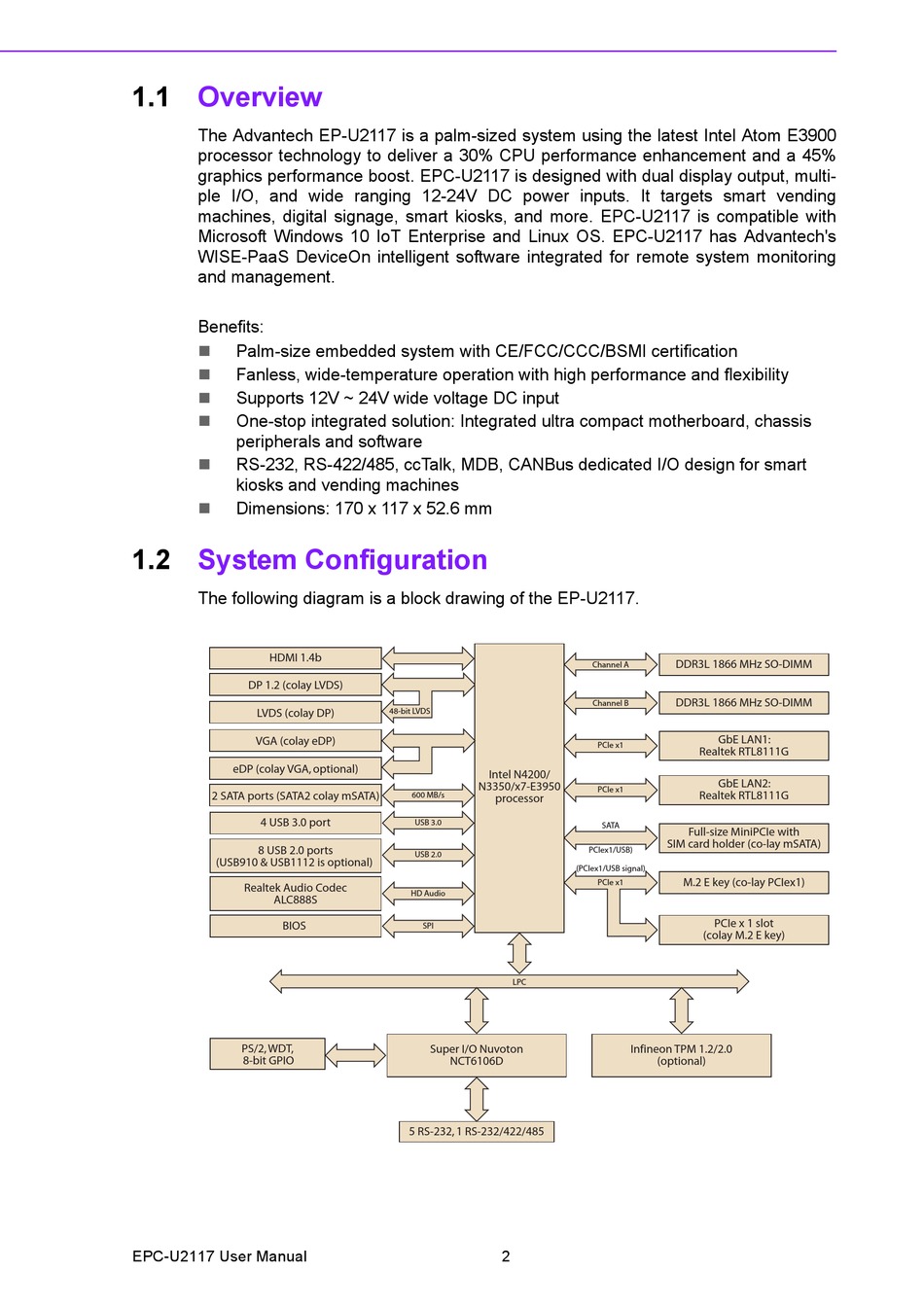

The following diagram is a block drawing of the EP-U2117.
HDMI 1.4b
DP 1.2 (colay LVDS)
LVDS (colay DP)
VGA (colay eDP)
eDP (colay VGA, optional)
2 SATA ports (SATA2 colay mSATA)
4 USB 3.0 port
8 USB 2.0 ports
(USB910 & USB1112 is optional)
Realtek Audio Codec
ALC888S
BIOS
PS/2, WDT,
8-bit GPIO
EPC-U2117 User Manual
48-bit LVDS
Intel N4200/
N3350/x7-E3950
600 MB/s
processor
HD Audio
SPI
LPC
Super I/O Nuvoton
NCT6106D
5 RS-232, 1 RS-232/422/485
2
DDR3L 1866 MHz SO-DIMM
Channel A
DDR3L 1866 MHz SO-DIMM
Channel B
GbE LAN1:
PCIe x1
Realtek RTL8111G
GbE LAN2:
PCIe x1
Realtek RTL8111G
SATA
Full-size MiniPCIe with
SIM card holder (co-lay mSATA)
PCIex1/USB)
(PCIex1/USB signal)
M.2 E key (co-lay PCIex1)
PCIe x1
PCIe x 1 slot
(colay M.2 E key)
Infineon TPM 1.2/2.0
(optional)
